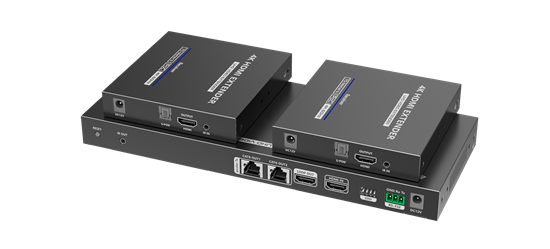

LENKENG 1-In-2-Out 4K@60Hz HDMI Extender. 1x HDMI in & 2x RJ45 out.
1-In-2-Out 4K@60Hz HDMI Extender. 1x HDMI 2x RJ45 out Compatible w/ CAT6/6a/7 Cables
- Brand: Lenkeng
- Category: Audio & Video
- SKU: LKV822P
- MPN: LKV822P
LenkengLENKENG 1-In-2-Out 4K@60Hz HDMI Extender. 1x HDMI in & 2x RJ45 out.
Overview
LENKENG 1-In-2-Out 4K@60Hz HDMI Extender. 1x HDMI in & 2x RJ45 out. Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 2x Rx.
Specifications
EDID
| EDID | Support EDID passthrough and EDID switch |
|---|
RS-232
| RS-232 | Support RS-232 command control |
|---|
Housing
| Housing | TX: Iron, RX: Aluminium alloy material+crystal panel |
|---|
Protection
| Protection | ESD protection, surge protection, lightning protection |
|---|
Resolution
| Resolution | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz |
|---|
HDMI signal
| HDMI signal | HDMI 2.0 compatible with HDCP 2.2 |
|---|
IR pass back
| IR pass back | Support IR pass back, Support 20-60khz IR devices |
|---|
HDMI LOOP OUT
| HDMI LOOP OUT | Support up to 4K@60Hz loop output |
|---|
Power consumption
| Power consumption | TX<13W RX<4W |
|---|
Transport protocol
| Transport protocol | ipcolor |
|---|
Storage Temperature
| Storage Temperature | -30°C~70°C |
|---|
Working Temperature
| Working Temperature | -20°C~60°C |
|---|
Transmission Distance
| Transmission Distance | CAT6/6A/7≤70m |
|---|
Dimensions (L×W×H mm)
| Dimensions (L×W×H mm) | TX: 272.0(L) x 96.5(W) x 23.0(H) mm, RX: 75.0(L) x 80.0(W) x 18.0(H)mm |
|---|
Humidity (no condensation)
| Humidity (no condensation) | 0%~90% |
|---|
$649.74inc GST
