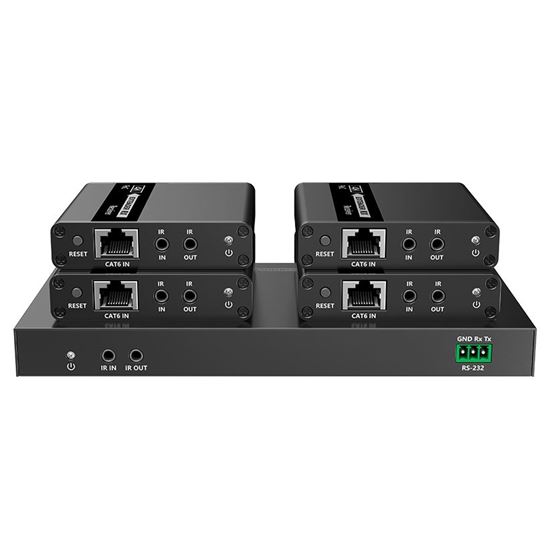

LENKENG 1-In-4-Out 4K@30Hz HDMI Extender. 1x HDMI in & 4x RJ45 out.
1-In-4-Out 4K@30Hz HDMI Extender. 1x HDMI 4x RJ45 out Compatible w/ CAT6/6a/7 Cables
- Brand: Lenkeng
- Category: Audio & Video
- SKU: LKV724P
- MPN: LKV724P
LenkengLENKENG 1-In-4-Out 4K@30Hz HDMI Extender. 1x HDMI in & 4x RJ45 out.
Overview
LENKENG 1-In-4-Out 4K@30Hz HDMI Extender. 1x HDMI in & 4x RJ45 out. Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 4x Rx.
Specifications
Input
| Input | HDMI IN x1, DC2.1 x1, 3.5mm jack x1 (IR) |
|---|
Output
| Output | HDMI OUTx1, RJ45 x4, 3.5mm jack x1 (IR) |
|---|
Weight
| Weight | TX: 435g, RX: 160gx4 |
|---|
Housing
| Housing | TX: Iron, RX: Aluminium alloy material+crystal panel |
|---|
Splitter
| Splitter | 1 input, 4 output |
|---|
Protection
| Protection | Lightning protection, surge protection, ESD protection |
|---|
Power supply
| Power supply | TX: DC 12V/2A |
|---|
Audio support
| Audio support | PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH |
|---|
Video support
| Video support | 800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 4K@24/25/30Hz |
|---|
HDMI connector
| HDMI connector | Type A 19 Pins, Female |
|---|
RS-232 Control
| RS-232 Control | 3 Pin: GND/RxD/TxD, follow RS-232 levels; Baud rate 9600 |
|---|
Input TMDS signal
| Input TMDS signal | 0.7~1.2Vp-p |
|---|
Power consumption
| Power consumption | TX: 10W, RX: 2.5W |
|---|
Relative humidity
| Relative humidity | 0%~90%(no condensation) |
|---|
Storage temperature
| Storage temperature | -30°C~70°C |
|---|
Transmission medium
| Transmission medium | CAT6/CAT6A/CAT7 |
|---|
Dimensions (LxWxH mm)
| Dimensions (LxWxH mm) | TX: 191.5(L) x 96.5(W) x 19.0(H) mm, RX: 80.0(L) x 75.0(W) x 18.0(H) mm |
|---|
Operation temperature
| Operation temperature | -20°C~60°C |
|---|
Transmission distance
| Transmission distance | 1080p@60Hz≤70m, 4K@30Hz≤40m |
|---|
Network cable standard
| Network cable standard | CAT6/CAT6A/CAT7, follow IEEE-5688 standard |
|---|
Bi-directional IR passback
| Bi-directional IR passback | support |
|---|
Network cable standard (21)
| Network cable standard (21) | Mechanical |
|---|
$564.64inc GST
