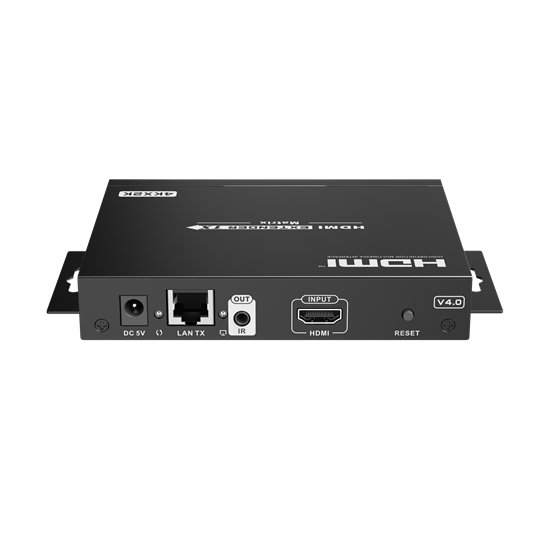

LENKENG HDbitT HDMI Video Matrix Transmitter Unit Over IP CAT5/5e/6 HDbitT HDMI Video Matrix Transmitter Unit CAT5/5e/6 Network Cable. up to 120m
Brand: Lenkeng Category: Audio & Video SKU: LKV686MATRIX-TX MPN: LKV686MATRIX-TX Home Audio & Video Lenkeng Lenkeng LENKENG HDbitT HDMI Video Matrix Transmitter Unit Over IP CAT5/5e/6 Overview Specifications Questions Overview LENKENG HDbitT HDMI Video Matrix Transmitter Unit Over IP CAT5/5e/6 Network Cable. Supports up to 120m 4K@30Hz. Multi Cast Many to Many Matrix Connection. IR Control. Rx Unit - LKV686MATRIX-RX
At a glance Housing Metal enclosure Part No. LKV683Matrix Fixedness wall-mounting kits with screws IR passback yes Power supply 5V2A Audio support PCM HDMI conector Type A 19 Pins,Female Video support 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、4K×2K@24/25/30HZ
All 31 specifications Specifications Fixedness Fixedness wall-mounting kits with screws
HDMI conector HDMI conector Type A 19 Pins,Female
Video support Video support 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、4K×2K@24/25/30HZ
InputTMDS signal InputTMDS signal 0.7~1.2Vp-p
Relative humidity Relative humidity 0～95%(no condensation)
Max. input support Max. input support up to 99 transmitters
HDMI source control HDMI source control Support IR pass back function to control source device from RX location.
Storage temperature Storage temperature —20～70℃
Input port - 1×HDMI Input port - 1×HDMI 1×RJ45, 1×3.5mm(IR)
Operation temperaure Operation temperaure 0~60℃
Dimensions(L×W×H mm) Dimensions(L×W×H mm) 164×107.6×23.6mm
Network switch required Network switch required with IGMP function
HDMI source control (16) HDMI source control (16) Support to select and switch source device input from receiver via remote control and hard button
HDMI source control (17) HDMI source control (17) Support computer control software to select and switch source device input.
Technical - Transmitter-TX Technical - Transmitter-TX Receiver-RX
IR frequance Range（KHz） IR frequance Range（KHz） 20-60KHz
Mechanical - Transmitter-TX Mechanical - Transmitter-TX Receiver-RX
Output port - 1×RJ45, 1×3.5mm(IR) Output port - 1×RJ45, 1×3.5mm(IR) 1×HDMI
LED Segment Displays - CHANNEL number LED Segment Displays - CHANNEL number CHANNEL number， RX ID
$286.34 inc GST
