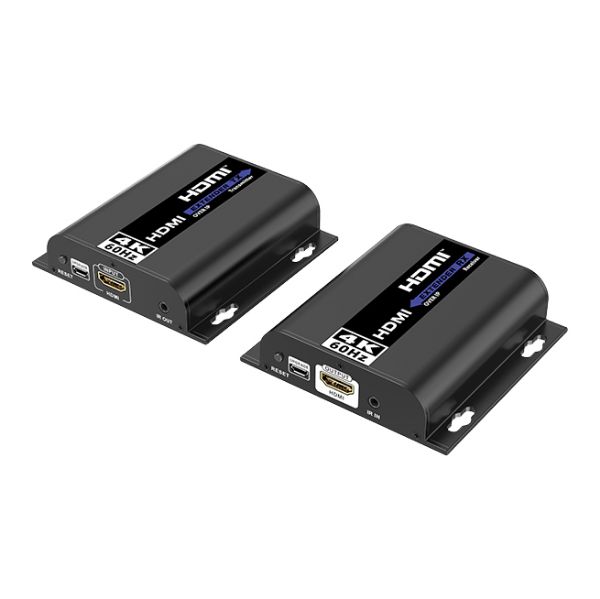

Lenkeng HDMI Extender Over IP CAT5/5e/6 Network Kit Transmitter & Receiver Kit

HDMI Extender over IP CAT5/5e/6 Network Kit Transmitter & Receiver Kit

The LENKENG LKV483-M5.0 HDMI extender is an IP-based system built on ipcolor STREAM technology, delivering high-definition, low-latency video over standard network cables. Using Cat5e, Cat6, or higher-grade Ethernet cables, it supports transmission distances up to 120m (Cat6) & resolutions up to 4096×2160@60Hz, while remaining backwards compatible with lower HD formats. The system supports one-to-one, one-to-many, many-to-one, & many-to-many connections through a gigabit switch, with up to 256 inputs & 256 outputs controllable via an APP. It also features IR pass-back for remote control & firmware upgrades via Micro USB. Designed for 24/7 operation, it includes ESD, lightning, & surge protection, making it ideal for professional AV installations such as control rooms, command centres, data centres, & enterprise environments where high-resolution, scalable, & reliable signal distribution is required.



Features:

• Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
• Supports up to 4096*2160@60Hz resolution, backwards compatible.
• Compatible with Cat5e/6 or higher-level networking cables, the transmission distance of Cat6 cable is 120 meters.
• Supports one-to-one, one-to-many, many-to-one and many-to-many connections through the gigabit switch.
• Supports IR pass-back(20~60KHz).
• Supports 256 signal source inputs and 256 signal outputs.
• Signal sources can be switched via the APP for a flexible many-to-many matrix configuration.
• Firmware upgrading via the Micro USB port.
• Lightning protection, surge protection, ESD protection.
• Supports stable 24/7 operation.
