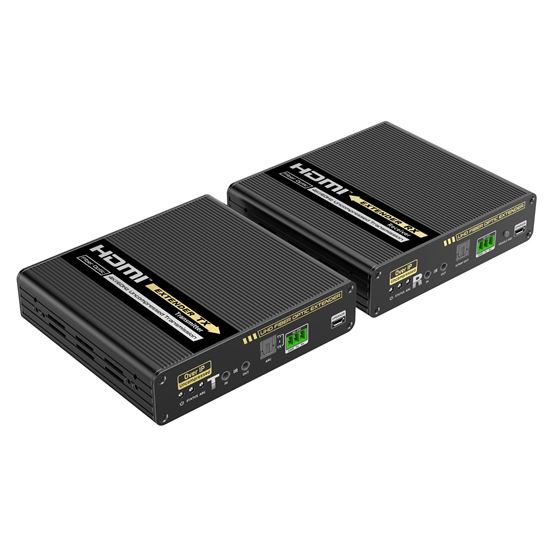

LENKENG HDMI2.0 Over Fiber Optic Extender up to 40km, over 10GB HDMI2.0 Over Fiber Optic Extender up to 40km over 10GB Ethernet. Uncompressed & Zero
Brand: Lenkeng Category: Audio & Video SKU: LKV993 MPN: LKV993 Home Audio & Video Lenkeng Lenkeng LENKENG HDMI2.0 Over Fiber Optic Extender up to 40km, over 10GB
SKU CNZ-CD-000352
MPN LKV993 Overview Specifications Questions Overview LENKENG HDMI2.0 Over Fiber Optic Extender up to 40km, over 10GB Ethernet. Uncompressed and Zero Delay Transmission. Supports HDR10, ARC Back to TX. Two way IR Control. Supports RX S/PDIF Audio Seperation
At a glance ARC Support ARC back to TX CEC Support CEC control HDR Support HDR10 EDID Support EDID passthrough Color Black Delay Zero delay RS-232 Support RS-232 passthrough and command control Weight TX: 420g RX: 420g
All 31 specifications Specifications ARC ARC Support ARC back to TX
EDID EDID Support EDID passthrough
RS-232 RS-232 Support RS-232 passthrough and command control
Material Material Aluminum alloy material + crystal panel
Dimension Dimension 123.95(L)*115.20(W)*28.00(H)mm
Protection Protection ESD protection, surge protection, lightning protection
Resolution Resolution 720P@50/60Hz、1080P@24 /25 /50/60 Hz、1080i@50 60Hz、1024*768 @60Hz、1280*768@60Hz、1280*800@60Hz、1280*960@60Hz、1280*1024 @60Hz、1440*900@60Hz、1400*1050@60Hz、1600*900@60Hz、1600*1200@60Hz、1680*1050@60Hz、1920*1080@60Hz、1920*1200@60Hz、2560*1440@60Hz、2560*1600@60Hz、3840*2160 @24/25/30/50/60/23.9 /29.9/ 59.9Hz、4096*2160 @24/25/30/50/60/23.9 /29.9/ 59.9Hz
HDMI signal HDMI signal HDMI 2.0 compatible with HDCP2.2
Audio format Audio format LPCM 7.1/DTS-HD/DTS-Audio/Dolby Digital plus/Dolby TrueHD/Dolby Digital/Dolby Atmos
HDMI loop out HDMI loop out Support TX loop out of HDMI
Connection mode Connection mode One to one/One to many/Switch cascade
Audio separation Audio separation Support RX S/PDIF audio separation
Bi-directional IR Bi-directional IR Support bi-directional IR pass back, Support 20-60khz IR devices
Storage Temperature Storage Temperature -30~70℃
Transmission method Transmission method Single mode fiber (Use with the default optical modules)
Working Temperature Working Temperature -20~60℃
Technical parameters Technical parameters LKV993
Transmission protocol Transmission protocol ipcolor
Transmission Distance Transmission Distance ≤40KM
Humidity (no condensation) Humidity (no condensation) 0~90%
SFP+ optical fiber module wavelength SFP+ optical fiber module wavelength 1270nm/1330nm
$1,304.09 inc GST
