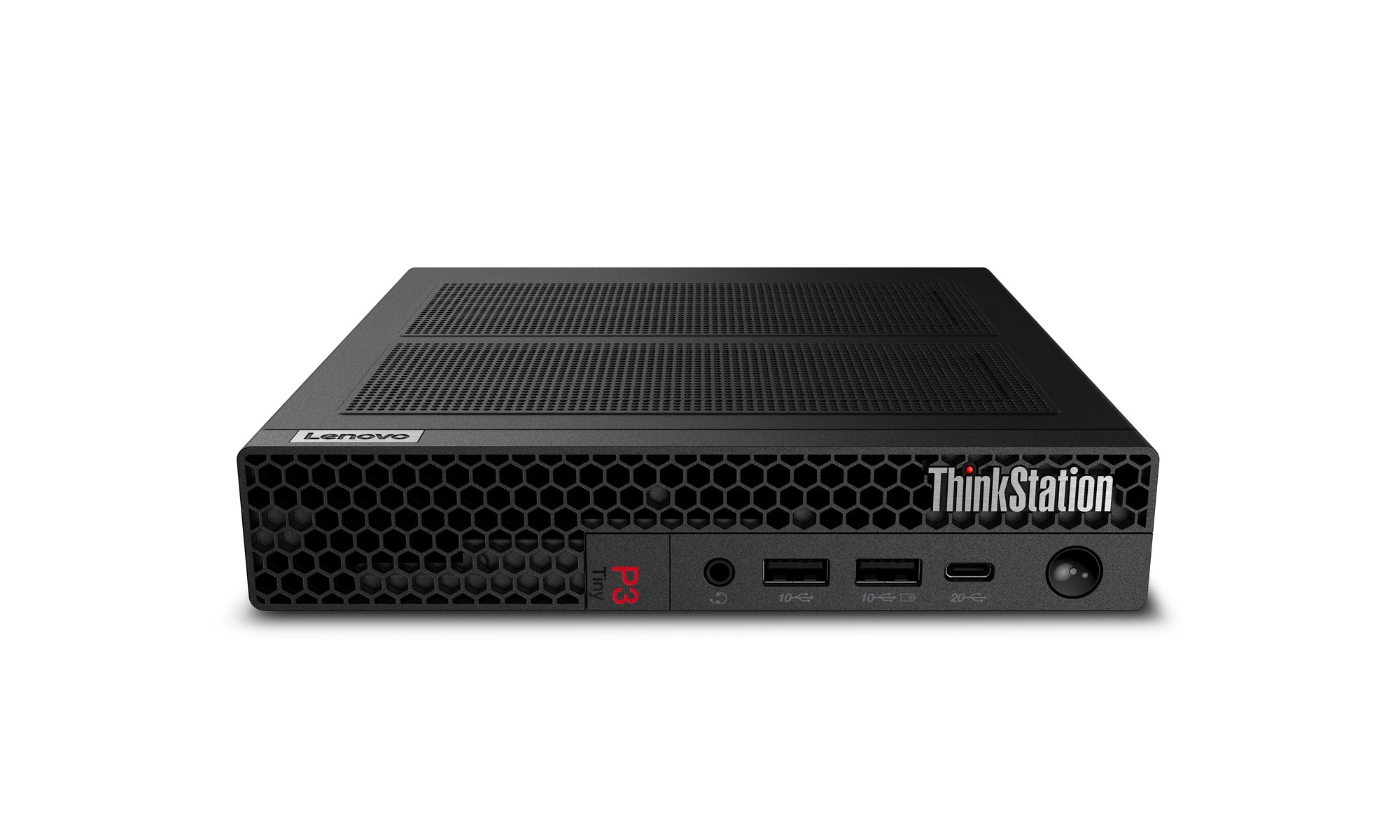

LENOVO P3 TINY G2, U7-265 VPRO, 32GB, 1TB SSD, RTX A1000 8GB, WIFI, W11P, 3YP
Computers > Workstations
- Brand: LENOVO
- Category: Workstations
- SKU: 30K5S00600
- MPN: 30K5S00600
LENOVO
Lenovo ThinkStation P3 Tiny Gen 2 Intel Core Ultra 7 265 32 GB…
- SKU
- CNZ-DD-004860
- MPN
- 30K5S00600
- Rating
- No reviews yet
−5%
Overview
The World’s Smallest Workstation
- Compact 1L design with flexible mounting options
- AI-optimized performance for demanding workflows
- Secure, durable & sustainable
- Compact 1L design with flexible mounting options
- AI-optimized performance for demanding workflows
- Secure, durable & sustainable
Key features
- Processor manufacturer: Intel
- Processor family: Intel Core Ultra 7
- Processor generation: Intel Core Ultra (Series 2)
- Processor model: 265
- Processor cores: 20
- Processor threads: 20
- Processor boost frequency: 5.3 GHz
- Performance cores: 8
- Efficient cores: 12
- Performance-core Max Turbo Frequency: 5.2 GHz
- Efficient-core Max Turbo Frequency: 4.6 GHz
- Performance-core base frequency: 2.4 GHz
- Efficient-core base frequency: 1.8 GHz
- Processor cache: 30 MB
- Processor cache type: Smart Cache
- Processor base power: 65 W
- Maximum turbo power: 182 W
- Neural processor unit (NPU): Intel AI Boost
- Sparsity support: Yes
- Windows Studio effects support: Yes
- AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
- Total processor performance up to: 33 TOPs
- NPU performance up to: 13 TOPs
- GPU performance up to: 8 TOPs
Specifications
Audio
| Audio chip | Realtek ALC233VB |
|---|---|
| Audio system | High Definition Audio |
Power
| Power supply | 330 W |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Design
| Chassis type | Mini PC |
|---|---|
| Colour name | Black |
| Volume | 1 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Non-ECC | Yes |
| Memory channels | Dual-channel |
Display
| Display included | No |
|---|
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I219-LM |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 5.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
Graphics
| Discrete graphics card | Yes |
|---|---|
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Graphics card Mini DisplayPort ports quantity | 4 |
Keyboard
| Keyboard connectivity | Wired |
|---|
Software
| Operating system architecture | 64-bit |
|---|---|
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
Processor
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 265 |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor boost frequency | 5.3 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.4 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Processor base power | 65 W |
| Maximum turbo power | 182 W |
Performance
| Motherboard chipset | Intel® Q870 |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Product type | Workstation |
Certificates
| Certification | MIL-STD-810H |
|---|
Packaging content
| Mouse included | Yes |
|---|---|
| Mouse connectivity | Wired |
| Keyboard included | Yes |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Weight & dimensions
| Width | 179 mm |
|---|---|
| Depth | 182.9 mm |
| Height | 37 mm |
| Weight | 1.4 kg |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Neural processor unit (NPU)
| Neural processor unit (NPU) | Intel AI Boost |
|---|---|
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 33 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
Questions
$4,095.14inc GST
