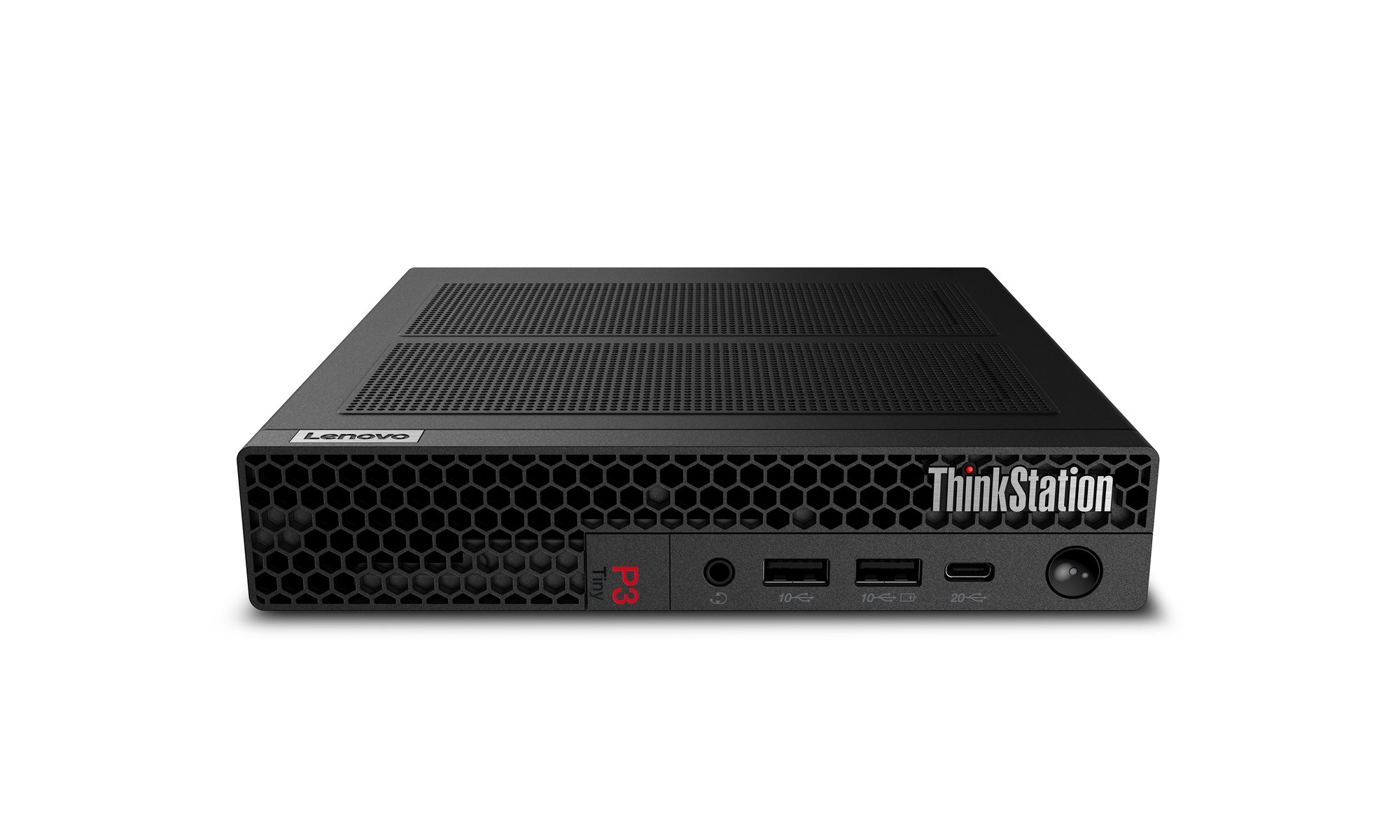

LENOVO P3 TNY U7-265 16G 1TB RTX A1000 W11P 3YP
ThinkStation P3 TINY Ultra7-265 vPro 16G DDR5 5600MHz SO-DIMM NON ECC 1TB SSD NVIDIA RTX A1000 WIFI7-BT5 W11P 3YP
- Brand: LENOVO
- Category: Desktop PCs
- SKU: 6644138
- MPN: 30K5S00500
LENOVOLenovo ThinkStation P3 Tiny Gen 2 Intel Core Ultra 7 265 16 GB…
Overview
The World’s Smallest Workstation
- Compact 1L design with flexible mounting options
- AI-optimized performance for demanding workflows
- Secure, durable & sustainable
Key features
- Processor manufacturer: Intel
- Processor family: Intel Core Ultra 7
- Processor generation: Intel Core Ultra (Series 2)
- Processor model: 265
- Processor cores: 20
- Processor threads: 20
- Processor boost frequency: 5.3 GHz
- Performance cores: 8
- Efficient cores: 12
- Performance-core Max Turbo Frequency: 5.2 GHz
- Efficient-core Max Turbo Frequency: 4.6 GHz
- Performance-core base frequency: 2.4 GHz
- Efficient-core base frequency: 1.8 GHz
- Processor cache: 30 MB
- Processor cache type: Smart Cache
- Processor base power: 65 W
- Maximum turbo power: 182 W
- Copilot+ PC: No
- Neural processor unit (NPU): Intel AI Boost
- Sparsity support: Yes
- Windows Studio effects support: Yes
- AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
- Total processor performance up to: 33 TOPs
- NPU performance up to: 13 TOPs
Specifications
Audio
| Audio chip | Realtek ALC233VB |
|---|
| Audio system | High Definition Audio |
|---|
Power
| Power supply | 330 W |
|---|
| Power supply input voltage | 100 - 240 V |
|---|
| Power supply input frequency | 50/60 Hz |
|---|
Design
| Chassis type | Mini PC |
|---|
| Colour name | Black |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Product colour | Black |
|---|
Memory
| Internal memory | 16 GB |
|---|
| Maximum internal memory | 128 GB |
|---|
| Internal memory type | DDR5-SDRAM |
|---|
| Memory layout (slots x size) | 1 x 16 GB |
|---|
| Memory slots | 2x SO-DIMM |
|---|
| Memory clock speed | 5600 MHz |
|---|
| Non-ECC | Yes |
|---|
| Memory channels | Dual-channel |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| LAN controller | Intel® I219-LM |
|---|
| Wi-Fi | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
|---|
| WLAN controller manufacturer | Intel |
|---|
| WLAN controller model | Intel Wi-Fi 7 BE200 |
|---|
| Antenna type | 2x2 |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.4 |
|---|
Storage
| Total storage capacity | 1 TB |
|---|
| Storage media | SSD |
|---|
| Optical drive type | No |
|---|
| Number of storage drives installed | 1 |
|---|
| Total SSDs capacity | 1 TB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 1 TB |
|---|
| SSD interface | PCI Express 4.0 |
|---|
| NVMe | Yes |
|---|
| SSD form factor | M.2 |
|---|
| M.2 SSD size | 2280 (22 x 80 mm) |
|---|
Graphics
| Discrete graphics card | Yes |
|---|
| Discrete GPU manufacturer | NVIDIA |
|---|
| On-board graphics card | Yes |
|---|
| Discrete graphics card model | NVIDIA RTX A1000 |
|---|
| Discrete graphics card memory | 4 GB |
|---|
| Discrete graphics memory type | GDDR6 |
|---|
| Number of discrete graphics cards | 1 |
|---|
| On-board GPU manufacturer | Intel |
|---|
| On-board graphics card family | Intel® Graphics |
|---|
| On-board graphics card model | Intel® Graphics |
|---|
| Graphics card Mini DisplayPort ports quantity | 4 |
|---|
Keyboard
| Keyboard connectivity | Wired |
|---|
Software
| Operating system architecture | 64-bit |
|---|
| Operating system language | English |
|---|
| Operating system installed | Windows 11 Pro |
|---|
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel Core Ultra 7 |
|---|
| Processor generation | Intel Core Ultra (Series 2) |
|---|
| Processor model | 265 |
|---|
| Processor cores | 20 |
|---|
| Processor threads | 20 |
|---|
| Processor boost frequency | 5.3 GHz |
|---|
| Performance cores | 8 |
|---|
| Efficient cores | 12 |
|---|
| Performance-core Max Turbo Frequency | 5.2 GHz |
|---|
| Efficient-core Max Turbo Frequency | 4.6 GHz |
|---|
| Performance-core base frequency | 2.4 GHz |
|---|
| Efficient-core base frequency | 1.8 GHz |
|---|
| Processor cache | 30 MB |
|---|
| Processor cache type | Smart Cache |
|---|
| Processor base power | 65 W |
|---|
| Maximum turbo power | 182 W |
|---|
Performance
| Motherboard chipset | Intel® Q870 |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Product type | Workstation |
|---|
Certificates
| Certification | MIL-STD-810H |
|---|
Packaging content
| Mouse included | Yes |
|---|
| Mouse connectivity | Wired |
|---|
| Keyboard included | Yes |
|---|
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
|---|
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
|---|
| DisplayPorts quantity | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Combo headphone/mic port | Yes |
|---|
Weight & dimensions
| Width | 179 mm |
|---|
| Depth | 182.9 mm |
|---|
| Height | 37 mm |
|---|
| Weight | 1.4 kg |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|
| Storage temperature (T-T) | -40 - 60 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80% |
|---|
| Storage relative humidity (H-H) | 10 - 90% |
|---|
| Operating altitude | 0 - 3048 m |
|---|
| Non-operating altitude | 0 - 12192 m |
|---|
Neural processor unit (NPU)
| Copilot+ PC | No |
|---|
| Neural processor unit (NPU) | Intel AI Boost |
|---|
| Sparsity support | Yes |
|---|
| Windows Studio effects support | Yes |
|---|
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
|---|
| Total processor performance up to | 33 TOPs |
|---|
| NPU performance up to | 13 TOPs |
|---|
| GPU performance up to | 8 TOPs |
|---|
