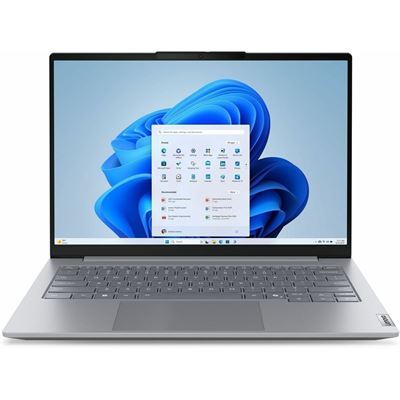

Lenovo ThinkBook 14 G8 IAL Intel Core Ultra 5 225U Laptop 35.6 cm…

Our SKU
MPN
Barcode
Rating: No reviews yet

LENOVO THINKBOOK 14 G8 14" WUXGA, U5-225U, 16GB (8+8) DDR5, 512GB, WI-FI 6E, TB4, W11P, 1YO — LENOVO

Overview

Lenovo ThinkBook 14 G8 IAL. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 225U. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Grey. Weight: 1.36 kg

Key features

Colour name: Arctic grey
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Display diagonal: 35.6 cm (14")
Display resolution: 1920 x 1200 pixels
Touchscreen: No
HD type: WUXGA
Panel type: IPS
LED backlight: Yes
Native aspect ratio: 16:10
Anti-glare screen: Yes
Display brightness: 300 cd/m²
RGB colour space: NTSC
Colour gamut: 45%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 1000:1
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 225U
Processor cores: 12
Processor threads: 14

At a glance

Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
AC adapter power	65 W
AC adapter frequency	50/60 Hz

All 142 specifications

Specifications

Audio

Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Power

AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Camera

Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Design

Colour name	Arctic grey
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Memory

Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory channels	Dual-channel

Battery

Battery technology	Lithium Polymer (LiPo)
Battery capacity	45 Wh
Battery life (max)	9.2 h
Continuous video playback time	14.2 h
Fast charging	Yes
Fast charging time (50%)	30 min

Display

Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
RGB colour space	NTSC
Colour gamut	45%
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1

Network

Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Mobile network connection	No
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
WWAN	Not installed

Storage

Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2242 (22 x 42 mm)
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Keyboard

Pointing device	Touchpad
Numeric keypad	No
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Keyboard language	Italian

Security

Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, Power on, Supervisor

Software

Operating system architecture	64-bit
Operating system language	English, US English
Trial software	Office
Operating system installed	Windows 11 Pro
Bundled software	Office Trial

Processor

Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 2)
Processor model	225U
Processor cores	12
Processor threads	14
Processor boost frequency	4.8 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.4 GHz
Performance-core base frequency	1.5 GHz
Efficient-core base frequency	1.3 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	12 MB
Processor base power	15 W
Maximum turbo power	57 W

Performance

Motherboard chipset	Intel SoC

Certificates

Compliance certificates	RoHS
Certification	ErP Lot 6/26 TCO Certified 10.0 MIL-STD-810H TÜV Rheinland® Low Blue Light (Software Solution)

Sustainability

Sustainability certificates	ENERGY STAR, EPEAT Gold

Packaging content

AC adapter included	Yes

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Weight & dimensions

Width	313.5 mm
Depth	224 mm
Height	17.5 mm
Weight	1.36 kg

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Neural processor unit (NPU)

Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

LENOVO THINKBOOK 14 G8 14" WUXGA, U5-225U, 16GB (8+8) DDR5, 512GB, WI-FI 6E, TB4, W11P, 1YO
