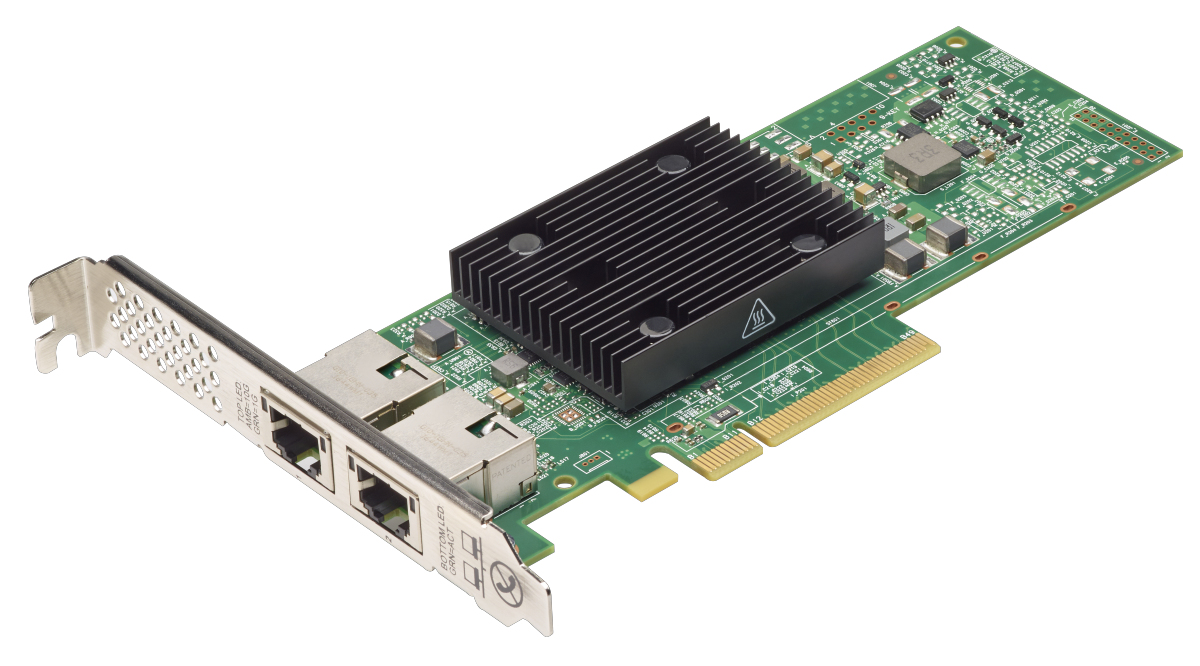

LENOVO THINKSYSTEM BROADCOM NX-E PCIE 10GB 2-PORT BASE-T ETHERNET ADAPTER
Servers & Storage > Servers
- Brand: LENOVO
- Category: Servers
- SKU: 7ZT7A00496
- MPN: 7ZT7A00496
−14%
Overview
The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring.
This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.
The following figure shows the ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter.
This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.
The following figure shows the ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter.
Key features
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 2
- Maximum data transfer rate: 10000 Mbit/s
- Networking standards: IEEE 802.3ab, IEEE 802.3an
- Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
- Cabling technology: 10GBase-T
- Jumbo frames support: Yes
- iSCSI support: Yes
- Maximum operating distance: 100 m
- Product colour: Black, Green
- Internal: Yes
- Certification: CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Width: 69 mm
- Depth: 168 mm
- Height: 15 mm
- Harmonized System (HS) code: 85176990
Specifications
Design
| Product colour | Black, Green |
|---|---|
| Internal | Yes |
| Certification | CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge |
Network
| Maximum data transfer rate | 10000 Mbit/s |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3an |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Maximum operating distance | 100 m |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
Weight & dimensions
| Width | 69 mm |
|---|---|
| Depth | 168 mm |
| Height | 15 mm |
Operational conditions
| Storage temperature (T-T) | -40 - 65 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
