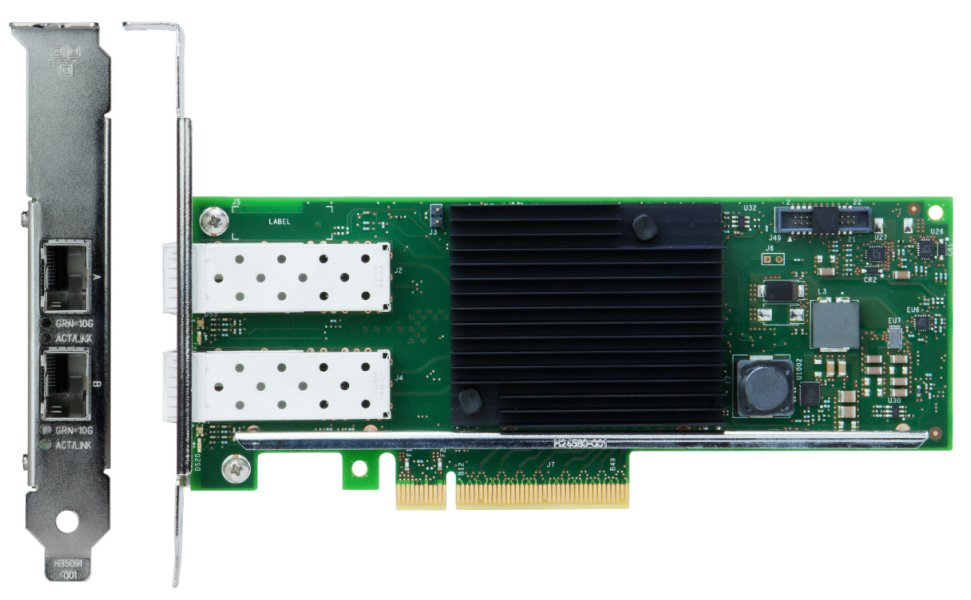

LENOVO THINKSYSTEM X710-DA2 PCIE 10GB 2-PORT SFP+ ETHERNET ADAPTER

Servers & Storage > Servers

  • Brand: LENOVO
  • Category: Servers
  • SKU: 7ZT7A00537
  • MPN: 7ZT7A00537
LENOVO

Lenovo 7ZT7A00537 network card Internal Fiber 10000 Mbit/s

Our SKU
MPN
Barcode
−14%
LENOVO THINKSYSTEM X710-DA2 PCIE 10GB 2-PORT SFP+ ETHERNET ADAPTER — LENOVO

Overview

The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.

The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems.

Key features

  • Connectivity technology: Wired
  • Host interface: PCI Express
  • Interface: Fiber
  • Fiber ports quantity: 2
  • Fiber optic connector: SFP+
  • Maximum data transfer rate: 10000 Mbit/s
  • Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ae, IEEE 802.3x
  • Wake-on-LAN ready: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9728
  • VLAN tagging: Yes
  • iSCSI support: Yes
  • Component for: Server
  • Product colour: Black, Green
  • Internal: Yes
  • Certification: EN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1
  • Compatible operating systems: Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi) VMware vSphere 6.5 (ESXi)
  • Operating temperature (T-T): 0 - 55 °C
  • Storage temperature (T-T): -20 - 65 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 80%
  • Operating altitude: 0 - 2134 m
  • Width: 15 mm
  • Depth: 167 mm

Specifications

Design

Component forServer
Product colourBlack, Green
InternalYes
CertificationEN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1

Network

Maximum data transfer rate10000 Mbit/s
Networking standardsIEEE 802.1Q, IEEE 802.1ad, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ae, IEEE 802.3x
Wake-on-LAN readyYes
Jumbo frames supportYes
Jumbo frames9728
VLAN taggingYes
iSCSI supportYes

Logistics data

Harmonized System (HS) code85176990

Other features

Flow control supportYes
Intel® Virtualization Technology (Intel® VT)Yes
Intel Virtual Machine Device Queues (VMDq)Yes
Intelligent OffloadsYes
Intel Data Direct I/O TechnologyYes
Receive Side Scaling (RSS)Yes

Packaging data

Quantity per pack1 pc(s)

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceFiber
Fiber ports quantity2
Fiber optic connectorSFP+

System requirements

Compatible operating systemsMicrosoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi) VMware vSphere 6.5 (ESXi)

Weight & dimensions

Width15 mm
Depth167 mm
Height69 mm

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 80%
Operating altitude0 - 2134 m

Questions

$1,453.59inc GST
