MAXHUB MTR Kit X-Core Kit +S07

MAXHUB MTR Room Kit, X-Core Kit +S07

  • Brand: Maxhub
  • Category: Specials
  • SKU: MHXT10VB
  • MPN: XT10-VB
Maxhub

MAXHUB XT10-VB KIT video conferencing system 12 MP Ethernet LAN…

SKU
CNZ-DS-003967
MPN
XT10-VB

Overview

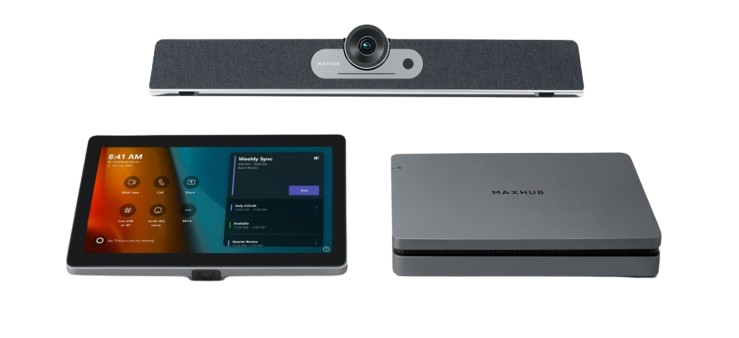

MAXHUB XT10-VB Kit builds upon the XCore Kit with an additional Videobar UC S07 , showcasing its versatility in adapting to user needs. Designed with scalability in mind, it accommodates the evolving needs of multiple devices with simplified frontline one-cable deployment.

Key features

  • Number of cameras: 1
  • Product colour: Black, Grey
  • Product type: Group video conferencing system
  • Signal-to-Noise Ratio (SNR): 75 dB
  • HD type: WUXGA
  • Video formats supported: H.264, MJPG, YUY2
  • Built-in speaker(s): Yes
  • Frequency range: 150 - 18000 Hz
  • Noise reduction: Yes
  • RMS rated power: 11 W
  • Internal memory: 8 MB
  • Internal memory type: DDR4
  • Flash memory: 3200 MB
  • Storage media type: SSD
  • Total storage capacity: 128 GB
  • HDMI ports quantity: 2
  • HDMI output ports quantity: 1
  • HDMI input ports quantity: 1
  • USB 2.0 ports quantity: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 4
  • Ethernet LAN (RJ-45) ports: 1
  • Headphone outputs: 1
  • Line-out: Yes
  • Ethernet LAN: Yes

Specifications

Audio

Built-in speaker(s)Yes
Frequency range150 - 18000 Hz
Noise reductionYes
RMS rated power11 W

Power

Power source typeAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)90 W

Video

HD typeWUXGA
Video formats supportedH.264, MJPG, YUY2

Camera

Megapixel (approx.)12 MP
Zoom capabilityYes
Digital zoom5x
Image sensor size1/2.3"
Field of view (FOV) angle120°
Auto Focus (AF) object detectionPeople

Memory

Internal memory8 MB
Internal memory typeDDR4
Flash memory3200 MB
Storage media typeSSD
Total storage capacity128 GB

Display

Built-in displayYes
Display diagonal25.6 cm (10.1")
Display resolution1920 x 1200 pixels
TouchscreenYes
Touchscreen typeCapacitive
Display brightness300 cd/m²
Anti-glare screenYes

Network

Ethernet LANYes
Networking standardsIEEE 802.3af, IEEE 802.3at

Features

Motion sensorYes
Cable lock slotYes
Cable lock slot typeKensington

Microphone

Microphone frequency100 - 7500 Hz
Sound pressure level (max)80 dB
Number of microphone arrays6

Performance

Number of cameras1
Product colourBlack, Grey
Product typeGroup video conferencing system
Signal-to-Noise Ratio (SNR)75 dB

Computer system

Processor familyIntel® Core™ i3
Processor modeli3-1220P
Operating system installedWindows 11 IoT Enterprise SAC

Packaging content

Cables includedHDMI, Power
HDMI cable length1.8 m
Screws includedYes
Quick start guideYes

Ports & interfaces

HDMI ports quantity2
HDMI output ports quantity1
HDMI input ports quantity1
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity4
Ethernet LAN (RJ-45) ports1
Headphone outputs1
Line-outYes

Weight & dimensions

Width230 mm
Depth185 mm
Height41.5 mm
Weight1.36 kg
