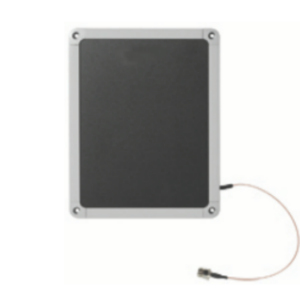

MOTOROLA ANTENNA:SLIM RFID 10.8 X 8.4 EU
ANTENNA:SLIM RFID 10.8 X 8.4 EU
- Brand: MOTOROLA
- Category: Wireless AIDC Accessories
- SKU: 2448219
- MPN: AN610-SCL71128EU
MOTOROLA
Zebra AN610 network antenna Omni-directional antenna N-type 1 dBi
- SKU
- CNZ-IM-018509
- MPN
- AN610-SCL71128EU
- Rating
- No reviews yet
−11%
Overview
The AN610 is space-saving and stylish. The outer housing is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for indoor industrial environments.
Easy to Mount
The AN610 features a simple, integrated mounting system. It stands just under one-half inch (12mm) from horizontal or vertical mounting surfaces.
Stylish Space Saver
The outer shell is sleek and discreet for any business setting but rugged enough for indoor industrial areas.
Suited For All Areas
The AN610 antenna is suited for use in wall mount, doorways, under counter, above counter as an RFID pad, on shelves, POS or end-cap displays like jewelry counter applications.
Easy to Mount
The AN610 features a simple, integrated mounting system. It stands just under one-half inch (12mm) from horizontal or vertical mounting surfaces.
Stylish Space Saver
The outer shell is sleek and discreet for any business setting but rugged enough for indoor industrial areas.
Suited For All Areas
The AN610 antenna is suited for use in wall mount, doorways, under counter, above counter as an RFID pad, on shelves, POS or end-cap displays like jewelry counter applications.
Key features
- Frequency band: 0.864 - 0.868 GHz
- Antenna gain level (max): 1 dBi
- Antenna type: Omni-directional antenna
- Antenna connector type: N-type
- Connector gender: Female
- Polarization: Circular polarization
- Voltage Standing Wave Ratio (VSWR): 1.4:1
- Product colour: Black
- Mounting: Ceiling/wall
- Purpose: Indoor & outdoor
- Front to back ratio: 18 dB
- Isolation: 38 dB
- Power consumption (max): 6 W
- Operating temperature (T-T): -30 - 65 °C
- Storage temperature (T-T): -40 - 70 °C
- Width: 214 mm
- Depth: 12 mm
- Height: 275 mm
- Weight: 600 g
- Quantity per pack: 1 pc(s)
- Harmonized System (HS) code: 85177100
Specifications
Power
| Power consumption (max) | 6 W |
|---|
Features
| Antenna type | Omni-directional antenna |
|---|---|
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Circular polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.4:1 |
| Product colour | Black |
| Mounting | Ceiling/wall |
| Purpose | Indoor & outdoor |
| Front to back ratio | 18 dB |
| Isolation | 38 dB |
Performance
| Frequency band | 0.864 - 0.868 GHz |
|---|---|
| Antenna gain level (max) | 1 dBi |
Logistics data
| Harmonized System (HS) code | 85177100 |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 214 mm |
|---|---|
| Depth | 12 mm |
| Height | 275 mm |
| Weight | 600 g |
Operational conditions
| Operating temperature (T-T) | -30 - 65 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
Questions
$481.84inc GST
