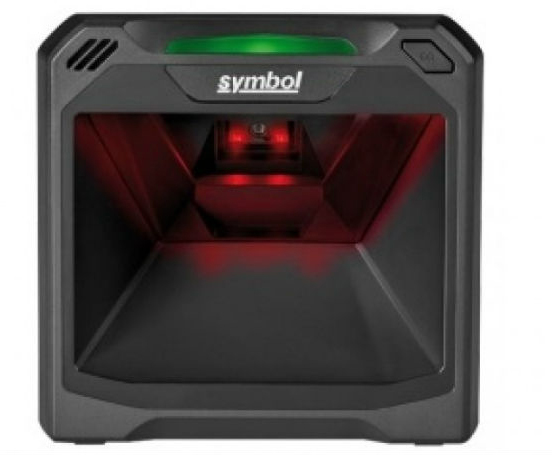

Motorola DS7708 Fixed bar code reader 1D/2D LED Black

SKU: CNZ-IM-018487
MPN: DS7708-SR00004ZCWW
Rating: No reviews yet

MOTOROLA DS7708 CORDED SCANNER — MOTOROLA

Overview

When it comes to on-counter scanning, the DS7708 offers a feature set that puts it at the top of its class for performance, ease of deployment and total cost of ownership. No matter what barcodes appear at your POS, the DS7708 can scan them all; 1D, 2D, printed and electronic.

With its compact design, the DS7708 can easily be installed in even the most space constrained checkout lanes. And extraordinary durability minimizes costs and protects uptime, maximizing device lifecycle and your return on investment.

Key features

Type: Fixed bar code reader
Scanner type: 1D/2D
Sensor type: LED
Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported: Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength: 660 nm
Tilt reading angle: 0 - 360°
Pitch reading angle: -70 - 70°
Yaw reading angle: -70 - 70°
Motion tolerance (cm/s): 254
Connectivity technology: Wired
Standard interfaces: USB, RS-232, RS-485, Keyboard wedge
International Protection (IP) code: IP52
Product colour: Black
Width: 149 mm
Depth: 97 mm
Height: 143 mm
Weight: 500 g
Cables included: USB
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 85%
Harmonized System (HS) code: 84716070

At a glance

Type	Fixed bar code reader
Scanner type	1D/2D
Sensor type	LED
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength	660 nm
Tilt reading angle	0 - 360°
Pitch reading angle	-70 - 70°

All 23 specifications

Specifications

Scanning

Type	Fixed bar code reader
Scanner type	1D/2D
Sensor type	LED
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength	660 nm
Tilt reading angle	0 - 360°
Pitch reading angle	-70 - 70°
Yaw reading angle	-70 - 70°
Motion tolerance (cm/s)	254

Performance

International Protection (IP) code	IP52
Product colour	Black

Logistics data

Harmonized System (HS) code	84716070

Packaging data

Cables included	USB

Ports & interfaces

Connectivity technology	Wired
Standard interfaces	USB, RS-232, RS-485, Keyboard wedge

Weight & dimensions

Width	149 mm
Depth	97 mm
Height	143 mm
Weight	500 g

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 85%
