MSI B650M GAMING WIFI
B650M GAMING WIFI
- Brand: MSI
- Category: Motherboards
- SKU: 6145838
- MPN: B650M GAMING WIFI
MSI

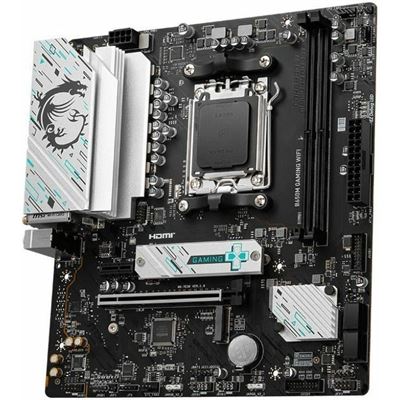

MSI B650M GAMING WIFI motherboard AMD B650 Socket AM5 micro ATX
- SKU
- CNZ-IM-019269
- MPN
- B650M GAMING WIFI
- Rating
- No reviews yet
Overview
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Key features
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
- Supported processor sockets: Socket AM5
- Maximum internal memory supported by processor: 128 GB
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800 MHz
- Supported memory clock speed (max): 7800 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express
- Number of HDDs supported: 6
- Number of storage drives supported: 4
- RAID support: Yes
- RAID levels: 0, 5, 10
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
Specifications
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 3.5 |
Memory
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800 MHz |
| Supported memory clock speed (max) | 7800 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Features
| Motherboard chipset | AMD B650 |
|---|---|
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Graphics
| Parallel processing technology support | Not supported |
|---|
Processor
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 128 GB |
Internal I/O
| USB 2.0 connectors | 4 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
Expansion slots
| Number of M.2 (M) slots | 2 |
|---|
Packaging content
| Cables included | SATA |
|---|
Storage controllers
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, PCI Express |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 5, 10 |
Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| S/PDIF out port | Yes |
Questions
