NETGEAR 10-PORT ULTRA60 POE++ GIGABIT SMART

NETGEAR 10-PORT ULTRA60 POE GIGABIT ETHERNET SMART SWITCH (GS110TUP) - MANAGED WITH 4 X POE+ AND 4 X POE++ 240W 2 X 1G UPLINKS DESKTOP/WALL/RACKMOUNT AND PROSAFE LIFETIME PROTECTION

  • Brand: NETGEAR
  • Category: Switches
  • SKU: 4797105
  • MPN: GS110TUP-100AJS
NETGEAR

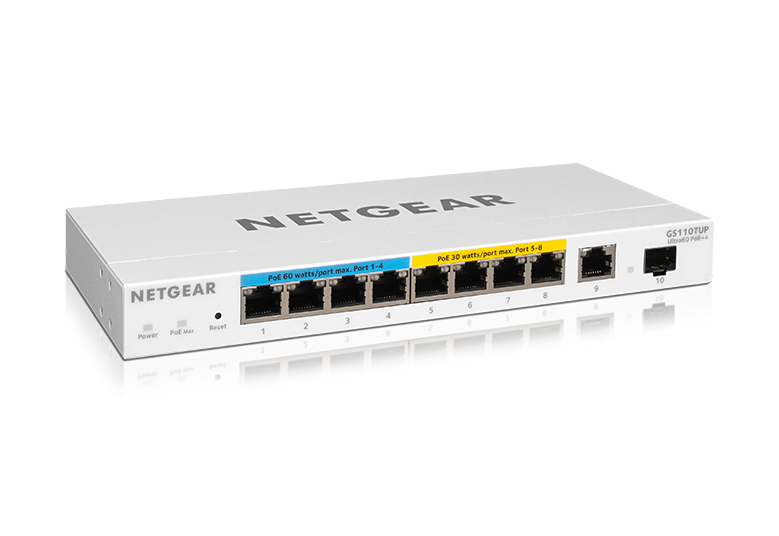

NETGEAR 10-Port Ultra60 PoE Gigabit Ethernet Smart Switch (GS110TUP)

Our SKU
MPN

Overview

Smart w/ optional Cloud (GS110TUP)
10-Port Gigabit Ethernet High-Power PoE+ with PoE++ Ports Smart Desktop Switch (240W)
4 Ultra60 PoE++ ports (up to 60W/port) and 4 PoE+ ports with 240W total power output

Introducing the NETGEAR GS110TUP Ultra60 PoE++ 10-Port Gigabit Ethernet Smart Managed Pro Switch with 4 ports PoE++, 4 ports PoE+ and 1 Gigabit Copper and 1 SFP uplinks with Remote Cloud management activation. GS110TUP provides a total PoE budget of 240W and advanced PoE features such as uninterrupted PoE for powerful PoE applications.

Each Ultra60 PoE++ port can provide up to 60 watts to power up the connected devices such as LED lighting, PTZ cameras, IoT, with a PoE power budget of 240W. Fanless, the GS110TUP supports perfectly silent desktop operation, rack mounting, VESA wall mounting, and ceiling mounting compatible. This Smart Managed Pro switch offers an easy-to-use Web browser-based management GUI with configurable L2/L2+ network features like VLANs and PoE operation scheduling. The IGMP snooping feature can automatically define explicit action multicast groups to be supported per port. This switch also comes with NETGEAR Insight Cloud management activation for anytime remote management and monitoring through an intuitive app or Cloud Portal.

Advanced features such as IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TUP is backed by NETGEAR’s ProSAFE limited lifetime Warranty and 24/7 technical support.

Key features

  • Switch type: Managed
  • Switch layer: L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 10
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 1
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
  • 10G support: No
  • Full duplex: Yes
  • IP routing: Yes
  • Number of VLANs: 64
  • Switching capacity: 20 Gbit/s
  • Forwarding rate: 14.8 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • DHCP features: DHCP client, DHCP snooping
  • Access Control List (ACL) IPv6 entries: 100
  • Security algorithms: SSL/TLS
  • Queue scheduling algorithms: Weighted Round Robin (WRR)
  • Number of multicast groups filtered: 256
  • Rack mounting: Yes
  • Stackable: Yes

Specifications

Power

Power supply includedYes
DC input voltage54 V
Input current4.7 A
Power consumption (max)276.8 W

Design

Rack mountingYes
StackableYes
Product colourWhite
Reset buttonYes
LED indicatorsActivity, Link, PoE, Power, Speed
Wall mountableYes
Number of fans0 fan(s)

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
10G supportNo
Full duplexYes
IP routingYes
Number of VLANs64

Security

DHCP featuresDHCP client, DHCP snooping
Access Control List (ACL) IPv6 entries100
Security algorithmsSSL/TLS
Queue scheduling algorithmsWeighted Round Robin (WRR)

Performance

Noise level0 dB
Mean time between failures (MTBF)695508 h

Logistics data

Master (outer) case width402 mm
Master (outer) case length453 mm
Master (outer) case height357 mm
Master (outer) case gross weight20.1 kg
Products per master (outer) case6 pc(s)

Packaging data

Package typeGift box

Data transmission

Switching capacity20 Gbit/s
Forwarding rate14.8 Mpps
MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames10000

Packaging content

Quick start guideYes
User guideYes
ManualYes
Rack mount kitYes

Multicast features

Number of multicast groups filtered256

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity10
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity1
Power connectorDC-in jack

Management features

Switch typeManaged
Switch layerL2/L3

Weight & dimensions

Width236 mm
Depth101 mm
Height27 mm
Weight630 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m
Heat dissipation945 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget240 W
