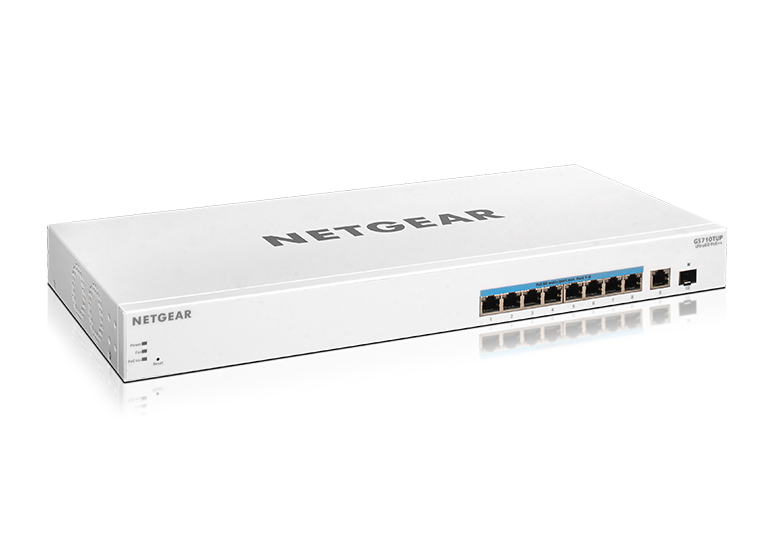

NETGEAR 10-PORT ULTRA60 POE++ GIGABIT SMART

NETGEAR 10-PORT ULTRA60 POE GIGABIT ETHERNET SMART SWITCH (GS710TUP) - MANAGED WITH 8 X POE++ 480W 2 X 1G UPLINKS DESKTOP/RACKMOUNT AND PROSAFE LIFETIME PROTECTION

  • Brand: NETGEAR
  • Category: Switches
  • SKU: 4797106
  • MPN: GS710TUP-100AJS
NETGEAR

NETGEAR GS710TUP Managed L2/L3 Gigabit Ethernet (10/100/1000) Power…

Our SKU
MPN
Barcode

Overview

As the leader in PoE switching, NETGEAR now brings to market the first Cloud Manageable PoE++ switch with Uninterrupted Ultra60 60W PoE++ power to your business together with NETGEAR's innovation "Uninterrupted PoE" for constant power to the devices even during switch firmware updates or reboots.
With IoT (Internet of Things) continuously introducing wired devices for smart home and smart building automation systems, the 802.3bt PoE standard is needed to support those devices that require greater power - power that the 802.3at standard (30W per port) cannot support.
With the growing demand in modern business organizations for more Powered Devices (PD) and higher Power-overEthernet (PoE) consumption per PD, NETGEAR proudly introduces the new Ultra60 PoE++ Smart Managed Pro Switches with the 802.3bt standard to provide up to 60W per port output PoE.
In addition to the IoT devices, these new Ultra60 PoE++ switches will support 802.11AX wireless access points, PTZ and 4K IP surveillance cameras, PoE lighting, PoE-powered audio speakers and AV encoders, as well as other high-powered devices.
NETGEAR Ultra60 PoE++ Smart Managed Pro Switches offer advanced Layer 2+/Lite Layer 3 features such as static routing, advanced PoE functionality and controls including NETGEAR's innovative Uninterrupted PoE, and Remote/Cloud management capability with enhanced performance. These switches are the ideal solution even for the most advanced business organizations looking for the best combination of features, performance, and value. These switches are purposely designed for converged networks where voice, video, and data are all carried on a single network platform.
The GS110TUP comes with 4 Ultra60 PoE++ Gigabit ports, 4 PoE+ Gigabit ports, 1 dedicated non-PoE Gigabit copper and 1 dedicated Gigabit SFP port. With a 240W total PoE budget, the GS110TUP is sufficient for 802.3at PoE+ devices as well as future-proofing for 802.3bt PoE++ deployment. The fanless, silent design makes it perfect for an office
environment or any other noise-sensitive deployments. With versatile mounting options, this small is flexible enough to to be placed on a desk, mounted to the wall, ceiling or pole, or mounted in a rack.
The GS710TUP comes with 8 Ultra60 PoE++ Gigabit ports, 1 dedicated nonPoE Gigabit copper and 1 dedicated Gigabit SFP port, and includes a 480W PoE budget, offering full 802.3bt 60W PoE output across the 8 Ultra60 PoE++
ports. The GS710TUP is rack-mountable, and with an operating noise of less than 35dBA, the switch can also be placed outside of the data closet without disrupting those working nearby.
To fully empower PoE applications, NETGEAR Insight Remote/Cloud Management is now available on these two new switch models as an optional management mode. Activating the NETGEAR Insight Cloud management, enables management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.

Key features

  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: No
  • Basic switching RJ-45 Ethernet ports quantity: 9
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 1
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: Voice VLAN
  • Number of VLANs: 64
  • Fiber ethernet cabling technology: 1000BASE-X
  • Switching capacity: 20 Gbit/s
  • Forwarding rate: 14.8 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Number of queues: 8
  • Static route: Yes

Specifications

Power

Power supply includedYes
Power consumption (max)554 W

Design

Rack mountingYes
Product colourWhite
LED indicatorsActivity, Link, PoE, Power, Speed
Number of fans2 fan(s)

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Full duplexYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresVoice VLAN
Number of VLANs64

Security

DHCP featuresDHCP client, DHCP snooping
Access Control List (ACL)Yes
IGMP snoopingYes
AuthenticationGuest VLAN, MAC-based authentication
Queue scheduling algorithmsWeighted Round Robin (WRR)

Performance

Built-in processorYes
Processor frequency500 MHz
Internal memory128 MB
Flash memory32 MB
Noise level35 dB
Mean time between failures (MTBF)643873 h

Optical fiber

Fiber ethernet cabling technology1000BASE-X

Data transmission

Switching capacity20 Gbit/s
Forwarding rate14.8 Mpps
MAC address table8000 entries
Store-and-forwardYes
Number of queues8
Static routeYes
Number of static routes32
Jumbo frames supportYes
Jumbo frames10000
Packet buffer memory0.5 MB

Packaging content

Quick start guideYes
User guideYes
ManualYes

Multicast features

Multicast supportYes
Number of multicast groups filtered256

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity9
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity1

Management features

Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportNo

Weight & dimensions

Width440 mm
Depth204 mm
Height43 mm
Weight2.99 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Heat dissipation1891.36 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power over Ethernet (PoE) power per port60 W
Total Power over Ethernet (PoE) budget480 W
