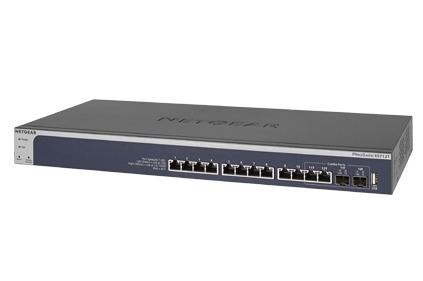

NETGEAR 12 PORT 10GB SWITCH W 2XSFP+ COMBO PORT NETGEAR 12-PORT 10G ETHERNET SMART SWITCH (XS712T) - MANAGED WITH 2 X 10 GIGABIT SFP+ DESKTOP/RACKMOUNT AND PROSAFE LIMITED LIFETIME PROTECTION
Brand: NETGEAR Category: Routers SKU: 3729988 MPN: XS712T-200AJS Home Routers NETGEAR NETGEAR NETGEAR XS712T Managed 10G Ethernet (100/1000/10000) Grey Pricing Price on request
Sales confirms current pricing and availability by email before any order. Tracked courier, NZ-wide. Rates calculated at checkout. Online only, no pick-up.GST tax invoice emailed the moment your order is paid.Genuine NZ warranty . Authorised reseller, sourced through official NZ channels, claims handled by us.Your Consumer Guarantees Act rights apply on top.
Overview Specifications Questions Overview
The NETGEAR® XS712Tv2 10-Gigabit Ethernet Smart Managed Pro Switch brings the second generation of 10-Gigabit Copper switching to SMBs. The XS712Tv2 is a powerful Smart Managed Switch that includes 12 ports of 10-Gigabit connectivity (12 copper with 2 shared combo copper/SFP+ Fiber ports). NETGEAR 10-Gigabit Smart Managed Pro Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. Advanced features include Layer 3 static routing, IPv6, DiffServ QoS, LACP link aggregation and Spanning Tree. XS712Tv2 is backed by NETGEAR ProSAFE Lifetime Limited Warranty and 24/7 support including lifetime chat.
Key features Switch type: Managed Basic switching RJ-45 Ethernet ports quantity: 12 Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000) Combo SFP ports quantity: 2 Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3z 10G support: Yes Port mirroring: Yes Flow control support: Yes Link aggregation: Yes Broadcast storm control: Yes Auto MDI/MDI-X: Yes Spanning tree protocol: Yes Auto-negotiation: Yes VLAN support: Yes Virtual LAN features: Tagged VLAN, Protocol-based VLAN, Port-based VLAN Number of VLANs: 256 Switching capacity: 240 Gbit/s Forwarding rate: 178.5 Mpps MAC address table: 16000 entries Store-and-forward: Yes Latency (10 Gbps): 2.624 µs Number of queues: 8 Jumbo frames support: Yes Jumbo frames: 9000 At a glance AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (max) 75.3 W Rack mounting Yes Product colour Grey Housing material Metal Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3z 10G support Yes
All 47 specifications Specifications Power AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (max) 75.3 W
Design Rack mounting Yes Product colour Grey Housing material Metal
Network Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3z 10G support Yes Port mirroring Yes Flow control support Yes Link aggregation Yes Broadcast storm control Yes Auto MDI/MDI-X Yes Spanning tree protocol Yes Auto-negotiation Yes VLAN support Yes Virtual LAN features Tagged VLAN, Protocol-based VLAN, Port-based VLAN Number of VLANs 256
Protocols Management protocols SNMP v1 / v2c / v3
Performance Internal memory 512 MB Flash memory 256 MB Noise level 29.1 dB Mean time between failures (MTBF) 938178 h
Certificates Certification VCCI Class A
Data transmission Switching capacity 240 Gbit/s Forwarding rate 178.5 Mpps MAC address table 16000 entries Store-and-forward Yes Latency (10 Gbps) 2.624 µs Number of queues 8 Jumbo frames support Yes Jumbo frames 9000 Packet buffer memory 2 MB
Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 12 Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000) Combo SFP ports quantity 2
Weight & dimensions Width 440 mm Depth 204 mm Height 43 mm Weight 2.87 kg
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 10 - 90%
Power over Ethernet (PoE) Power over Ethernet (PoE) No
