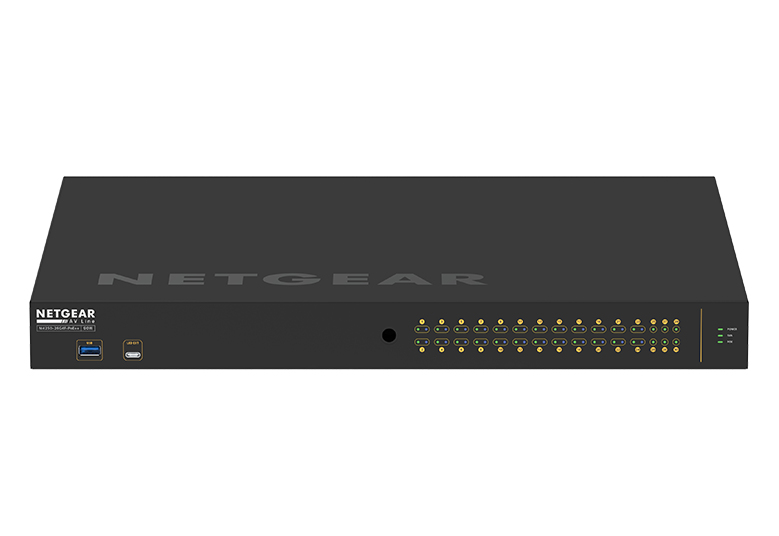

NETGEAR GSM4230UP-100AJS AV Line 24-Port Managed Rackmount Gigabit PoE++ Switch 24x1G PoE++ 2x1G 4xSFP 1440W PoE Power (M4250-26G4F-PoE++)

AV Line 24-Port Managed Rackmount Gigabit PoE++ Switch 24x1G PoE++ 2x1G 4xSFP 1440W PoE Power (M4250-26G4F-PoE++)

  • Brand: NETGEAR
  • Category: Switches
  • SKU: GSM4230UP-100AJS
  • MPN: GSM4230UP-100AJS
NETGEAR

NETGEAR M4250-26G4F-PoE++ Managed L2/L3/L4 Gigabit Ethernet…

Our SKU
MPN
Warranty
60 months
−19%
NETGEAR GSM4230UP-100AJS AV Line 24-Port Managed Rackmount Gigabit PoE++ Switch 24x1G PoE++ 2x1G 4xSFP 1440W PoE Power (M4250-26G4F-PoE++) — NETGEAR

Overview

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

Pre-configured for out-of-the-box use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations

Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles

Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

Key features

  • Switch type: Managed
  • Switch layer: L2/L3/L4
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 4
  • Console port: RJ-45/USB Type-C
  • Networking standards: IEEE 802.1Qav, IEEE 802.1ak, IEEE 802.1as, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
  • 10G support: No
  • VLAN support: Yes
  • Virtual LAN features: Private VLAN
  • Number of VLANs: 4000
  • Switching capacity: 60 Gbit/s
  • Throughput: 44.64 Mpps
  • MAC address table: 16000 entries
  • Latency (1 Gbps): 2.15 µs
  • Jumbo frames support: Yes
  • Jumbo frames: 12000
  • Packet buffer memory: 16 MB
  • DHCP features: DHCP relay, DHCP server, DHCPv6 server
  • IGMP snooping: Yes
  • Security algorithms: SNMP
  • Multicast support: Yes

Specifications

Power

Power sourcePoE

Design

Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes

Network

Networking standardsIEEE 802.1Qav, IEEE 802.1ak, IEEE 802.1as, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
10G supportNo
VLAN supportYes
Virtual LAN featuresPrivate VLAN
Number of VLANs4000

Security

DHCP featuresDHCP relay, DHCP server, DHCPv6 server
IGMP snoopingYes
Security algorithmsSNMP

Data transmission

Switching capacity60 Gbit/s
Throughput44.64 Mpps
MAC address table16000 entries
Latency (1 Gbps)2.15 µs
Jumbo frames supportYes
Jumbo frames12000
Packet buffer memory16 MB

Packaging content

User guideYes
Rack mount kitYes

Multicast features

Multicast supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
Console portRJ-45/USB Type-C

Management features

Switch typeManaged
Switch layerL2/L3/L4
Quality of Service (QoS) supportYes
Web-based managementYes

Weight & dimensions

Width440 mm
Depth400 mm
Height43.2 mm
Weight6.75 kg

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget1440 W
