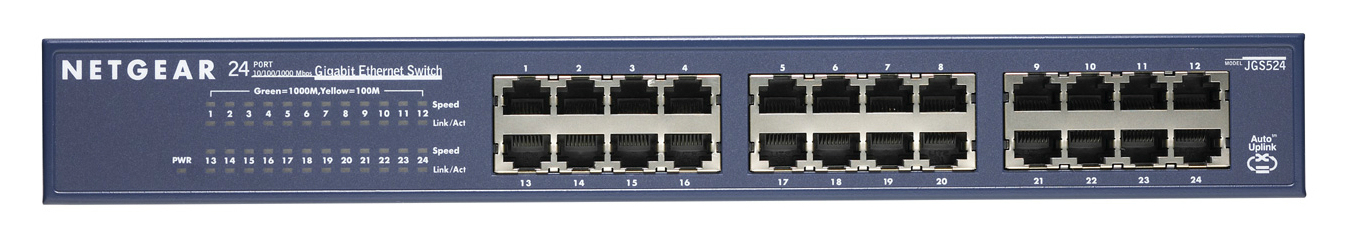

NETGEAR JGS524 24PT GIGABIT ETHERNET SWITCH

JGS524 ProSafe 24 Port Gigabit Switch Rackmount 10/100/1000Mbps 48Gbps Unmanaged

  • Brand: NETGEAR
  • Category: Switches
  • SKU: 1061408
  • MPN: JGS524AU
NETGEAR

NETGEAR ProSafe Ethernet Switch Unmanaged Blue

SKU
CNZ-IM-006717
MPN
JGS524AU

Overview

Take Gigabit to the Desktop
NETGEAR’s JGS500 Gigabit Switch Series gives your office network a megaboost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, these 16- and 24-port switches can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10-, 100-, and 1000-Mbps devices, these unmanaged, rack-mountable switches feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink™ on every port. Users can take advantage of the their ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.

High Capacity
1000-Mbps speeds and a switching capacity of up to 48 Gbps meet the performance needs for even the most bandwidth-hungry applications. The JGS500 series are perfect for graphics, multimedia, and other applications that have to move large files across the network quickly.

Affordable
Aggressive prices enable your workgroup, department or small network to ramp up to Gigabit speeds, even all the way to the desktop.

Flexible
Each port is equipped with automatic speed and duplex sensing, plus Auto Uplink to adjust for straight-through or crossover cables to make the right link. Standards-based design makes it easy to combine 10-, 100-, and 1000-Mbps devices on your network.

Convenient
Easy to set up and easy to use, these unmanaged switches have per port LED’s for effortless network monitoring. They are compact enough for the desktop but come with a rack-mount kit. They are also compatible with PC, Macintosh, Linux, and Unix operating systems.

Key features

  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Maximum data transfer rate: 0 Gbit/s
  • Jumbo frames support: Yes
  • MAC address filtering: Yes
  • Supported network protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
  • Stackable: No
  • Product colour: Blue
  • Noise level: 40 dB
  • Mean time between failures (MTBF): 309000 h
  • Power consumption (typical): 40 W
  • Power over Ethernet (PoE): No
  • Dimensions (WxDxH): 330 x 207 x 43 mm
  • Connectivity technology: Wired
  • Bandwidth: 48 Gbit/s
  • Non-operating relative humidity (non-condensing): 10 - 95%
  • Power requirements: 100-240VAC/50-60 Hz
  • Connectivity LEDs: Y
  • Weight (imperial): 1.72 kg (3.79 lbs)
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 70 °C
  • Operating relative humidity (H-H): 0 - 90%
  • Operating temperature (T-T): 32 - 122 °F
  • Weight: 1.72 kg

Specifications

Power

Power consumption (typical)40 W

Design

StackableNo
Product colourBlue

Security

MAC address filteringYes

Protocols

Supported network protocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Performance

Noise level40 dB
Mean time between failures (MTBF)309000 h

Certificates

CertificationCE mark, commercial FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22), Class A, EN 50082-1, EN 55024 C-Tick

Other features

Dimensions (WxDxH)330 x 207 x 43 mm
Connectivity technologyWired
Bandwidth48 Gbit/s
Non-operating relative humidity (non-condensing)10 - 95%
Power requirements100-240VAC/50-60 Hz
Connectivity LEDsY
Weight (imperial)1.72 kg (3.79 lbs)

Data transmission

Maximum data transfer rate0 Gbit/s
Jumbo frames supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24

Management features

Switch typeUnmanaged

Weight & dimensions

Weight1.72 kg

Operational conditions

Operating temperature (T-T)32 - 122 °F
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%

Power over Ethernet (PoE)

Power over Ethernet (PoE)No
