NETGEAR WiFi 6 AX1800 Dual Band AP

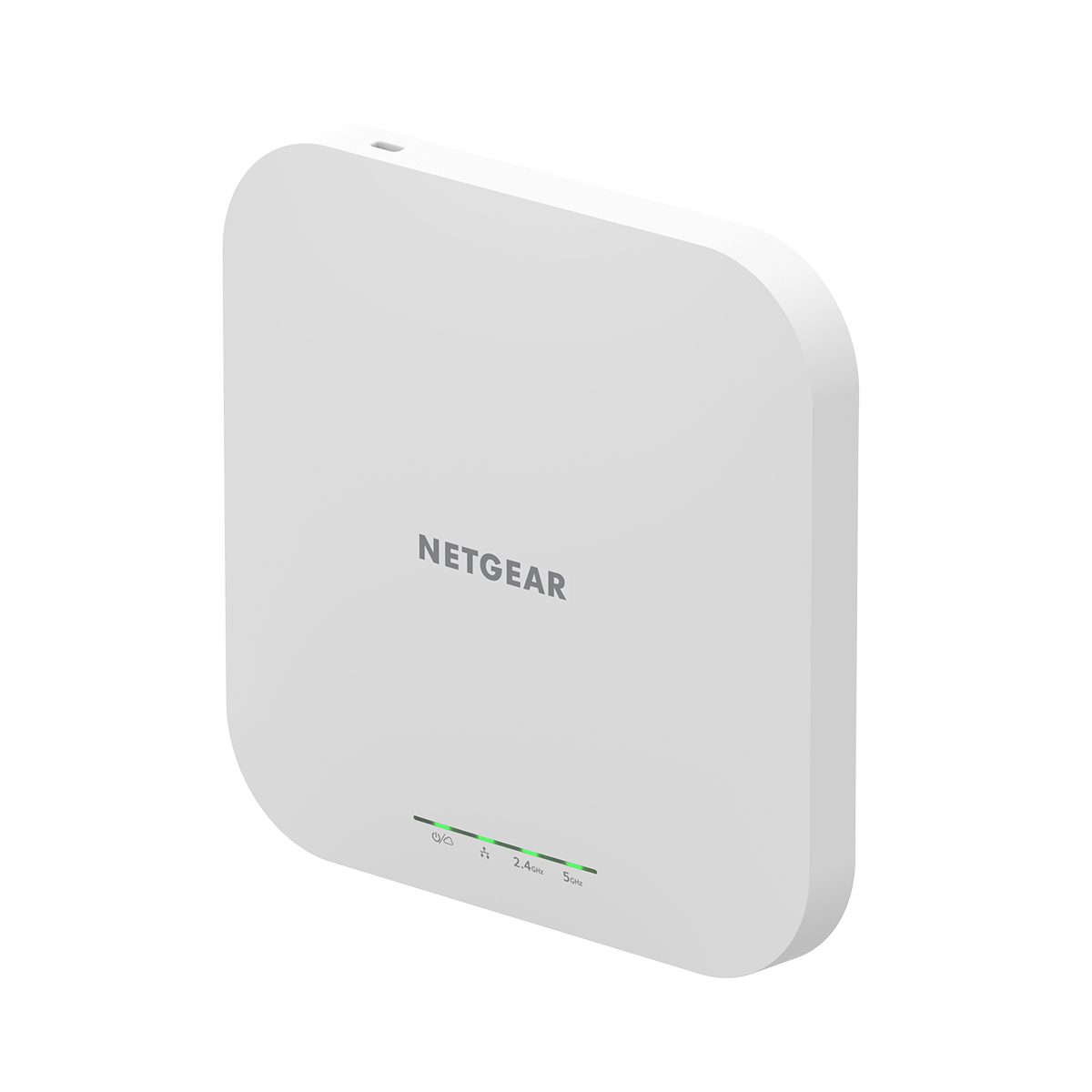

Insight Managed WiFi 6 AX1800 Dual Band Access Point (WAX610)
- Brand: NETGEAR
- Category: Access Points (WiFi)
- SKU: 4952950
- MPN: WAX610-100EUS
NETGEAR
NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Access Point…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
Overview
Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610 is a wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610 is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come.
The WAX610 is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610 also comes with an intuitive local management GUI as one of the choices. The WAX610 features 2x2 Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.
Package Contents
- WAX610 Insight Managed Wireless Access Point
- Wall/ceiling mount kit
- Installation guide
The WAX610 is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610 also comes with an intuitive local management GUI as one of the choices. The WAX610 features 2x2 Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.
Package Contents
- WAX610 Insight Managed Wireless Access Point
- Wall/ceiling mount kit
- Installation guide
Key features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 1800 Mbit/s
- Maximum data transfer rate (2.4 GHz): 600 Mbit/s
- Maximum data transfer rate (5 GHz): 1200 Mbit/s
- Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Number of users: 250 user(s)
- Auto MDI/MDI-X: Yes
- MIMO: Yes
- MIMO type: Multi User MIMO
- Spread spectrum method: OFDM, OFDMA
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
- Security algorithms: EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3
- MAC address filtering: Yes
- Service Set Identifier (SSID) features: Multiple SSIDs, SSID broadcast, SSID broadcast on/off
- Number of SSID supported: 8
- Auto Wireless Distribution System (WDS): Yes
- Remote Authentication Dial-In User Service (RADIUS): Yes
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
- Power over Ethernet (PoE): Yes
- AC input voltage: 12 V
Specifications
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| AC input voltage | 12 V |
| Input current | 2.5 A |
Design
| Placement | Ceiling, Wall |
|---|---|
| Product colour | White |
| Reset button | Yes |
| LED indicators | LAN, Power, Status |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna gain level (max) | 4.5 dBi |
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Number of users | 250 user(s) |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDM, OFDMA |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
Security
| Security algorithms | EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3 |
|---|---|
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs, SSID broadcast, SSID broadcast on/off |
| Number of SSID supported | 8 |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Packaging data
| Package width | 220 mm |
|---|---|
| Package depth | 455 mm |
| Package height | 235 mm |
| Package weight | 3.98 kg |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|---|
| Mounting kit | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| DC-in jack | Yes |
Weight & dimensions
| Width | 160.9 mm |
|---|---|
| Depth | 160.9 mm |
| Height | 33.2 mm |
| Weight | 412 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
