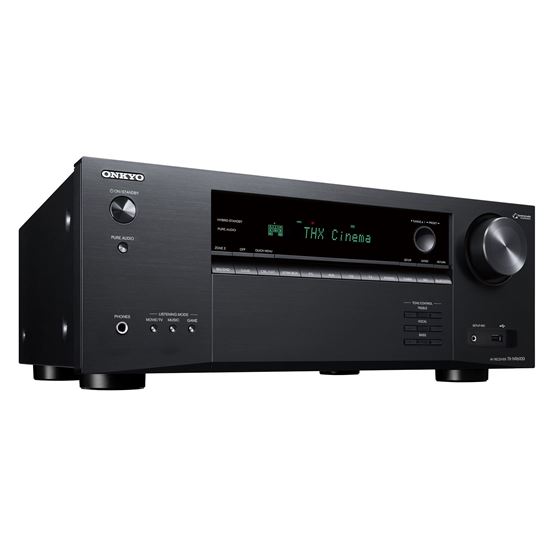

ONKYO 7.2 Channel Home Theatre Network AV Receiver Amplifier. 210 7.2 Channel Home Theatre Network AV Receiver Amp. 210 Watts per Channel.1x Phono
Brand: Onkyo Category: Audio & Video SKU: TXNR6100B MPN: TXNR6100B Home Audio & Video Onkyo Onkyo ONKYO 7.2 Channel Home Theatre Network AV Receiver Amplifier. 210
SKU CNZ-CD-000328
MPN TXNR6100B Overview Specifications Questions Overview ONKYO 7.2 Channel Home Theatre Network AV Receiver Amplifier. 210 Watts per Channel.1x Phono (MM) In, 2x Subwoofer Preout, 8x HDMI (6x In 2x Out) 4x Audio RCA In, 2x Digital In, 1x Audio RCA Out. Weight 9.8kg
At a glance Weight 9.8kg Weight (19) CARTON Weight (21) 12.5kg Power supply AC 120V~, 60Hz Tone control ±10dB, 20Hz (Bass) ±10dB, 20kHz (Treble) Dynamic power 240W (3 ohms, Front)210W (4 ohms, Front)120W (8 ohms, Front) Speaker impedance 4~16 ohms Frequency response 10Hz~100kHz/+1dB, -3dB (Direct/Pure Audio)
All 23 specifications Specifications Power supply Power supply AC 120V~, 60Hz
Tone control Tone control ±10dB, 20Hz (Bass) ±10dB, 20kHz (Treble)
Dynamic power Dynamic power 240W (3 ohms, Front)210W (4 ohms, Front)120W (8 ohms, Front)
Speaker impedance Speaker impedance 4~16 ohms
Frequency response Frequency response 10Hz~100kHz/+1dB, -3dB (Direct/Pure Audio)
FM/AM preset memory FM/AM preset memory 40 stations
Supplied Accessories Supplied Accessories • Indoor FM antenna• AM loop antenna • Speaker setup microphone • Quick Start Guide • Remote controller • AAA (R03) batteries x 2
Signal-to-noise ratio Signal-to-noise ratio 106dB (Line, IHF-A) 80dB (Phono, IHF-A)
Speaker impedance (9) Speaker impedance (9) Tuner Section
Dimensions (W x H x D) Dimensions (W x H x D) 435 x 173.5 x 379.5mm
Tuning frequency range Tuning frequency range FM 87.5MHz~107.9MHzAM 530kHz~1,710kHz
FM/AM preset memory (12) FM/AM preset memory (12) General
Power consumption (idle) Power consumption (idle) 65W
Dimensions (W x H x D) (20) Dimensions (W x H x D) (20) 534 x 265 x 468mm
Power consumption (standby) Power consumption (standby) 0.1W
Power output (All channels) Power output (All channels) 210W/Ch (6 ohms, 1kHz, 10% THD, 1-ch driven)100W/Ch (8 ohms, 20Hz–20kHz, 0.08% THD, 2-ch driven, FTC)
Power consumption (operating) Power consumption (operating) 635W
Input sensitivity and impedance Input sensitivity and impedance 200mV rms/47k-ohms (Line)3.5mV rms/47k-ohms (Phono MM)
Rated RCA output level and impedance Rated RCA output level and impedance 1V rms/470 ohms (Subwoofer pre-out)200mV rms/470 ohms (Zone 2/Zone B line-out)
THD+N (Total Harmonic Distortion + Noise) THD+N (Total Harmonic Distortion + Noise) 0.08% (20Hz~20kHz, half power)
$1,804.34 inc GST
