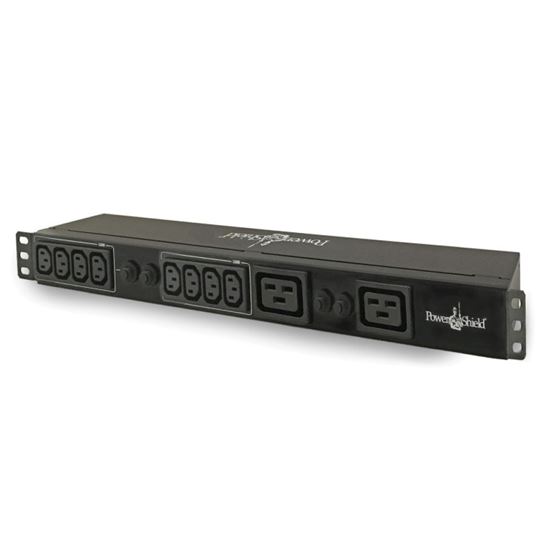

POWERSHIELD 10-Port 1RU Horizontal Power Rail with Hardwired Input
10-Port 1RU Horizontal Power Rail w/ Hardwired Input 8x 10A IEC C13 Output Sockets
- Brand: Powershield
- Category: Power Equipment
- SKU: PSPDU6K
- MPN: PSPDU6K
PowershieldPOWERSHIELD 10-Port 1RU Horizontal Power Rail with Hardwired Input
- SKU
- CNZ-CD-002926
- MPN
- PSPDU6K
Overview
POWERSHIELD 10-Port 1RU Horizontal Power Rail with Hardwired Input 8x 10A IEC 320 C13 Output Sockets & 2x 16A IEC 320 C19 Output Sockets. Rackmount Ears. Safety Microswitch with Static Bypass.
Specifications
Spec
| Spec | Unmanaged Power Distribution Units |
|---|
Humidity
| Humidity | 5% (0°C)~90% (40°C) |
|---|
Output sockets
| Output sockets | 10A IEC 320 C13 (x 8), 16A IEC 320 C19 (x 2) |
|---|
Frequency Range
| Frequency Range | 50Hz or 60Hz ± 1Hz |
|---|
Cable (2m) - C14
| Cable (2m) - C14 | C20 C20 C14 C20 C20 |
|---|
Storage Temperature
| Storage Temperature | -10oC~ +60oC |
|---|
16A Outlets (IEC C19)
| 16A Outlets (IEC C19) | OPERATING ENVIRONMENT |
|---|
16A Outlets (IEC C19) - 0
| 16A Outlets (IEC C19) - 0 | 2 4 0 2 4 |
|---|
Dimensions (D x W x H) mm
| Dimensions (D x W x H) mm | 70 x 433 x 44mm |
|---|
10A Outlets (IEC C13) - 10
| 10A Outlets (IEC C13) - 10 | 8 16 10 8 16 |
|---|
MODEL NUMBER - RPR-IEC-10A10H
| MODEL NUMBER - RPR-IEC-10A10H | RPR-IEC-16A10H RPR-IEC-16A20H RPR-IEC-10A10V RPR-IEC-16A10V RPR-IEC-16A20V |
|---|
MBS for Power Shield UPS 6-10KVA
| MBS for Power Shield UPS 6-10KVA | (optional PDU) |
|---|
Dimensions WxDxH (mm) - 482 x 95 x 45
| Dimensions WxDxH (mm) - 482 x 95 x 45 | 482 x 95 x 45 482 x 95 x 90 752.5 x 67 x 50 752.5 x 67 x 50 1327.5 x 67 x 50 |
|---|
$722.19inc GST
