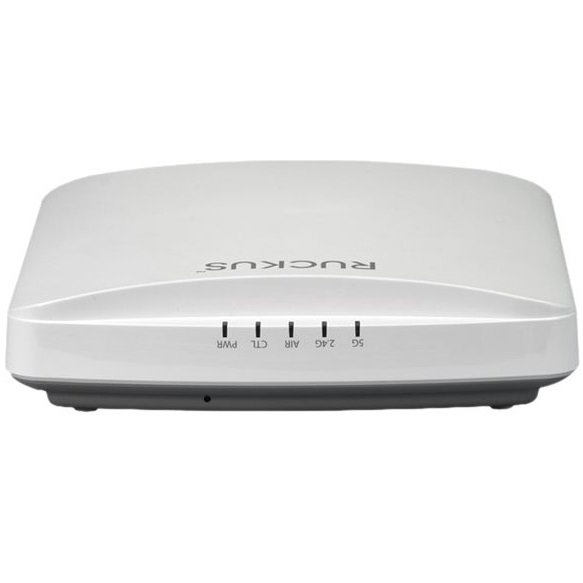

RUCKUS Unleashed R550 dualband802.11ax 2x2:2 Wireless AP

Our SKU
MPN
Rating: No reviews yet

RUCKUS Unleashed R550 dualband802.11ax 2x2:2 Wireless AP — RUCKUS

Overview

Networking > Network Security

At a glance

PoE	12.71W
USB	USB 2.0
PoE+	18.71W
PD-MRC	Yes
Weight	0.562 kg
BeamFlex	Yes
Ethernet	2 x 1GbE Ethernet ports; Power over Ethernet (802.3af/at) with Category 5/5e/6 cable; LLDP
Mounting	Wall, acoustic ceiling, desk; Secure bracket (sold separately)

All 35 specifications

Specifications

PoE

PoE	12.71W

USB

USB	USB 2.0

PoE+

PoE+	18.71W

PD-MRC

PD-MRC	Yes

Weight

Weight	0.562 kg

BeamFlex

BeamFlex	Yes

Ethernet

Ethernet	2 x 1GbE Ethernet ports; Power over Ethernet (802.3af/at) with Category 5/5e/6 cable; LLDP

Mounting

Mounting	Wall, acoustic ceiling, desk; Secure bracket (sold separately)

SmartMesh

SmartMesh	Yes

ChannelFly

ChannelFly	Yes

Venue Type

Venue Type	Education \| Hospitality \| Office/Retail

IoT Support

IoT Support	IoT Onboard

Antenna Gain

Antenna Gain	Up to 3 dBi

Ethernet Ports

Ethernet Ports	2 x 1 GbE

Venue Sub-Type

Venue Sub-Type	Classroom \| Hallways \| Office Space

Concurrent Users

Concurrent Users	512

Number of Radios

Number of Radios	Dual-Radio

Wi-Fi Generation

Wi-Fi Generation	Wi-Fi 6

Dimension (LxWxH)

Dimension (LxWxH)	17.60 x 19.02 x 4.78 cm

Network Analytics

Network Analytics	SmartCell Insight (SCI), Ruckus Analytics

Physical Security

Physical Security	Hidden latching mechanism; Kensington lock; Bracket (902-0120-0000)

Controller Support

Controller Support	RUCKUS Cloud \| RUCKUS SmartZone \| RUCKUS ZoneDirector \| Standalone

Operating Humidity

Operating Humidity	Up to 95%, non-condensing

Security and Policy

Security and Policy	Cloudpath

Combined Max PHY Rate

Combined Max PHY Rate	1774 Mb/s

Operating Temperature

Operating Temperature	0ºC (32ºF) - 50ºC (122ºF)

Wi-Fi Bands Supported

Wi-Fi Bands Supported	2.4 GHz \| 5 GHz

Location Based Services

Location Based Services	SPoT

Rx Sensitivity at 5 GHz

Rx Sensitivity at 5 GHz	-97 dBm

Radio Chains and Streams

Radio Chains and Streams	2x2:2

Wi-Fi Interface Standard

Wi-Fi Interface Standard	IEEE 802.11a/b/g/n/ac/ax

Rx Sensitivity at 2.4 GHz

Rx Sensitivity at 2.4 GHz	-97 dBm

Antenna Patterns, per band

Antenna Patterns, per band	64

PHY Rate at 5 GHz, maximum

PHY Rate at 5 GHz, maximum	1200 Mb/s

PHY Rate at 2.4 GHz, maximum

PHY Rate at 2.4 GHz, maximum	574 Mb/s

Questions

$668.14inc GST
