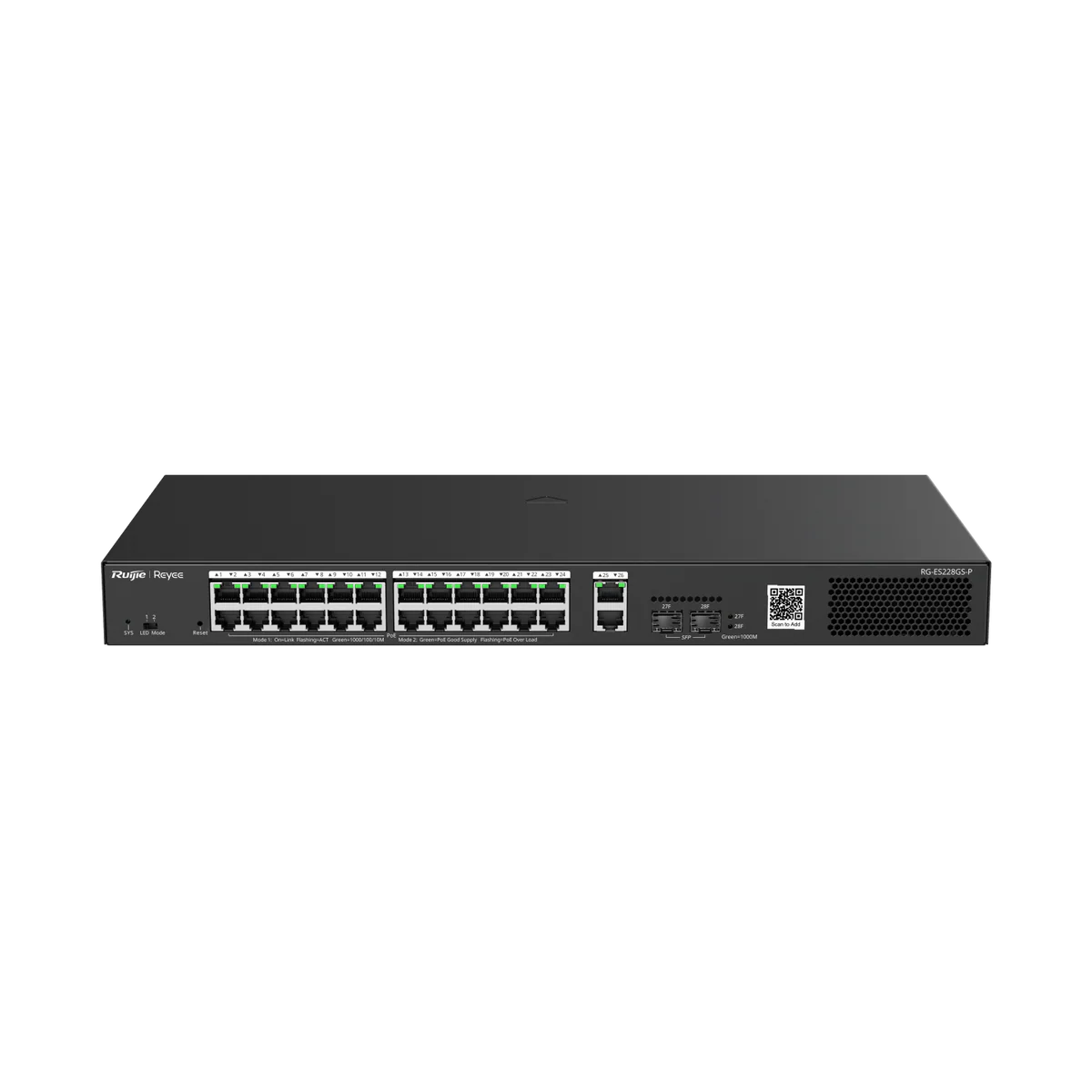

REYEE Ruijie Reyee 26P GE Smart Cloud Managed Switch - 24 PoE+ (370W) - 26x GE + 2x SFP

Our SKU
MPN
Rating: No reviews yet

Ruijie Reyee 26P GE Smart Cloud Managed Switch - 24 PoE+ (370W) - 26x GE + 2x SFP — REYEE

Overview

Networking > Switches

Specifications

ARP

ARP	No

CPU

CPU	MAC chip, single-core processor, 500 MHz clock frequency

EEE

EEE	Yes

EMC

EMC	EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 300 386

Fan

Fan	1 x fixed fan

SON

SON	Yes

LACP

LACP	No

LLDP

LLDP	No

MTBF

MTBF	200,000 hours

Model

Model	RG-ES228GS-P

Screw

Screw	6 x M4 x 8 mm cross recessed countersunk head screws

Casing

Casing	Metal

Device

Device	1

ICMPv6

ICMPv6	No

OSPFv2

OSPFv2	No

OSPFv3

OSPFv3	No

RADIUS

RADIUS	No

Syslog

Syslog	No

Weight

Weight	2.84 kg (6.26 lbs) (without packaging materials); 4 kg (8.12 lbs) (with packaging materials)

Cooling

Cooling	Air cooling, front-to-rear airflow

Altitude

Altitude	–500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

IPv6 ACL

IPv6 ACL	No

LLDP-MED

LLDP-MED	No

Warranty

Warranty	3 years

Condition

Condition	Brand New

IPv4 Ping

IPv4 Ping	No

IPv6 Ping

IPv6 Ping	No

Mirroring

Mirroring	Yes

PoE Ports

PoE Ports	24 PoE+ ports

Cable Test

Cable Test	Yes

DNS Client

DNS Client	Yes

HTTP Login

HTTP Login	Yes

PoE Budget

PoE Budget	370 W

Power Cord

Power Cord	1 x 1.8 m (5.91 ft.)

Rubber Pad

Rubber Pad	4

DHCP Client

DHCP Client	Yes

HTTPS Login

HTTPS Login	No

Power Input

Power Input	220 V AC power supply; rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; rated input current: 6 A

User Manual

User Manual	1

Flash Memory

Flash Memory	8 MB

PoE Watchdog

PoE Watchdog	Yes

Power Supply

Power Supply	Fixed power supply

Reset Button

Reset Button	1

Standard ACL

Standard ACL	No

Certification

Certification	CE, FCC

DHCP Snooping

DHCP Snooping	Yes

Warranty Card

Warranty Card	1

Acoustic Noise

Acoustic Noise	< 40 dB at 25°C (77°F)

ESD Protection

ESD Protection	Air discharge: 8 kV; Contact discharge: 6 kV

IGMP Filtering

IGMP Filtering	No

Online Upgrade

Online Upgrade	Yes

PoE Power Pins

PoE Power Pins	1–2 (+), 3–6 (-)

Port Isolation

Port Isolation	Yes

Extended IP ACL

Extended IP ACL	No

Forwarding Rate

Forwarding Rate	41.6 Mpps

IGMPv1 Snooping

IGMPv1 Snooping	No

IGMPv2 Snooping

IGMPv2 Snooping	No

IPv4 Traceroute

IPv4 Traceroute	No

IPv6 Traceroute

IPv6 Traceroute	No

Shipping Weight

Shipping Weight	4 kg (8.12 lbs)

eWeb Management

eWeb Management	Yes

Camera Detection

Camera Detection	Yes

Extended MAC ACL

Extended MAC ACL	No

IEEE 802.1Q VLAN

IEEE 802.1Q VLAN	Yes

Mounting Options

Mounting Options	Rack

PoE Out Standard

PoE Out Standard	PoE/PoE+ (IEEE 802.3af/at)

Product Category

Product Category	Layer 2

Storage Humidity

Storage Humidity	5% RH to 95% RH (non-condensing)

Surge Protection

Surge Protection	Service port: ±4 kV for common mode; Power connector: ±6 kV for common mode and ±6 kV for differential mode

ARP Anti-spoofing

ARP Anti-spoofing	No

IPv4 Static Route

IPv4 Static Route	No

IPv6 Static Route

IPv6 Static Route	No

Safety Compliance

Safety Compliance	EN 62638-1

IGMPv1, v2, and v3

IGMPv1, v2, and v3	No

Operating Humidity

Operating Humidity	10% RH to 90% RH (non-condensing)

Rack-mount Bracket

Rack-mount Bracket	2

Static Aggregation

Static Aggregation	No

Static MAC Address

Static MAC Address	Yes

Switching Capacity

Switching Capacity	56 Gbps(bit/s)

SNMPv1, v2c, and v3

SNMPv1, v2c, and v3	No

Storage Temperature

Storage Temperature	–40°C to +70°C (–40°F to +158°F)

Fan Speed Adjustment

Fan Speed Adjustment	Automatic speed adjustment

Full IGMPv3 Snooping

Full IGMPv3 Snooping	No

802.1X Authentication

802.1X Authentication	No

Basic IGMPv3 Snooping

Basic IGMPv3 Snooping	No

CPU Protection Policy

CPU Protection Policy	Yes

Operating Temperature

Operating Temperature	0°C to 40°C (32°F to 104°F)

Hot Swapping of Cables

Hot Swapping of Cables	Hot swapping supported by the service port and power connector

Interface Flow Control

Interface Flow Control	Yes

Broadcast Storm Control

Broadcast Storm Control	Yes

Maximum Number of VLANs

Maximum Number of VLANs	16

Multicast Storm Control

Multicast Storm Control	Yes

Number of 1GE SFP Ports

Number of 1GE SFP Ports	2

Number of PoE Out Ports

Number of PoE Out Ports	24

Ruijie Cloud Management

Ruijie Cloud Management	Yes

Jumbo Frame Length (MTU)

Jumbo Frame Length (MTU)	10000 bytes

Recommended Camera Limit

Recommended Camera Limit	200W H265: 80; 400W H265: 40

Maximum Power Consumption

Maximum Power Consumption	25 W (with no PoE load); 400 W (with PoE full load)

Power Cord Retention Clip

Power Cord Retention Clip	1

Total Number of RJ45 Ports

Total Number of RJ45 Ports	26

Ruijie Reyee App Management

Ruijie Reyee App Management	Yes

Additional Uplink/Data Ports

Additional Uplink/Data Ports	2 RJ45 ports and 2 SFP ports

Number of PoE/PoE+ Out Ports

Number of PoE/PoE+ Out Ports	24

Total Number of Optical Ports

Total Number of Optical Ports	2

Unknown Unicast Storm Control

Unknown Unicast Storm Control	Yes

Product Dimensions (W x D x H)

Product Dimensions (W x D x H)	440 mm x 214.9 mm x 44 mm (17.32 in. x 8.46 in. x 1.73 in.)

Number of 10/100/1000BASE-T Ports

Number of 10/100/1000BASE-T Ports	26

Maximum Number of MAC Address Entries

Maximum Number of MAC Address Entries	8000

VLAN Configuration Supported on LAN Ports

VLAN Configuration Supported on LAN Ports	Yes

DSCP Priority-based Traffic Classification

DSCP Priority-based Traffic Classification	No

802.1p Priority-based Traffic Classification

802.1p Priority-based Traffic Classification	No

Inbound or Outbound Rate Limiting Based on Interface Traffic

Inbound or Outbound Rate Limiting Based on Interface Traffic	Yes
