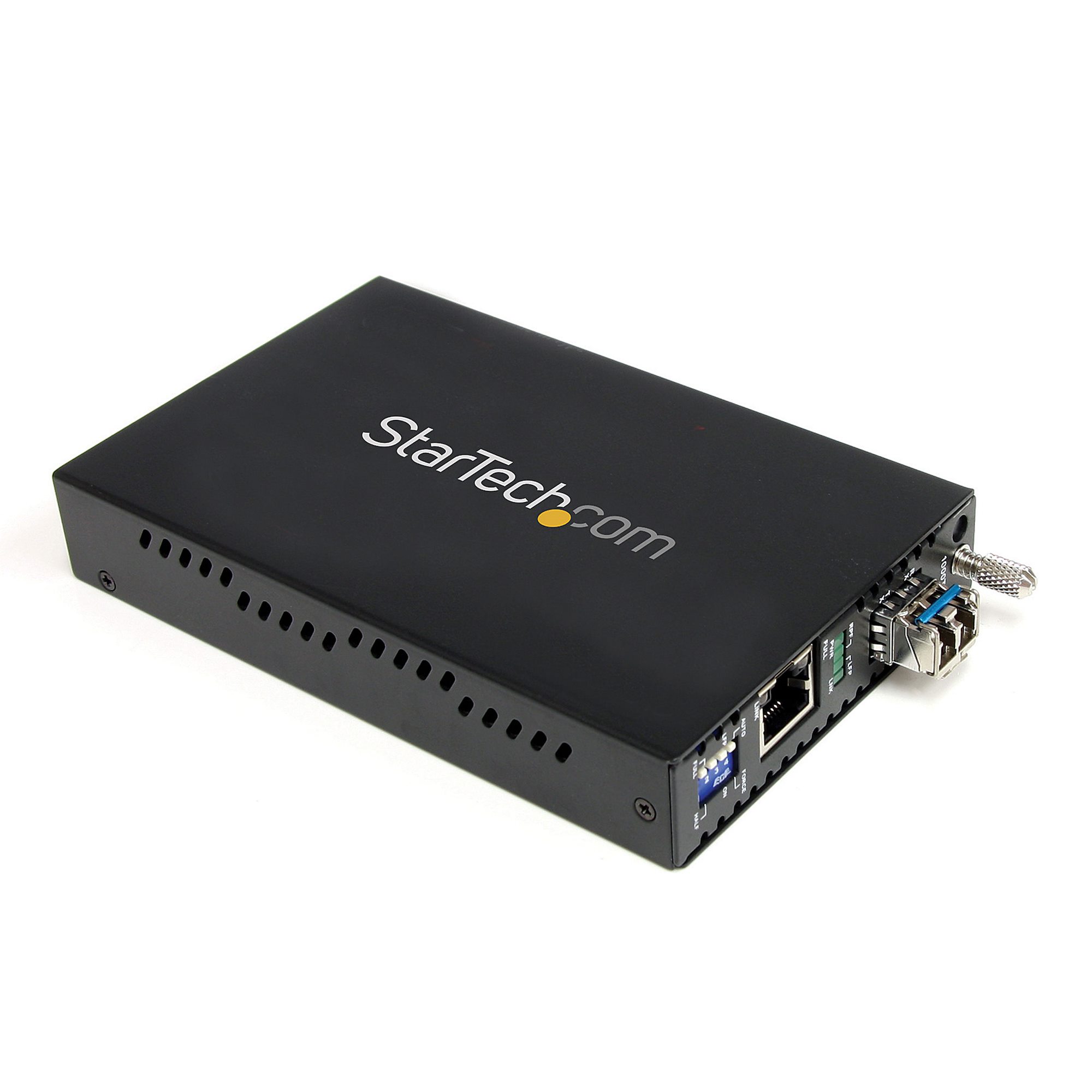

STARTECH.COM 1000 MBPS GIGABIT SINGLE MODE FIBER MEDIA CONVERTER LC 40 KM 2 YR
Networking > Network Accessories
- Brand: STARTECH
- Category: Networking
- SKU: ET1000S40LC2
- MPN: ET1000S40LC2
STARTECH
StarTech.com 1000 Mbps Gigabit Single Mode Fiber Media Converter LC…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−21%
Overview
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend/bridge networks using fiber cabling
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend/bridge networks using fiber cabling
Key features
- Maximum data transfer rate: 2000 Mbit/s
- Converter input interface: 1000Base-T
- Converter output interface: 1000Base-LX, 1000Base-SX
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto MDI/MDI-X: Yes
- Duplex system: Full, Half
- Maximum transfer distance: 40000 m
- Wavelength: 1310 nm
- Fiber mode structure: Single-mode
- Mean time between failures (MTBF): 65000 h
- Internal: No
- Plug and Play: Yes
- Product colour: Black
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: LC
- DC-in jack: Yes
- Output voltage: 12 V
- Output current: 1 A
- External power adapter: Yes
- Weight: 620 g
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): -10 - 70 °C
Specifications
Power
| Output voltage | 12 V |
|---|---|
| Output current | 1 A |
| External power adapter | Yes |
Network
| Maximum data transfer rate | 2000 Mbit/s |
|---|---|
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
Features
| Internal | No |
|---|---|
| Plug and Play | Yes |
| Product colour | Black |
Performance
| Maximum transfer distance | 40000 m |
|---|---|
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 65000 h |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Other features
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
|---|---|
| Full duplex | Yes |
Packaging data
| Package width | 205 mm |
|---|---|
| Package depth | 138 mm |
| Package height | 89 mm |
| Package weight | 754 g |
Packaging content
| Manual | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
Weight & dimensions
| Weight | 620 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
