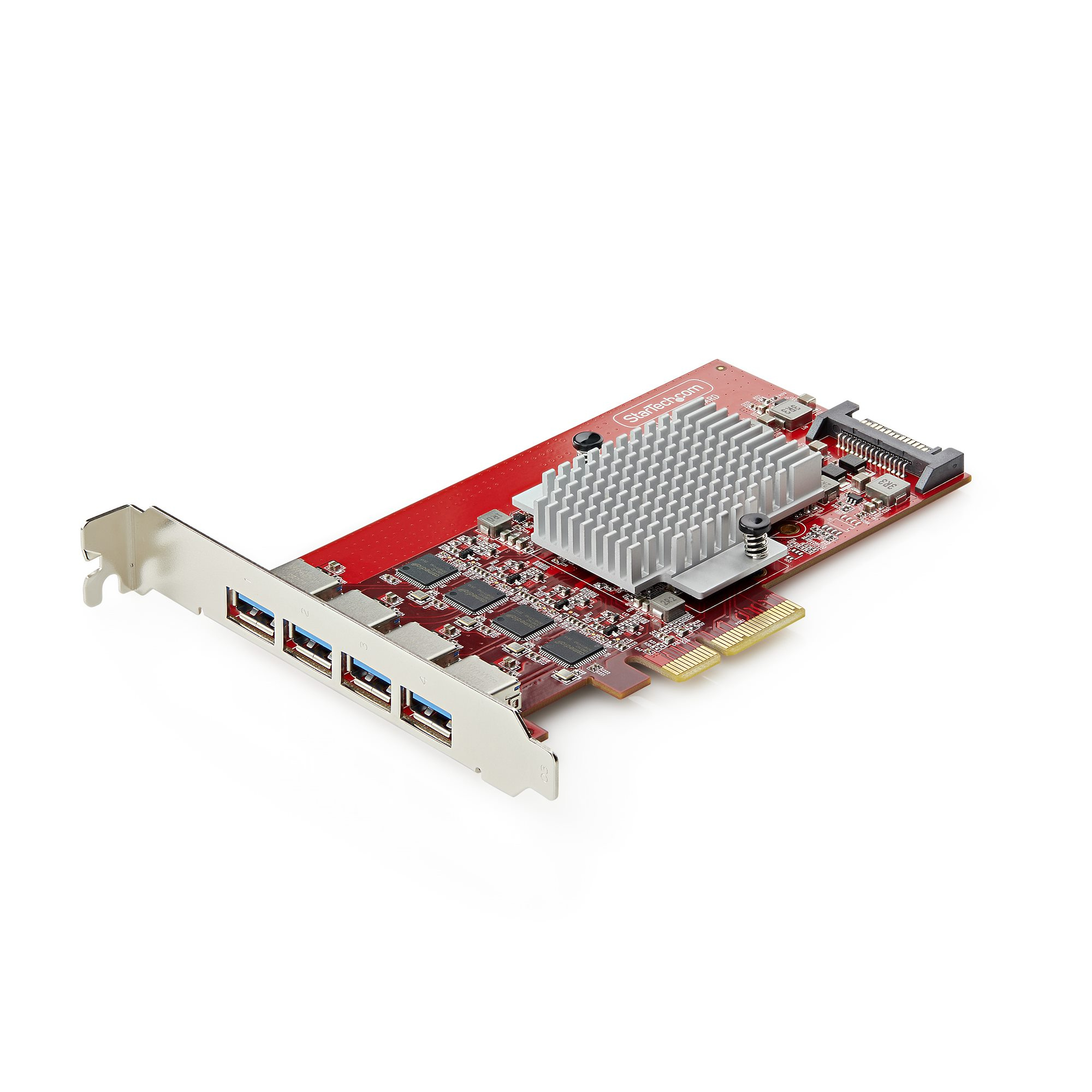

StarTech.com 4-Port USB-A PCIe Card USB 3.2 10Gbps

4-Port USB-A PCIe Card USB 3.2 10Gbps PCI Express 3.0 Expansion Card 4x Independent USB Controllers Windows/Linux/macOS TAA-Compliant

  • Brand: StarTech.com
  • Category: Network Cards
  • SKU: 6786785
  • MPN: P10Q4A-USB-CARD
StarTech.com

StarTech.com 4-Port USB-A PCIe Card, USB 3.2 10Gbps, PCI Express 3.0…

SKU
CNZ-IM-042382
MPN
P10Q4A-USB-CARD

Overview

Add four USB Type-A ports with four independent 10Gbps channels to a computer via a PCI Express slot

Enhance the USB connectivity of a desktop computer or server by adding four external USB-A 10Gbps ports with this internal PCI Express 3.0 expansion card.

Dedicated USB Controllers

With its four independent USB controllers, this PCIe USB-C card enables each port to achieve up to 10Gbps performance, reducing bottlenecks and increasing data throughput.

USB 3.2 Gen 2 (10Gbps) Performance

The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters.

Charge and Sync USB Devices

This USB PCI Express card can provide up to 5V 2A (10W) per USB-A port, enabling sync and charge of portables devices. If the motherboard can't supply enough power, a built-in SATA power connector supports auxiliary power to maintain stable performance.

Compatibility

The PCIe USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. It supports PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card ships with a pre-installed standard profile bracket.

Key features

  • Host interface: PCIe
  • Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
  • Expansion card standard: PCIe 3.0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
  • SATA power connector type: SATA 15-pin
  • Internal: Yes
  • Product colour: Red
  • Chipset: ASMedia - ASM3142, ASMedia - ASM2812X
  • Data transfer rate (max): 10 Gbit/s
  • UASP support: Yes
  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
  • Mac operating systems supported: Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2019, Windows Server 2022
  • Compliance certificates: RoHS, Trade Agreements Act (TAA)
  • Width: 56 mm
  • Depth: 140 mm
  • Height: 120 mm
  • Weight: 94 g
  • User guide: Yes
  • Package width: 142 mm
  • Package depth: 170 mm
  • Package height: 30 mm
  • Package weight: 160 g

Specifications

Design

InternalYes
Product colourRed

Features

ChipsetASMedia - ASM3142, ASMedia - ASM2812X
Data transfer rate (max)10 Gbit/s
UASP supportYes

Logistics data

Products per master (outer) case60 pc(s)
Master (outer) case width380 mm
Master (outer) case length310 mm
Master (outer) case height500 mm

Packaging data

User guideYes
Package width142 mm
Package depth170 mm
Package height30 mm
Package weight160 g

Technical details

Compliance certificatesRoHS, Trade Agreements Act (TAA)

Ports & interfaces

Host interfacePCIe
Output interfaceUSB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standardPCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
SATA power connector typeSATA 15-pin

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supportedMac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2019, Windows Server 2022

Weight & dimensions

Width56 mm
Depth140 mm
Height120 mm
Weight94 g
