STARTECH.COM 4 PORT VGA USB KVM SWITCH, 3 YR
Servers & Storage > Servers
- Brand: STARTECH
- Category: Servers
- SKU: SV431USB
- MPN: SV431USB
STARTECH

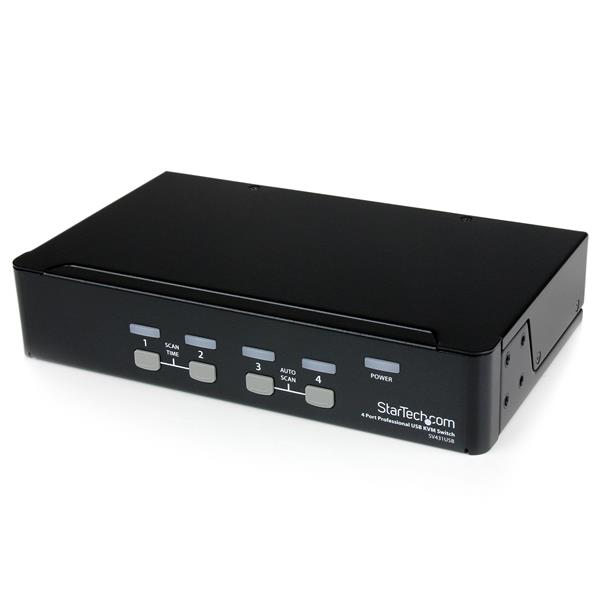

StarTech.com 4 Port Professional VGA USB KVM Switch with Hub
- SKU
- CNZ-DD-042416
- MPN
- SV431USB
- Rating
- No reviews yet
−23%
Overview
Control up to 4 PC or Mac computers from a single keyboard, mouse and monitor and share any USB device between all connected computers
The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution
The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Key features
- Number of computers controlled: 4
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: VGA
- Console ports: USB A, VGA (D-Sub)
- Console USB ports quantity: 4
- Audio connections: No
- DC-in jack: Yes
- Maximum resolution: 1920 x 1440 pixels
- Scan interval: 3,8,15,30 s
- Daisy chain: No
- Number of users: 1 user(s)
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Housing material: Steel
- Maximum cable length: 5 m
- Hot keys: No
- Mean time between failures (MTBF): 82506 h
- Certification: CE, FCC, REACH, TAA, cUR
- Built-in display: No
- On Screen Display (OSD): No
- Input voltage: 110-240 V
- Input current: 0.4 A
Specifications
Power
| Input voltage | 110-240 V |
|---|---|
| Input current | 0.4 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power plug type | Type N |
Design
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| Maximum cable length | 5 m |
| Hot keys | No |
| Mean time between failures (MTBF) | 82506 h |
| Certification | CE, FCC, REACH, TAA, cUR |
Display
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
Performance
| Maximum resolution | 1920 x 1440 pixels |
|---|---|
| Scan interval | 3,8,15,30 s |
| Daisy chain | No |
| Number of users | 1 user(s) |
Logistics data
| Harmonized System (HS) code | 85176200 |
|---|
Other features
| IP control | No |
|---|
Packaging data
| Package width | 196 mm |
|---|---|
| Package depth | 295 mm |
| Package height | 72 mm |
| Package weight | 1.3 kg |
Sustainability
| Compliance certificates | RoHS |
|---|
Packaging content
| Manual | Yes |
|---|---|
| Rubber feet | Yes |
Ports & interfaces
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 4 |
| Audio connections | No |
| DC-in jack | Yes |
Weight & dimensions
| Width | 130 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 988 g |
Questions
