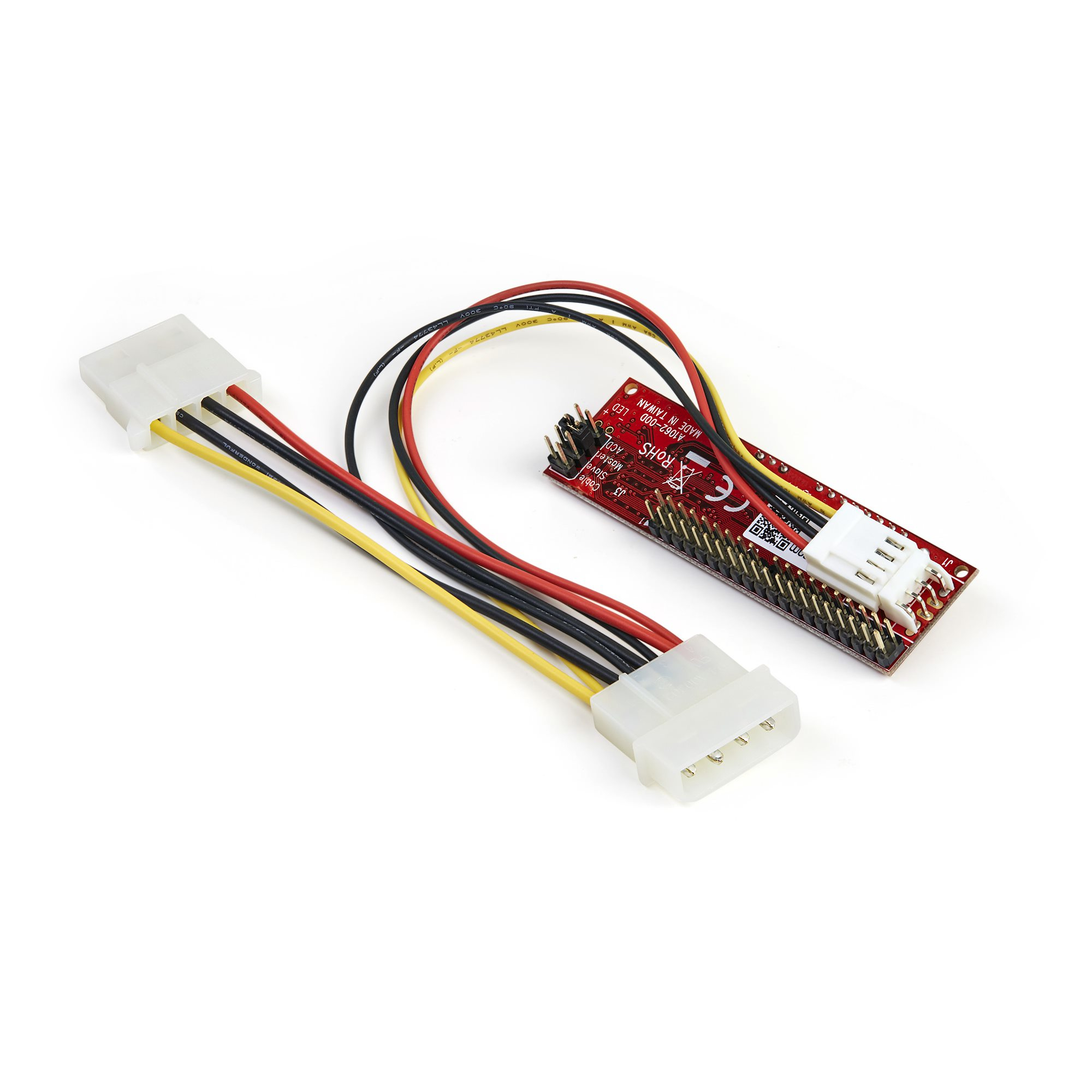

40-Pin IDE PATA to SATA Adapter Converter - IDE to 2.5/3.5/5.25 SATA drive adapter with support for solid state drives (SSD) hard drives (HDD) and optical drives (ODD)
Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
Host interface: IDE
Output interface: SATA
Connector(s): 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)
Internal: Yes
Product colour: Red
Certification: FCC, CE, TAA, REACH
Chipset: Marvell - 88SA8052
Data transfer rate (max): 0.133 Gbit/s
Logical block addressing (LBA) support: 48 bit
Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -25 - 80 °C
Operating relative humidity (H-H): 15 - 90%
Compliance certificates: RoHS
Width: 20 mm
Depth: 75.5 mm
Height: 23 mm
Weight: 29 g
Manual: Yes
Package width: 175 mm
Package depth: 145 mm
Package height: 33 mm
Package weight: 89 g
Harmonized System (HS) code: 84733020
Products per master (outer) case: 60 pc(s)
Specifications
Design
Internal
Yes
Product colour
Red
Certification
FCC, CE, TAA, REACH
Features
Chipset
Marvell - 88SA8052
Data transfer rate (max)
0.133 Gbit/s
Logical block addressing (LBA) support
48 bit
Logistics data
Harmonized System (HS) code
84733020
Products per master (outer) case
60 pc(s)
Master (outer) case width
380 mm
Master (outer) case length
496 mm
Master (outer) case height
321 mm
Other features
Material
Plastic, Steel
Packaging data
Manual
Yes
Package width
175 mm
Package depth
145 mm
Package height
33 mm
Package weight
89 g
Technical details
Compliance certificates
RoHS
Ports & interfaces
Host interface
IDE
Output interface
SATA
Connector(s)
1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)
