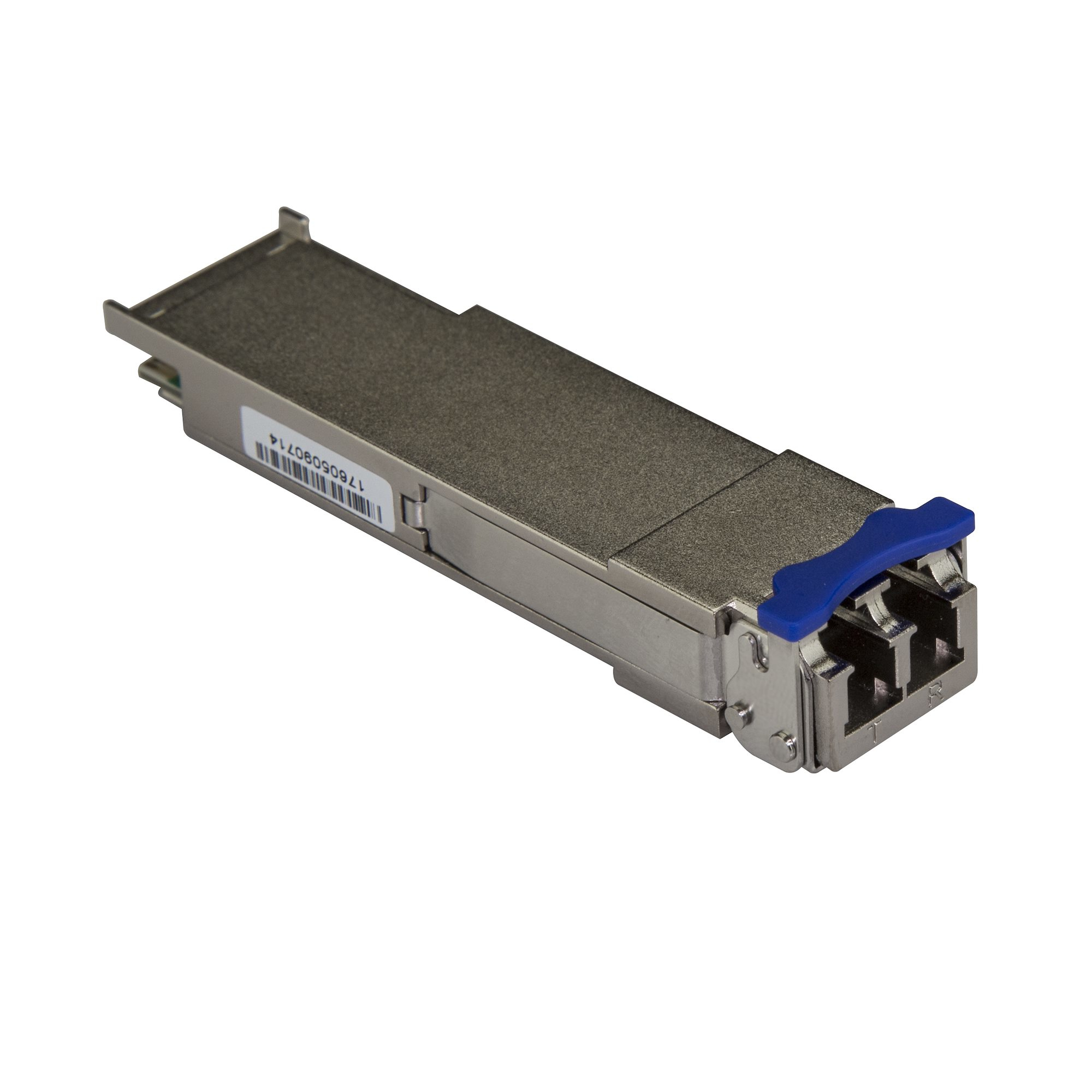

StarTech.com 40GBase-LR4 QSFP+ Transceiver - SM LC
MSA Compliant 40GBase-LR4 QSFP+ - 40G QSFP+ Fiber Transceiver Module with LC Connector - Single-mode QSFP+ - Lifetime Warranty - 10 km/6.2 mi - 1270nm-1330nm - DDM/DOM - Fiber Transceiver
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3731226
- MPN: QSFP40LR4ST
StarTech.com
StarTech.com MSA Compliant QSFP+ Transceiver Module -…
- SKU
- CNZ-IM-042436
- MPN
- QSFP40LR4ST
- Rating
- No reviews yet
−9%
Overview
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 2.5 Watts
• DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 2.5 Watts
• DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 40000 Mbit/s
- Interface type: QSFP+
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- SFP transceiver standard: LR4
- Maximum transfer distance: 10000 m
- Tx wavelength (min): 1270 nm
- Tx wavelength (max): 1330 nm
- Networking standards: IEEE 802.3ba
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Mean time between failures (MTBF): 1489426 h
- Power consumption (typical): 2.5 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR, REACH
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 18.4 mm
Specifications
Power
| Power consumption (typical) | 2.5 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 1489426 h |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Tx wavelength (min) | 1270 nm |
| Tx wavelength (max) | 1330 nm |
| Networking standards | IEEE 802.3ba |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR, REACH |
Logistics data
| Master (outer) case width | 250 mm |
|---|---|
| Master (outer) case length | 300 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 36 pc(s) |
Packaging data
| Package width | 92 mm |
|---|---|
| Package depth | 117 mm |
| Package height | 32 mm |
| Package weight | 76 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 18.4 mm |
|---|---|
| Depth | 72 mm |
| Height | 13 mm |
| Weight | 40 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
