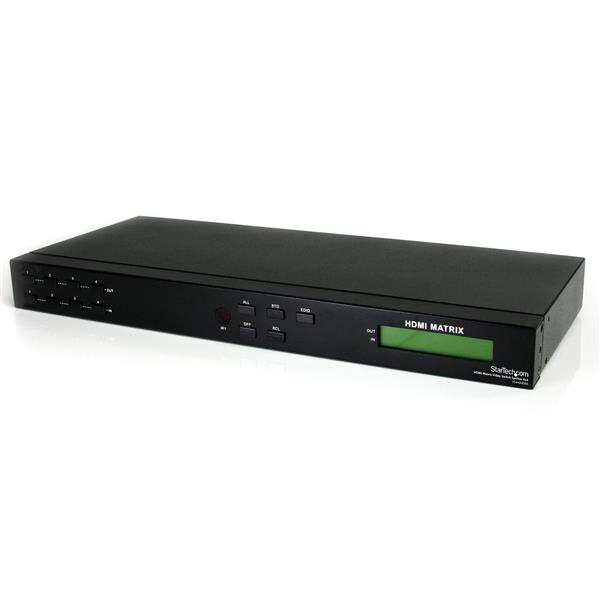

StarTech.com 4x4 HDMI Matrix Video Switch Splitter
4x4 HDMI Matrix Video Switch Splitter with Audio and RS232 - 4x1 HDMI Video Switch - 4 Port HDMI Switcher
- Brand: StarTech.com
- Category: A/V Cables & Adapters
- SKU: 1722062
- MPN: VS440HDMI
StarTech.com
StarTech.com 4x4 HDMI Matrix Video Switch Splitter with Audio and…
- SKU
- CNZ-IM-021741
- MPN
- VS440HDMI
- Rating
- No reviews yet
−9%
Overview
The VS440HDMI 4x4 HDMI® Audio/Video Matrix Switch/Splitter (with Audio and RS232) lets you share up to 4 distinct HDMI or DVI inputs (using HDMI to DVI adapters - not included), with audio, between 4 independent displays or projectors.
Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.
The switcher features a front panel LCD display for easy status monitoring, plus an included remote control and IR extender module for simple control from a distance.
Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using ear-mounts (included).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Matrix switching functionality gives you full control of the video source displayed on each monitor, at the touch of a button
- Front panel push-buttons, RS-232 PC port and IR remote included for simple control and flexible switching options
- Storage of display configurations allow for convenient recall of preferred combinations
Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.
The switcher features a front panel LCD display for easy status monitoring, plus an included remote control and IR extender module for simple control from a distance.
Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using ear-mounts (included).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Matrix switching functionality gives you full control of the video source displayed on each monitor, at the touch of a button
- Front panel push-buttons, RS-232 PC port and IR remote included for simple control and flexible switching options
- Storage of display configurations allow for convenient recall of preferred combinations
Key features
- Product type: AV matrix switcher
- Maximum resolution: 1920 x 1200 pixels
- Housing colour: Black
- Rack mounting: Yes
- LED indicators: Yes
- Certification: CE, FCC, TAA, REACH
- Built-in display: Yes
- HDMI input ports quantity: 4
- HDMI output ports quantity: 4
- RS-232 ports: 1
- Power consumption (typical): 18 W
- AC input voltage: 100 - 240 V
- Input current: 0.6 A
- Output current: 1500 mA
- Output voltage: 12 V
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -20 - 85 °C
- Operating relative humidity (H-H): 0 - 95%
- Harmonized System (HS) code: 85299097
- Compliance certificates: RoHS
- Width: 185 mm
- Depth: 440 mm
- Height: 42 mm
- Weight: 2.4 kg
Specifications
Power
| Power consumption (typical) | 18 W |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output current | 1500 mA |
| Output voltage | 12 V |
Design
| Housing colour | Black |
|---|---|
| Rack mounting | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, TAA, REACH |
Display
| Built-in display | Yes |
|---|
Features
| Product type | AV matrix switcher |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
Logistics data
| Harmonized System (HS) code | 85299097 |
|---|
Packaging content
| Cables included | RS-232 |
|---|---|
| Rack mount kit | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Screws included | Yes |
| Number of screws | 6 |
| Included power plug types | AU, EU, UK, US |
| IR extender included | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| HDMI input ports quantity | 4 |
|---|---|
| HDMI output ports quantity | 4 |
| RS-232 ports | 1 |
Weight & dimensions
| Width | 185 mm |
|---|---|
| Depth | 440 mm |
| Height | 42 mm |
| Weight | 2.4 kg |
| Package width | 263 mm |
| Package depth | 581 mm |
| Package height | 90 mm |
| Package weight | 3.1 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
