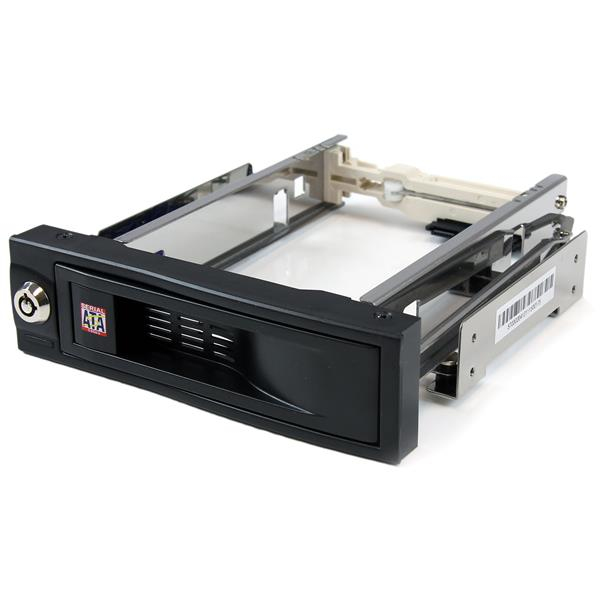

StarTech.com 5.25in Trayless Mobile Rack for 3.5in HD

5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive - Internal SATA Backplane Enclosure

  • Brand: StarTech.com
  • Category: Servers & Storage
  • SKU: 1594313
  • MPN: HSB100SATBK
StarTech.com

StarTech.com 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive

SKU
CNZ-IM-044160
MPN
HSB100SATBK

Overview

Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.

The StarTech.com Advantage

- Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
- Quickly and easily install or remove hard drives without having to open the chassis with the innovative trayless design
- Rubber shock absorbers, a solid aluminum construction and 50,000+ insertion rating ensures longevity from both the drives and bay

Key features

  • Size (imperial): 13.3 cm (5.25")
  • Type: Bezel panel
  • Product colour: Black
  • Number of HDDs supported: 1
  • HDD size: 3.5"
  • HDD interface: Serial ATA, Serial ATA II, Serial ATA III
  • Material: Aluminium, PU plastic
  • Number of cycles: 50000
  • LED indicators: Activity, Power
  • Key lock: Yes
  • Certification: CE, FCC, REACH
  • Width: 149 mm
  • Depth: 184 mm
  • Height: 42 mm
  • Weight: 261 g
  • Package width: 206 mm
  • Package depth: 159 mm
  • Package height: 51 mm
  • Package weight: 366 g
  • Screws included: Yes
  • Manual: Yes
  • Number of lock keys included: 2 pc(s)
  • Operating temperature (T-T): 0 - 50 °C
  • Operating relative humidity (H-H): 5 - 85%

Specifications

Features

Size (imperial)13.3 cm (5.25")
TypeBezel panel
Product colourBlack
Number of HDDs supported1
HDD size3.5"
HDD interfaceSerial ATA, Serial ATA II, Serial ATA III
MaterialAluminium, PU plastic
Number of cycles50000
LED indicatorsActivity, Power
Key lockYes
CertificationCE, FCC, REACH

Logistics data

Harmonized System (HS) code84733080

Packaging data

Package width206 mm
Package depth159 mm
Package height51 mm
Package weight366 g

Packaging content

Screws includedYes
ManualYes
Number of lock keys included2 pc(s)

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width149 mm
Depth184 mm
Height42 mm
Weight261 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 95%

Questions

$73.59inc GST
