Split an HDMI® audio and video signal to eight displays simultaneously

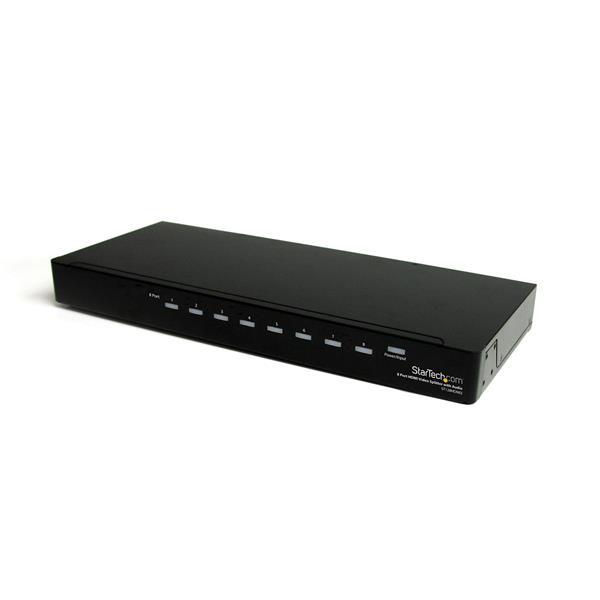

The ST128HDMI2 8-Port High Speed HDMI® Splitter (rack mountable) lets you share a single HDMI audio-video source with up to 8 HDMI or DVI-D displays without sacrificing image or sound quality.
Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 15ft (5m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.
A perfect addition to virtually any application requiring high-quality video, the ST128HDMI2 HDMI splitter is easy to install as a standalone or rack-mounted device using the included brackets and provides flawless, distortion-free digital video.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
The StarTech.com Advantage
Key features
Video port type: HDMI
Video out: 8x HDMI
Video ports quantity: 8
Audio ports quantity: 8
Product colour: Black
Housing material: Steel
Maximum resolution: 1920 x 1200 pixels
Full HD: Yes
Rack mounting: Yes
HD-Ready: Yes
HDCP: Yes
Supported graphics resolutions: 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA)
LED indicators: Yes
AC input voltage: 110-240 V
Input current: 0.8 A
Output voltage: 12 V
Output current: 1.5 A
Power consumption (typical): 10.2 W
Dimensions (WxDxH): 440 x 183 x 45 mm
Weight: 2.18 kg
Package width: 271 mm
Package depth: 595 mm
Package height: 89 mm
Package weight: 3.31 kg
Specifications
Power
AC input voltage
110-240 V
Input current
0.8 A
Output voltage
12 V
Output current
1.5 A
Power consumption (typical)
10.2 W
Features
Product colour
Black
Housing material
Steel
Maximum resolution
1920 x 1200 pixels
Full HD
Yes
Rack mounting
Yes
HD-Ready
Yes
HDCP
Yes
Supported graphics resolutions
1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA)
