STARTECH.COM 8-PORT PCI EXPRESS RS232 SERIAL ADAPTER CARD - PCIE, LTW
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals
- SKU: PEX8S1050
- MPN: PEX8S1050
STARTECH
StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe…
- SKU
- CNZ-DD-040395
- MPN
- PEX8S1050
- Rating
- No reviews yet
−23%
Overview

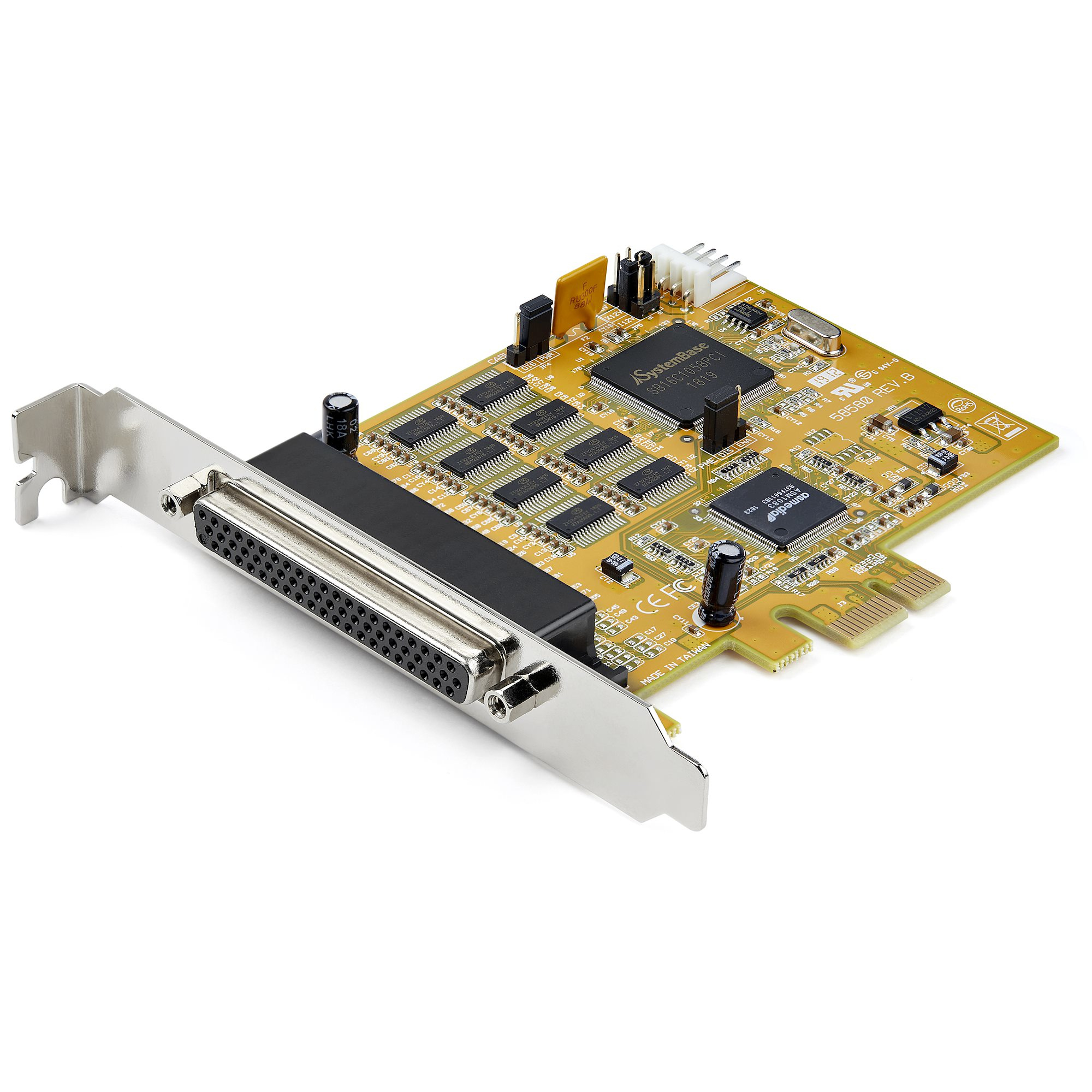

Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
The StarTech.com Advantage
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: Serial
- Serial ports quantity: 8
- Serial interface type: RS-232
- Internal: Yes
- Product colour: Yellow
- Maximum cable length: 0.5 m
- Mean time between failures (MTBF): 160013 h
- Chipset: ASMedia - ASM1083, System Base - SB16C1058PCI
- Baud rate: 921.6 Kbit/s
- FIFO (First In, First Out): 256 B
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity bit: Even, No, Odd
- Flow Control type: RTS/CTS, XON/XOFF
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 5 - 95%
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
- Compliance certificates: RoHS
- Width: 16 mm
- Depth: 105 mm
Specifications
Design
| Internal | Yes |
|---|---|
| Product colour | Yellow |
| Maximum cable length | 0.5 m |
| Mean time between failures (MTBF) | 160013 h |
Features
| Chipset | ASMedia - ASM1083, System Base - SB16C1058PCI |
|---|---|
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, No, Odd |
| Flow Control type | RTS/CTS, XON/XOFF |
Logistics data
| Harmonized System (HS) code | 84733020 |
|---|---|
| Products per master (outer) case | 14 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 315 mm |
Other features
| Compliance industry standards | 16C1050 UART |
|---|
Packaging data
| Cables included | Serial |
|---|---|
| Quick installation guide | Yes |
| Package width | 190 mm |
| Package depth | 290 mm |
| Package height | 65 mm |
| Package weight | 672 g |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Host interface | PCIe |
|---|---|
| Output interface | Serial |
| Serial ports quantity | 8 |
| Serial interface type | RS-232 |
System requirements
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|---|---|
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
Weight & dimensions
| Width | 16 mm |
|---|---|
| Depth | 105 mm |
| Height | 120 mm |
| Weight | 74 g |
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Questions
$425.49inc GST
