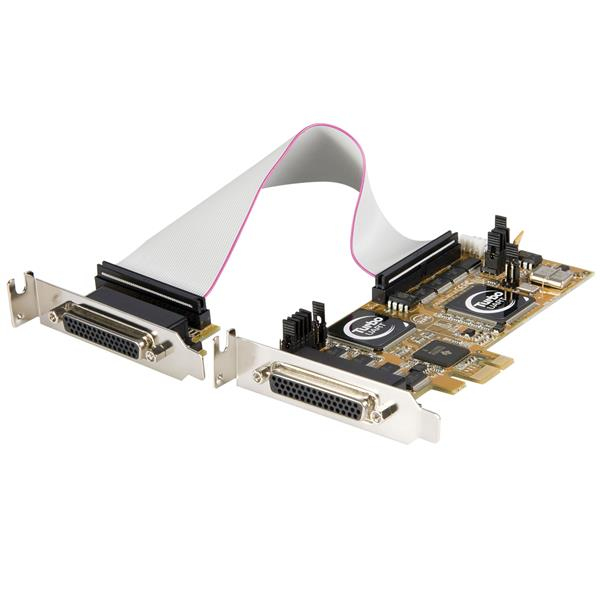

StarTech.com 8 Port PCIe LP Serial Adapter Card
8 Port PCI Express Low Profile Serial Adapter Card
- Brand: StarTech.com
- Category: Adapters
- SKU: 1603529
- MPN: PEX8S950LP
StarTech.com
StarTech.com Newer version available PEX8S1050LP: 8 Port PCI Express…
- SKU
- CNZ-IM-022028
- MPN
- PEX8S950LP
- Rating
- No reviews yet
Overview
Add 8 RS-232 serial ports to your computer via a single low profile PCI Express slot
The PEX8S950LP 8 Port PCI Express Low Profile Serial Adapter Card with dongle cables included offers 8 RS 232 Serial connections via a single PCI Express slot, with data rates up to 921Kbps. Perfect for use with a broad variety of serial peripherals including printers, scanners, industrial controls and more.
A complete 8 port RS232 Serial card solution, the adapter includes 2 breakout cables – each with 4 DB9 connectors for a total of 8 ports. The perfect choice for adding several additional ports when space is at a premium, the serial adapter card is designed to fit in small/micro form factor computer cases. Plus, this versatile card also includes 2 standard profile brackets for compatibility with full size cases.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Includes 2 breakout cables, helping to avoid crowded connections
- Pre-configured with low profile brackets and ships complete with 2 standard profile brackets for compatibility with almost any computer case
- Easy to install and use with full step-by-step instructions for hassle-free integration into your system
The PEX8S950LP 8 Port PCI Express Low Profile Serial Adapter Card with dongle cables included offers 8 RS 232 Serial connections via a single PCI Express slot, with data rates up to 921Kbps. Perfect for use with a broad variety of serial peripherals including printers, scanners, industrial controls and more.
A complete 8 port RS232 Serial card solution, the adapter includes 2 breakout cables – each with 4 DB9 connectors for a total of 8 ports. The perfect choice for adding several additional ports when space is at a premium, the serial adapter card is designed to fit in small/micro form factor computer cases. Plus, this versatile card also includes 2 standard profile brackets for compatibility with full size cases.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Includes 2 breakout cables, helping to avoid crowded connections
- Pre-configured with low profile brackets and ships complete with 2 standard profile brackets for compatibility with almost any computer case
- Easy to install and use with full step-by-step instructions for hassle-free integration into your system
Key features
- Host interface: PCIe
- Output interface: Serial
- Serial ports quantity: 8
- Serial interface type: RS-232
- Internal: Yes
- Certification: TAA, FCC, CE
- Chipset: PLX/Oxford - OXmPCI952
- Baud rate: 921.6 Kbit/s
- FIFO (First In, First Out): 128 B
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity bit: Even, No, Odd
- Flow Control type: RTS/CTS, XON/XOFF
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -20 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
- Compliance certificates: RoHS
- Width: 20 mm
- Depth: 157 mm
- Height: 80 mm
- Weight: 559 g
Specifications
Design
| Internal | Yes |
|---|---|
| Certification | TAA, FCC, CE |
Features
| Chipset | PLX/Oxford - OXmPCI952 |
|---|---|
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 128 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, No, Odd |
| Flow Control type | RTS/CTS, XON/XOFF |
Logistics data
| Products per master (outer) case | 50 pc(s) |
|---|---|
| Master (outer) case width | 755 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 240 mm |
Packaging data
| Drivers included | Yes |
|---|---|
| Manual | Yes |
| Package width | 159 mm |
| Package depth | 285 mm |
| Package height | 52 mm |
| Package weight | 720 g |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Host interface | PCIe |
|---|---|
| Output interface | Serial |
| Serial ports quantity | 8 |
| Serial interface type | RS-232 |
System requirements
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|---|---|
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
Weight & dimensions
| Width | 20 mm |
|---|---|
| Depth | 157 mm |
| Height | 80 mm |
| Weight | 559 g |
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
