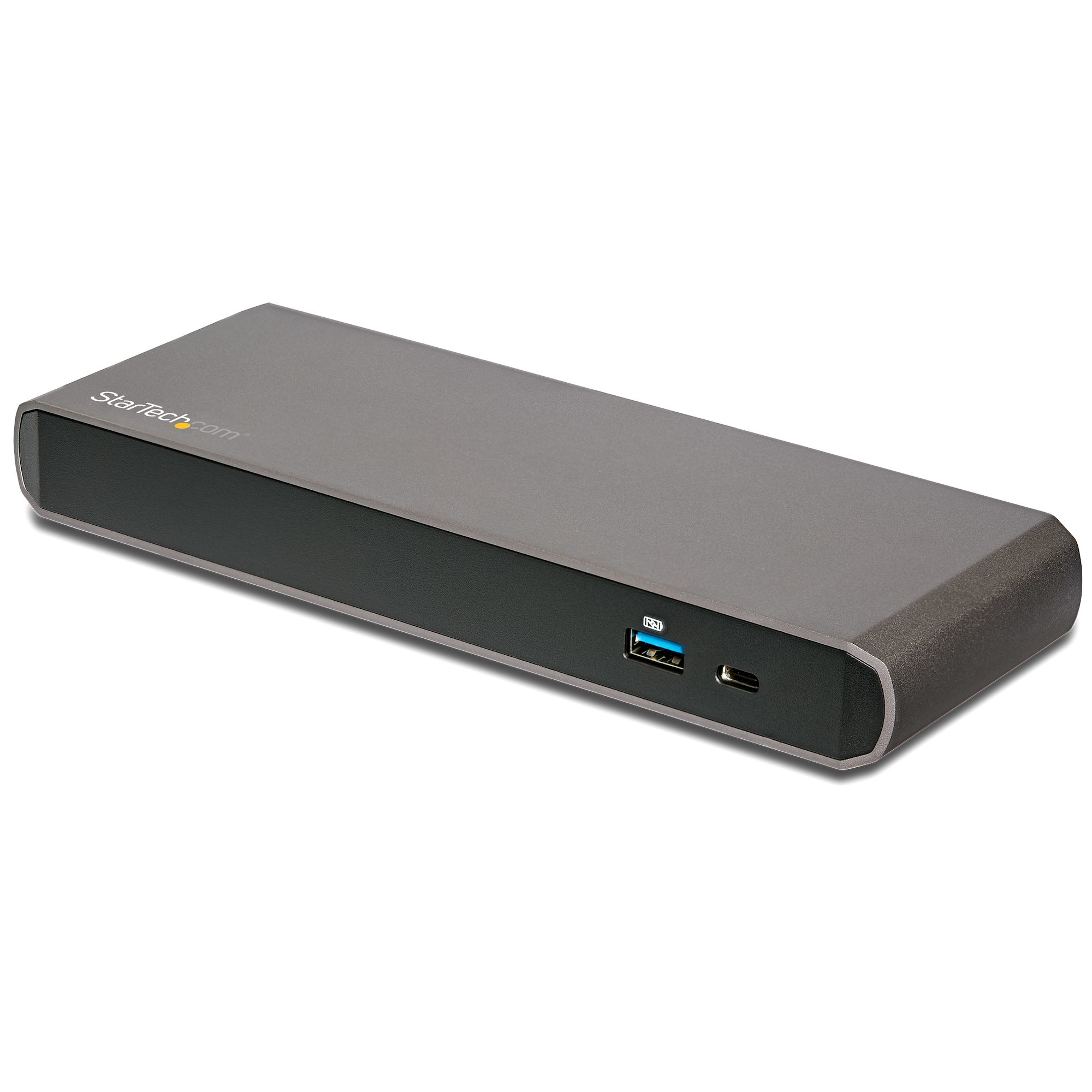

StarTech.com DOCK - THUNDERBOLT 3 DUAL 4K 85W PD
THUNDERBOLT 3 DOCKING STATION COMPATIBLE WITH WINDOWS/MACOS SUPPORTS DUAL 4K HD DISPLAYS 85W POWER DELIVERY - USB-C TO DP CABLE FOR SECOND DISPLAY
- Brand: StarTech.com
- Category: Notebook/tablet Accessories
- SKU: 4126826
- MPN: TB3DK2DPPD
StarTech.com
StarTech.com Thunderbolt 3 Dock, Dual Monitor 4K 60Hz TB3 Laptop…
- SKU
- CNZ-IM-022073
- MPN
- TB3DK2DPPD
- Rating
- No reviews yet
Overview
Laptop Docking Station | Mac & Windows® | USB-C to DP Cable | 85W PD
Easily transform your Thunderbolt 3™ equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features three USB 3.0 ports, 85W Power Delivery to charge your laptop.
Create a Dual-4K Workstation
Great for video editing and other Ultra HD tasks, this dual-4K monitor docking station supports 40Gbps speeds and 4K resolution on two monitors. Run resource-demanding applications on two independent displays, without draining system resources.
Connect your laptop to:
• 1 x 4K monitor via the DP Port
• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)
OR
• 1 x 5K monitor via the DP & TB3 USB-C port
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Connect your Devices
With three USB 3.0 ports, the Thunderbolt 3 docking station gives you plenty of ports for the latest and legacy devices. Connect USB devices like flash drives using the two Type-A ports. Keep your mobile device charged with the dock's Fast-Charge and sync port. Connect a USB-C device with the USB-C port ( 5Gbps - data only ).
Plenty of Charging Power
The Thunderbolt 3 docking station features a 170W power adapter supporting Power Delivery to power and charge (up to 85W) your laptop, while powering all your devices connected to the dock. This eliminates the need to use two separate power adapters for your laptop and dock.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
TB3DK2DPPD features a rugged aluminum casing and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Easily transform your Thunderbolt 3™ equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features three USB 3.0 ports, 85W Power Delivery to charge your laptop.
Create a Dual-4K Workstation
Great for video editing and other Ultra HD tasks, this dual-4K monitor docking station supports 40Gbps speeds and 4K resolution on two monitors. Run resource-demanding applications on two independent displays, without draining system resources.
Connect your laptop to:
• 1 x 4K monitor via the DP Port
• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)
OR
• 1 x 5K monitor via the DP & TB3 USB-C port
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Connect your Devices
With three USB 3.0 ports, the Thunderbolt 3 docking station gives you plenty of ports for the latest and legacy devices. Connect USB devices like flash drives using the two Type-A ports. Keep your mobile device charged with the dock's Fast-Charge and sync port. Connect a USB-C device with the USB-C port ( 5Gbps - data only ).
Plenty of Charging Power
The Thunderbolt 3 docking station features a 170W power adapter supporting Power Delivery to power and charge (up to 85W) your laptop, while powering all your devices connected to the dock. This eliminates the need to use two separate power adapters for your laptop and dock.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
TB3DK2DPPD features a rugged aluminum casing and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 85 W
- DisplayPorts quantity: 1
- Thunderbolt 3 ports quantity: 2
- Microphone in: Yes
- Headphone outputs: 1
- DC-in jack: Yes
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Card reader integrated: No
- Data transfer rate: 40 Gbit/s
- Maximum digital resolution: 4096 x 2160 pixels
- Number of displays supported: 2
- Product colour: Black, Grey
- Charging function: Yes
- UASP support: Yes
- Housing material: Aluminium, Plastic
Specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| Input current | 2.5 A |
| Power supply type | External |
| Output voltage | 20 V |
| Output current | 8.5 A |
| Power consumption (typical) | 170 W |
| Compatible power plug types | AU, JP, US |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Software
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
Performance
| Card reader integrated | No |
|---|---|
| Data transfer rate | 40 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
| Product colour | Black, Grey |
| Charging function | Yes |
| UASP support | Yes |
| Housing material | Aluminium, Plastic |
| Brand compatibility | Any brand |
| Certification | CE, FCC, REACH |
Logistics data
| Products per master (outer) case | 4 pc(s) |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 355 mm |
| Master (outer) case height | 175 mm |
Other features
| Cable length | 0.52 m |
|---|---|
| Chipset | Intel - Alpine Ridge DSL6540, Fresco - FL1100EX, Texas Instruments - PCM2912A, Intel - WGI210AT, Texas Instruments - TPS65983 |
| USB data transfer rates | 480,5000 Mbit/s |
Packaging data
| Package width | 148 mm |
|---|---|
| Package depth | 248 mm |
| Package height | 88 mm |
| Package weight | 1.5 kg |
Packaging content
| Cables included | AC, Thunderbolt, USB Type-C |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 80 mm |
|---|---|
| Depth | 220 mm |
| Height | 27 mm |
| Weight | 450 g |
Operational conditions
| Operating temperature (T-T) | 5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
