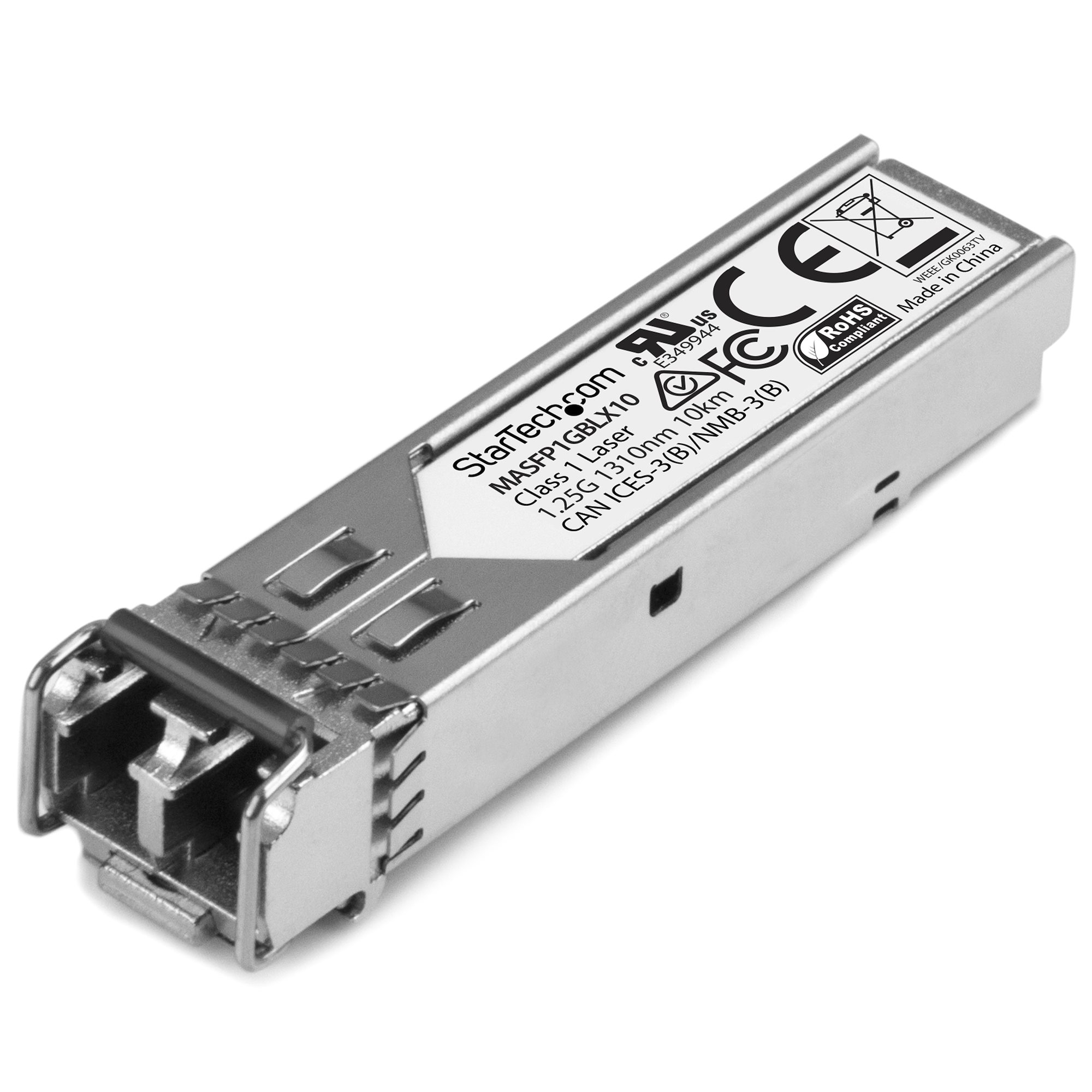

STARTECH.COM GB FIBER SFP - CISCO MERAKI MA-SFP-1GB-LX10 COMPATIBLE - SM, LTW
Networking > Network Accessories
- Brand: STARTECH
- Category: Networking
- SKU: MASFP1GBLX10
- MPN: MASFP1GBLX10
STARTECH
StarTech.com Cisco Meraki MA-SFP-1GB-LX10 Compatible SFP Transceiver…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−12%
Overview
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The MASFP1GBLX10 is a Cisco Meraki MA-SFP-1GB-LX10 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (100Mbps) connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The MASFP1GBLX10 is a Cisco Meraki MA-SFP-1GB-LX10 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (100Mbps) connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: LX
- Maximum transfer distance: 10000 m
- Wavelength: 1310 nm
- Networking standards: IEEE 802.3z
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Housing material: Aluminium
- Hot-swap: Yes
- Mean time between failures (MTBF): 3092408 h
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 13.7 mm
- Depth: 56.6 mm
- Height: 12.5 mm
Specifications
Power
| Power consumption (typical) | 1 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3092408 h |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR |
Logistics data
| Master (outer) case width | 350 mm |
|---|---|
| Master (outer) case length | 410 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 350 mm |
| Products per master (outer) case | 100 pc(s) |
| Country of origin | China |
Packaging data
| Package width | 118 mm |
|---|---|
| Package depth | 93 mm |
| Package height | 33 mm |
| Package weight | 46 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 13.7 mm |
|---|---|
| Depth | 56.6 mm |
| Height | 12.5 mm |
| Weight | 20 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Questions
$112.69inc GST
