StarTech.com HDMI Over CAT5/CAT6 Extender - 165 ft

HDMI Over CAT5/CAT6 Extender with Power Over Cable (POC) - 165 ft (50m) HDMI Video/Audio Over Dual Ethernet Cable Extender - HDMI over Network Cable Extender - 1080p/1920x1080

  • Brand: StarTech.com
  • Category: Switches
  • SKU: 2485497
  • MPN: ST121SHD50
StarTech.com

StarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable -…

SKU
CNZ-IM-043746
MPN
ST121SHD50

Overview

Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver

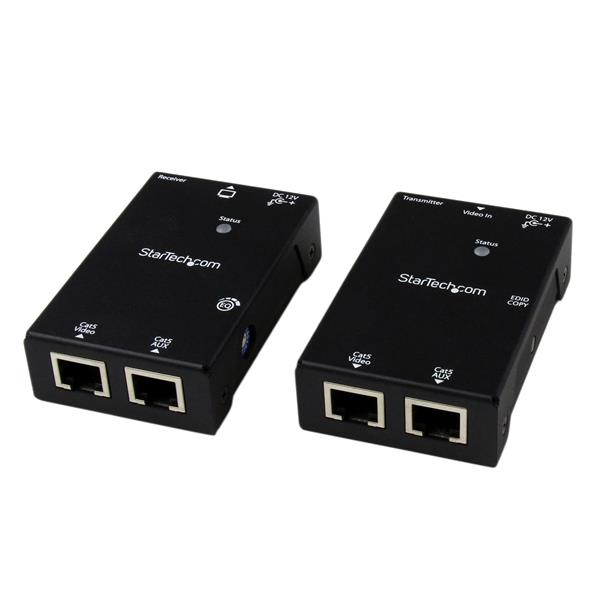

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.

With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.

For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.

The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

The StarTech.com Advantage

Key features

  • Type: AV transmitter & receiver
  • Maximum resolution: 1920 x 1080 pixels
  • Cable types supported: Cat5e, Cat6
  • Maximum transfer distance: 50 m
  • LED indicators: Power
  • Supported video modes: 1080i, 1080p
  • Supported graphics resolutions: 1920 x 1080 (HD 1080)
  • Material: Aluminium
  • Rack mounting: Yes
  • Daisy chain: No
  • Product colour: Black
  • Certification: CE, FCC, REACH, TAA
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 input ports: 2
  • RJ-45 output ports: 2
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • DC-in jack: Yes
  • AC input voltage: 100-240 V
  • Operating voltage: 12 V
  • Input current: 0.5 A
  • Output current: 1.5 A
  • Power consumption (typical): 18 W

Specifications

Power

AC input voltage100-240 V
Operating voltage12 V
Input current0.5 A
Output current1.5 A
Power consumption (typical)18 W
External power adapterYes
Power plug typeType M

Features

TypeAV transmitter & receiver
Maximum resolution1920 x 1080 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance50 m
LED indicatorsPower
Supported video modes1080i, 1080p
Supported graphics resolutions1920 x 1080 (HD 1080)
MaterialAluminium
Rack mountingYes
Daisy chainNo
Product colourBlack
CertificationCE, FCC, REACH, TAA

Logistics data

Master (outer) case width320 mm
Master (outer) case length410 mm
Master (outer) case height260 mm
Products per master (outer) case12 pc(s)

Packaging data

Package width157 mm
Package depth237 mm
Package height65 mm
Package weight935 g

Packaging content

AC adapter includedYes
Cables includedHDMI
ManualYes
Mounting brackets includedYes

Technical details

Compliance certificatesRoHS

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RJ-45 input ports2
RJ-45 output ports2
HDMI in1
Number of HDMI outputs1
DC-in jackYes

Weight & dimensions

Receiver dimensions (WxDxH)51 x 80 x 21 mm
Receiver weight157 g
Transmitter dimensions (WxDxH)51 x 80 x 21 mm
Transmitter weight157 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
