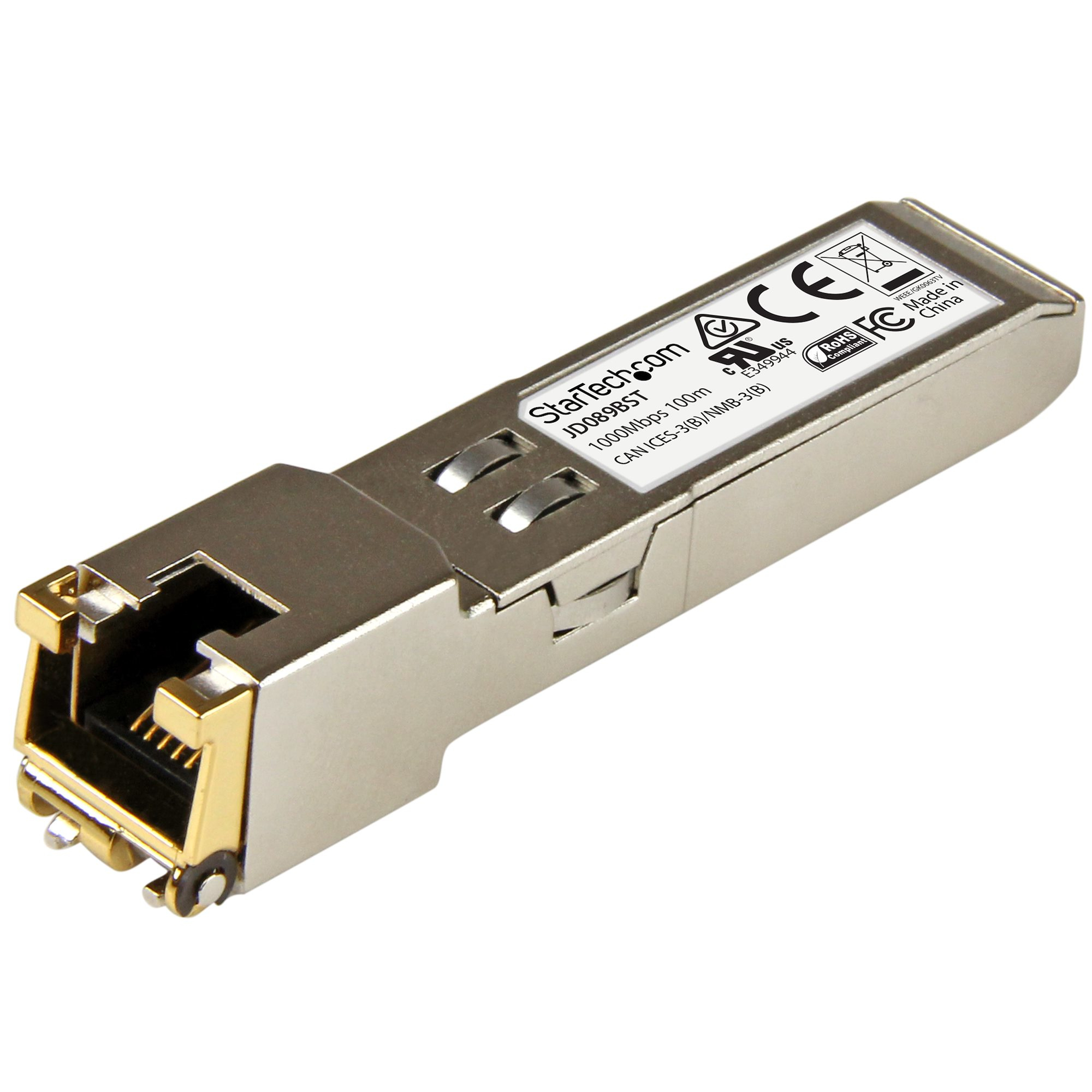

StarTech.com HP JD089B 1000Base-T SFP Transceiver
HP JD089B Compatible SFP - Gigabit RJ45 Copper 1000Base-T SFP Transceiver Module - 100 m (328 ft) - Mini-GBIC with Lifetime Warranty - Copper SFP for 1000Base-T networks
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3572274
- MPN: JD089BST
StarTech.com
StarTech.com HP JD089B Compatible SFP Transceiver Module -…
- SKU
- CNZ-IM-042416
- MPN
- JD089BST
- Rating
- No reviews yet
Overview
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The JD089BST is an HPE JD089B compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The JD089BST is an HPE JD089B compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Copper
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: SFP
- Maximum transfer distance: 100 m
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Ethernet LAN (RJ-45) ports: 1
- Duplex system: Full
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Digital Diagnostics Monitoring (DDM): No
- Product colour: Silver
- Housing material: Aluminium
- Hot-swap: Yes
- Mean time between failures (MTBF): 4655371 h
- Power consumption (typical): 1.3 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 13.7 mm
- Depth: 68 mm
- Height: 13.8 mm
- Weight: 25 g
Specifications
Power
| Power consumption (typical) | 1.3 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4655371 h |
Performance
| SFP transceiver type | Copper |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Maximum transfer distance | 100 m |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN (RJ-45) ports | 1 |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR |
Logistics data
| Master (outer) case width | 350 mm |
|---|---|
| Master (outer) case length | 410 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 355 mm |
| Products per master (outer) case | 100 pc(s) |
| Country of origin | China |
Packaging data
| Package width | 119 mm |
|---|---|
| Package depth | 93 mm |
| Package height | 35 mm |
| Package weight | 54 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 13.7 mm |
|---|---|
| Depth | 68 mm |
| Height | 13.8 mm |
| Weight | 25 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Questions
$111.54inc GST
