StarTech.com KVM Switch DisplayPort 4K 60Hz
DisplayPort KVM Switch - 4 Port - 4K 60Hz - DisplayPort 1.2 KVM - Computer Switch Box - DisplayPort Switch - USB KVM Switch
- Brand: StarTech.com
- Category: Switches
- SKU: 4127082
- MPN: SV431DPUA2
StarTech.com
StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single…
- SKU
- CNZ-IM-043716
- MPN
- SV431DPUA2
- Rating
- No reviews yet
−22%
Overview
DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

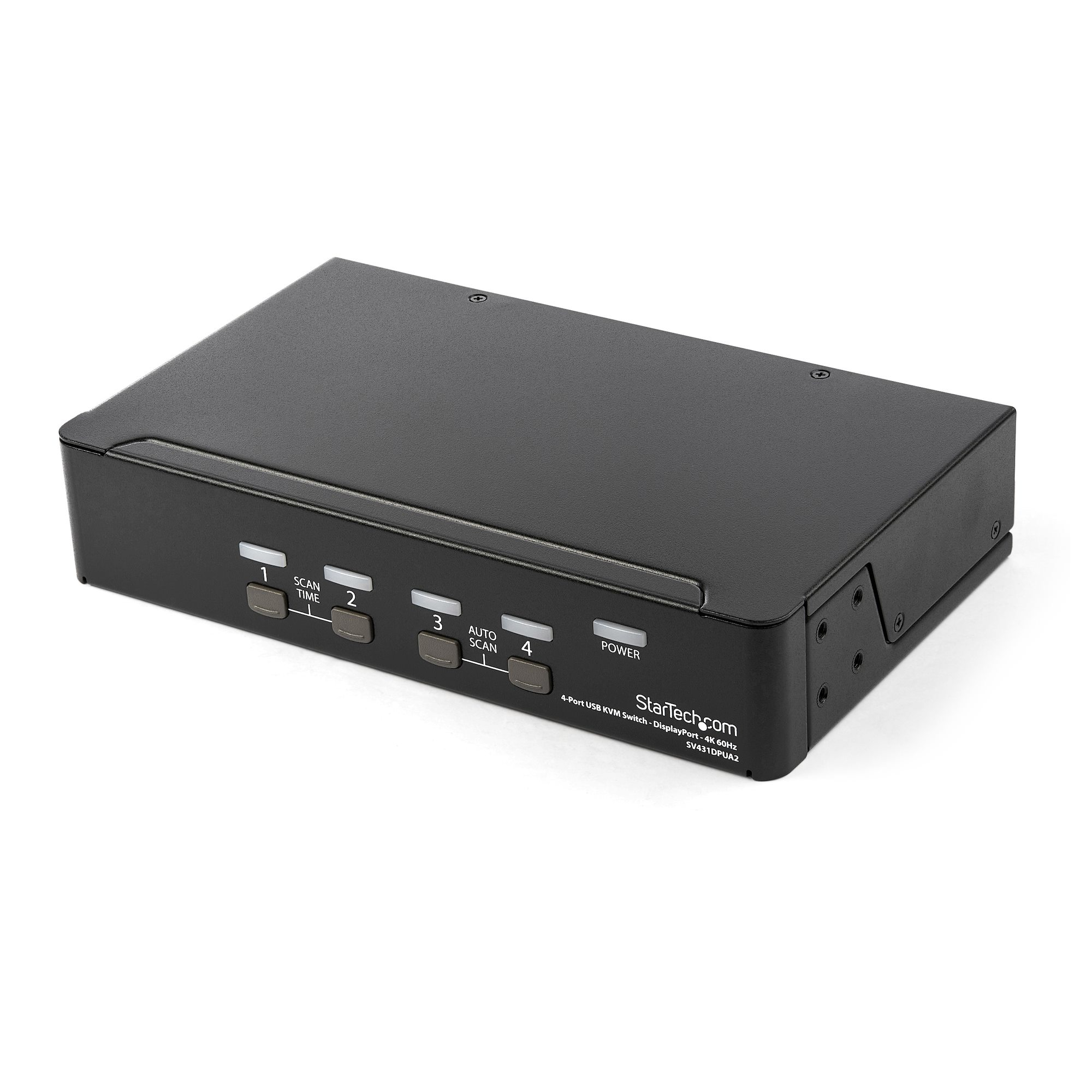

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Number of computers controlled: 4
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- DisplayPorts quantity: 5
- USB 2.0 Type-B ports quantity: 4
- Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- Console USB ports quantity: 4
- Audio connections: Yes
- Headphone outputs: 5
- Number of microphone inputs: 5
- DC-in jack: Yes
- Ethernet LAN: No
- HD type: 4K Ultra HD
- Maximum resolution: 3840 x 2160 pixels
- Data transfer rate (max): 0.48 Gbit/s
- Scan interval: 3,8,15,30 s
- Plug and Play: Yes
- Daisy chain: No
- Number of users: 1 user(s)
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Housing material: Steel
Specifications
Power
| Input voltage | 100 - 240 V |
|---|---|
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK, US |
Design
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 138327 h |
| Certification | CE, FCC, TAA, REACH |
Display
| On Screen Display (OSD) | Yes |
|---|
Network
| Ethernet LAN | No |
|---|
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 0.48 Gbit/s |
| Scan interval | 3,8,15,30 s |
| Plug and Play | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
Logistics data
| Harmonized System (HS) code | 85176200 |
|---|---|
| Master (outer) case width | 433 mm |
| Master (outer) case length | 545 mm |
| Master (outer) case height | 258 mm |
| Products per master (outer) case | 6 pc(s) |
Other features
| Audio support | Yes |
|---|---|
| IP control | No |
Packaging data
| Package width | 212 mm |
|---|---|
| Package depth | 409 mm |
| Package height | 87 mm |
| Package weight | 1.6 kg |
Sustainability
| Compliance certificates | RoHS |
|---|
Packaging content
| Quick installation guide | Yes |
|---|---|
| AC adapter included | Yes |
| Rubber feet | Yes |
Ports & interfaces
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 5 |
| USB 2.0 Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 131 mm |
|---|---|
| Depth | 220 mm |
| Height | 45 mm |
| Weight | 1 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 40% |
