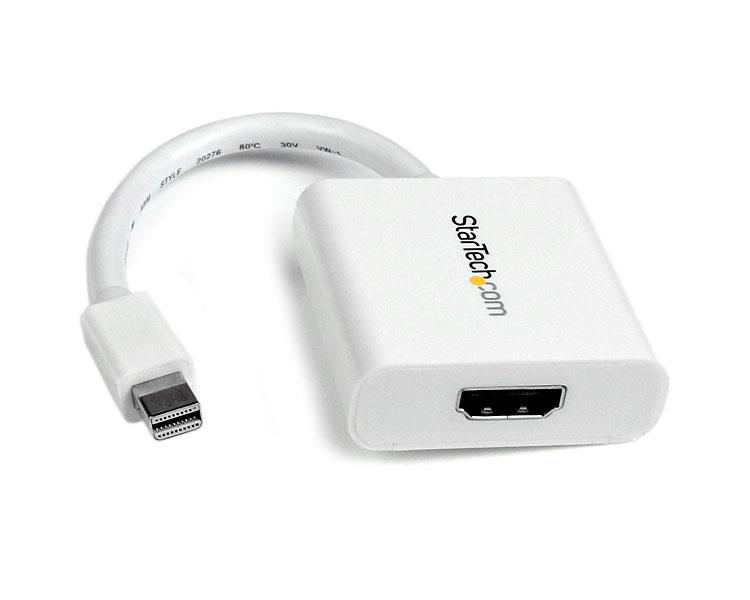

StarTech.com Mini DisplayPort to HDMI Adapter - White
Mini DisplayPort to HDMI Video Adapter Converter 1920x1200 - White Mini DP to HDMI Adapter M/F
- Brand: StarTech.com
- Category: Video Cables
- SKU: 1991368
- MPN: MDP2HDW
StarTech.com
StarTech.com Mini DisplayPort to HDMI Adapter - mDP to HDMI Video…
- SKU
- CNZ-IM-042895
- MPN
- MDP2HDW
- Rating
- No reviews yet
Overview
Connect an HDMI®-capable display to a Mini-DisplayPort®-equipped PC or Mac® computer
The MDP2HDW passive Mini DisplayPort® to HDMI® Video Adapter/Converter (White) offers a convenient HDMI/Mini-DisplayPort link, which enables you to connect an HDMI computer monitor or television to a device with a Mini-DisplayPort output (such as any Microsoft® Surface™ Pro with mDP), while saving the expense of upgrading the monitor for compatibility.
The adapter supports high resolution output up to 1920x1200, offering a high quality solution for mirroring or extending a computer desktop onto a second display.
This versatile Mini DisplayPort to HDMI adapter requires a multimode DisplayPort port (DisplayPort ++) connection to function, and is compatible with Intel® Thunderbolt™ output when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
The MDP2HDW passive Mini DisplayPort® to HDMI® Video Adapter/Converter (White) offers a convenient HDMI/Mini-DisplayPort link, which enables you to connect an HDMI computer monitor or television to a device with a Mini-DisplayPort output (such as any Microsoft® Surface™ Pro with mDP), while saving the expense of upgrading the monitor for compatibility.
The adapter supports high resolution output up to 1920x1200, offering a high quality solution for mirroring or extending a computer desktop onto a second display.
This versatile Mini DisplayPort to HDMI adapter requires a multimode DisplayPort port (DisplayPort ++) connection to function, and is compatible with Intel® Thunderbolt™ output when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Cable length: 0.12 m
- Connector 1: Mini-DisplayPort
- Connector 2: HDMI
- Connector 1 gender: Male
- Connector 2 gender: Female
- HDMI version: 1.4
- HDCP: Yes
- HDCP version: 1.4
- DisplayPort version: 1.2
- DisplayPort Content Protection (DPCP): Yes
- Maximum resolution: 1920 x 1200 pixels
- Supported video modes: 1080p
- Product colour: White
- Chipset: NXP - PTN3361
- Supported audio channels: 7.1
- Plug and Play: Yes
- Converter type: Passive video converter
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 40 - 85%
- Compliance certificates: CE, RoHS
- Weight: 24 g
Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 0.12 m |
| Connector 1 | Mini-DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
| DisplayPort version | 1.2 |
| DisplayPort Content Protection (DPCP) | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Product colour | White |
| Chipset | NXP - PTN3361 |
| Supported audio channels | 7.1 |
| Plug and Play | Yes |
| Converter type | Passive video converter |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 270 mm |
| Master (outer) case length | 455 mm |
| Master (outer) case height | 355 mm |
| Products per master (outer) case | 200 pc(s) |
Other features
| Material | Plastic |
|---|
Packaging data
| Package width | 160 mm |
|---|---|
| Package depth | 240 mm |
| Package height | 20 mm |
| Package weight | 50 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Weight | 24 g |
|---|---|
| Width | 40 mm |
| Depth | 170 mm |
| Height | 15 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
Questions
