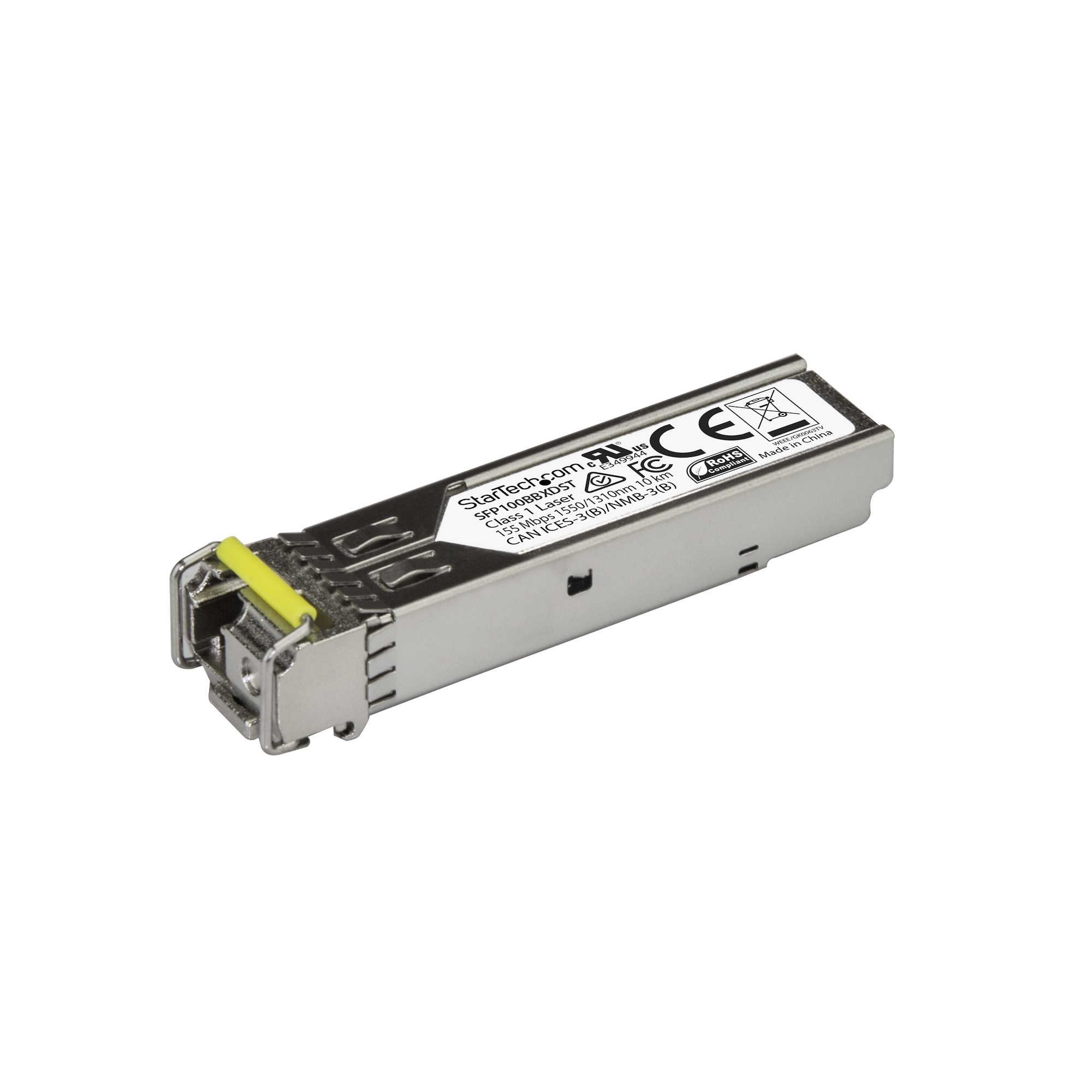

StarTech.com MSA Compliant 100Base-BX SFP Downstream
MSA Compliant 100Base-BX SFP (Downstream) - 100 Mbps Fiber SFP Module w/ DDM / DOM - Single-mode SFP LC - 10km /6.2 mi - 1550nmTx/1310nmRx - Lifetime Warranty - SFP Transceiver
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3715536
- MPN: SFP100BBXDST
StarTech.com
StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-BX~MSA…
- SKU
- CNZ-IM-021519
- MPN
- SFP100BBXDST
- Rating
- No reviews yet
Overview
100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFP100BBXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXUST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1550nmTx/1310nmRx
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The SFP100BBXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXUST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1550nmTx/1310nmRx
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 155 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: CXP, LC
- SFP transceiver standard: BX
- Maximum transfer distance: 10000 m
- Tx power (min): 1550 dBmW
- Rx power (min): 1310 dBmW
- Networking standards: IEEE 802.3u
- Duplex system: Full, Half
- Digital Diagnostics Monitoring (DDM): Yes
- Wavelength-division multiplexing (WDM): Yes
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 16 mm
- Depth: 60 mm
Specifications
Power
| Power consumption (typical) | 1 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-Plug support | Yes |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | CXP, LC |
| SFP transceiver standard | BX |
| Maximum transfer distance | 10000 m |
| Tx power (min) | 1550 dBmW |
| Rx power (min) | 1310 dBmW |
| Networking standards | IEEE 802.3u |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | Yes |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR |
Logistics data
| Master (outer) case width | 193 mm |
|---|---|
| Master (outer) case length | 307 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 162 mm |
| Products per master (outer) case | 20 pc(s) |
Packaging data
| Package width | 92 mm |
|---|---|
| Package depth | 117 mm |
| Package height | 30 mm |
| Package weight | 47 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 16 mm |
|---|---|
| Depth | 60 mm |
| Height | 11 mm |
| Weight | 18 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
