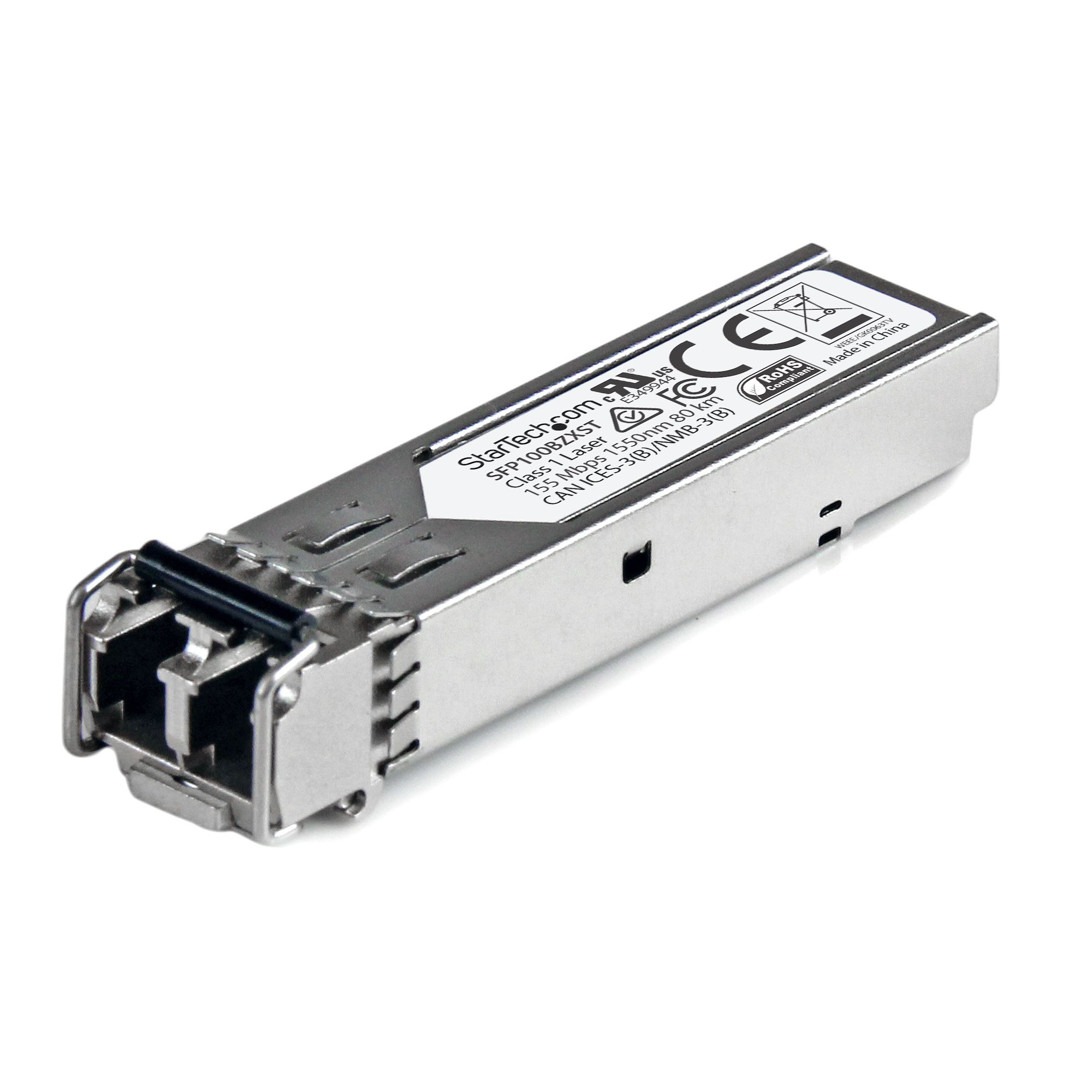

StarTech.com MSA Compliant 100Base-ZX SFP - SM 80 km
MSA Compliant 100Base-ZX SFP - 100 Mbps Fiber SFP Module w/ DDM / DOM - Single-mode SFP LC - 80km /49.7 mi - 1550nm - 100Base-ZX SFP with Lifetime Warranty - SFP Transceiver
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3715541
- MPN: SFP100BZXST
StarTech.com
StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-ZX~MSA…
- SKU
- CNZ-IM-021524
- MPN
- SFP100BZXST
- Rating
- No reviews yet
Overview
100 Mbps | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty
The SFP100BZXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-ZX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1550nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The SFP100BZXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-ZX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1550nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 155 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: ZX
- Maximum transfer distance: 80000 m
- Wavelength: 1550 nm
- Networking standards: IEEE 802.3u
- Duplex system: Full, Half
- Wavelength-division multiplexing (WDM): No
- Product colour: Silver
- Housing material: Aluminium
- Hot-Plug support: Yes
- Power consumption (typical): 1 W
- Compliance certificates: RoHS
- Certification: CE, FCC, UR
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 14 mm
- Depth: 60 mm
- Height: 16 mm
- Weight: 18 g
Specifications
Power
| Power consumption (typical) | 1 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-Plug support | Yes |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | ZX |
| Maximum transfer distance | 80000 m |
| Wavelength | 1550 nm |
| Networking standards | IEEE 802.3u |
| Duplex system | Full, Half |
| Wavelength-division multiplexing (WDM) | No |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR |
Logistics data
| Master (outer) case width | 200 mm |
|---|---|
| Master (outer) case length | 302 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 170 mm |
| Products per master (outer) case | 20 pc(s) |
Packaging data
| Package width | 95 mm |
|---|---|
| Package depth | 118 mm |
| Package height | 34 mm |
| Package weight | 47 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 14 mm |
|---|---|
| Depth | 60 mm |
| Height | 16 mm |
| Weight | 18 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
