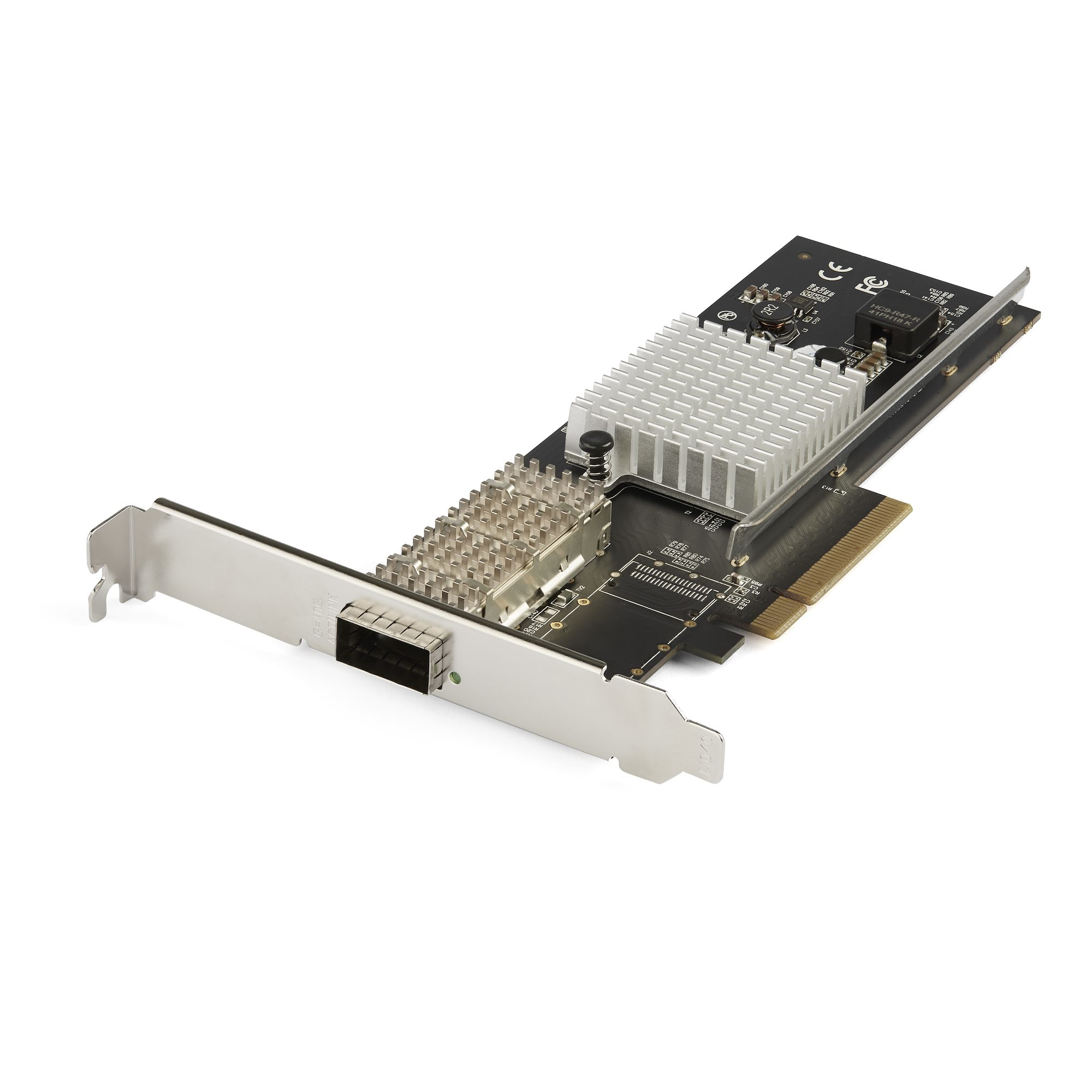

StarTech.com QSFP+ Server Network Card - PCIe 40Gbps

QSFP+ Server Network Card - PCIe 40Gbps - Converged Fiber NIC Adapter - Intel XL710 Chip (PEX40GQSFPI)

  • Brand: StarTech.com
  • Category: Cables & Connectivity
  • SKU: 4520317
  • MPN: PEX40GQSFPI
StarTech.com

StarTech.com 1-Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+…

SKU
CNZ-IM-022056
MPN
PEX40GQSFPI

Overview

Converged Fiber NIC Adapter | PCIe | 40Gbps | 1x QSFP+ Slot

Get fast, high-bandwidth connectivity with this QSFP+ server network card. The converged network adapter adds an open QSFP+ slot to your server or workstation. The 40Gb NIC features an Intel controller and provides reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.

Increase Your Network Speed

This QSFP+ server NIC lets you take advantage of the speed and stability of a 40 Gigabit Ethernet network, with data transfers of up to 40Gbps.

Add Scalable Network Connections

With an open QSFP+ slot, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.

Enhance Your Network Capabilities

The 40Gb NIC uses an Intel XL710 chipset, providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:



Mac Address Pass-Through Utility : To improve network security.



Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The PEX40GQSFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

  • Connectivity technology: Wired
  • Host interface: PCI Express
  • Interface: Fiber
  • Fiber ports quantity: 1
  • Fiber optic connector: QSFP+
  • Maximum data transfer rate: 40000 Mbit/s
  • Networking standards: IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3x
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • VLAN tagging: Yes
  • Product colour: Black
  • Internal: Yes
  • Chipset: Intel® XL710-BM1
  • LED indicators: Yes
  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
  • Operating temperature (T-T): 0 - 57 °C
  • Storage temperature (T-T): -20 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Width: 121 mm
  • Depth: 181 mm
  • Height: 20 mm
  • Weight: 112 g
  • Low-profile bracket: Yes

Specifications

Design

Product colourBlack
InternalYes
ChipsetIntel® XL710-BM1
LED indicatorsYes

Network

Maximum data transfer rate40000 Mbit/s
Networking standardsIEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3x
Jumbo frames supportYes
Jumbo frames9000
VLAN taggingYes

Logistics data

Harmonized System (HS) code85176990
Master (outer) case width420 mm
Master (outer) case length440 mm
Master (outer) case height320 mm
Products per master (outer) case40 pc(s)

Other features

Quick start guideYes
Flow control supportYes

Packaging data

Low-profile bracketYes
Package width114 mm
Package depth207 mm
Package height38 mm
Package weight242 g

Technical details

Compliance certificatesCE, RoHS

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceFiber
Fiber ports quantity1
Fiber optic connectorQSFP+

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Weight & dimensions

Width121 mm
Depth181 mm
Height20 mm
Weight112 g

Operational conditions

Operating temperature (T-T)0 - 57 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)5 - 95%
