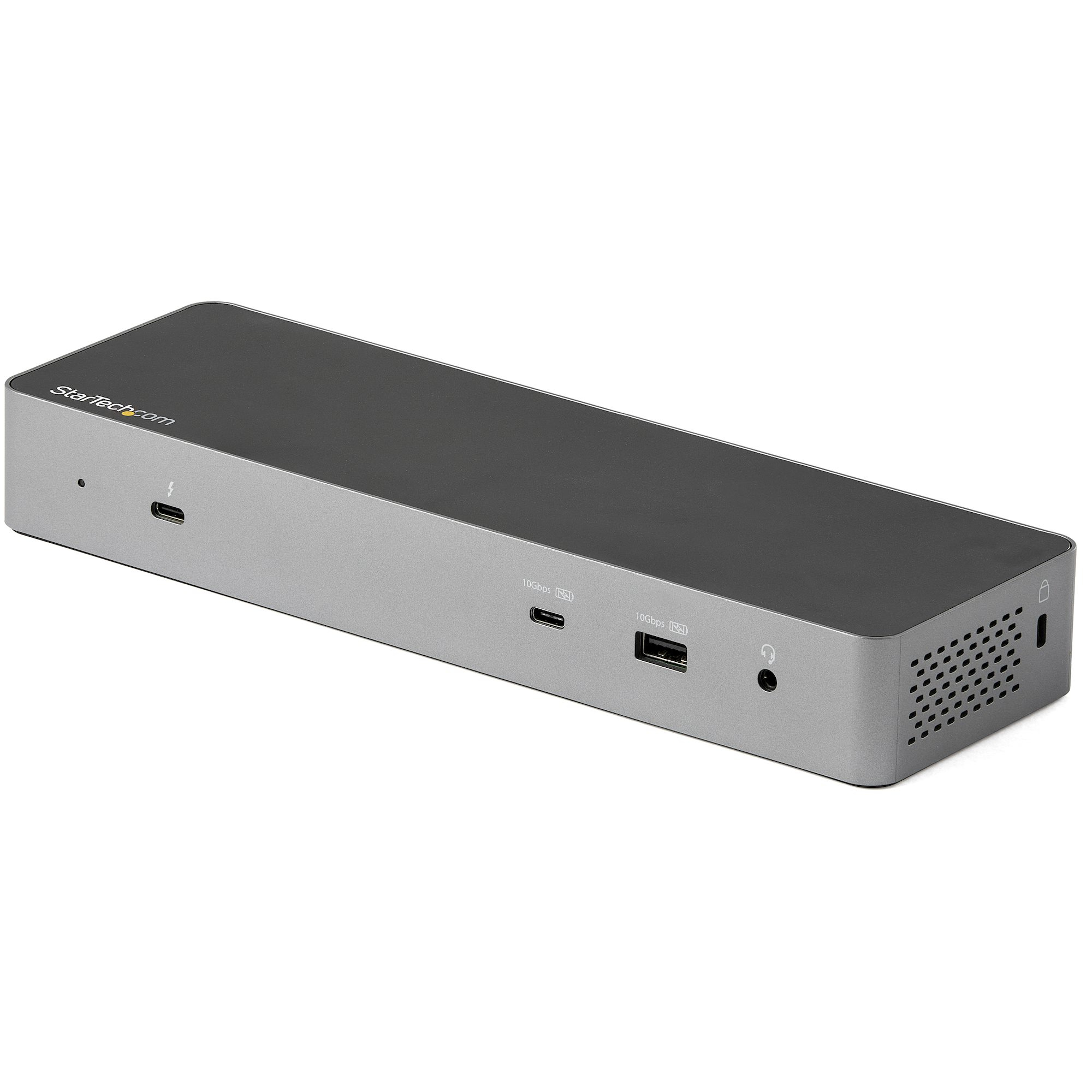

StarTech.com THUNDERBOLT 3 DOCK USB-C /DUAL 4K/96W PD
Thunderbolt 3 Dock w/ USB-C Host Compatibility - Dual 4K 60Hz DisplayPort 1.4 or Dual HDMI 2.0 Monitors - Single 8K - TB3/USB-C Laptop Docking Station - 96W PD 5xUSB - 10Gbps (TB3CDK2DH)
- Brand: StarTech.com
- Category: Video Cables
- SKU: 5236772
- MPN: TB3CDK2DH
StarTech.com
StarTech.com USB C Docking Station for Macbook Pro/Air-M1/M2/M3/M4,…
- SKU
- CNZ-IM-042990
- MPN
- TB3CDK2DH
- Rating
- No reviews yet
−28%
Overview
Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors | macOS & Windows®| 5x USB 3.0 Ports | 96W PD | 0.8 m Cable
A high-performance Thunderbolt™ 3 Certified docking station with USB Type-C® compatibility featuring dual monitor 4K 60Hz DSC support from either dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, Gigabit Ethernet (PXE Boot/Wake-on-LAN) & headset ports.
Flexible Dual Display Outputs
This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:
DisplayPort + DisplayPort
HDMI + HDMI
DisplayPort + HDMI
Resolutions and video outputs are host-dependent.
Thunderbolt 3 or 4 Laptop
Single Monitor
Dual Monitors
Intel Laptops with 11th Gen or Later
8K 30Hz / 5K 60Hz / 4K 60Hz
4K 60Hz
Intel Laptops with 10th Gen or Earlier
5K 60Hz / 4K 60Hz
4K 60Hz
Apple M1 & M2 Pro/Max MacBooks
5K 60Hz / 4K 60Hz
4K 60Hz
Apple M1 & M2 MacBooks
5K 60Hz / 4K 60Hz
Mirrored Display Only
Intel Based MacBook's with Thunderbolt 3
5K 60Hz / 4K 60Hz
4K 60Hz
USB-C Laptop (No Thunderbolt)
Single Monitor
Dual Monitors
Laptops with Intel 10th Gen or Later
(Requires DP 1.4 Alt Mode)
4K 60Hz
4K 30Hz
Laptops with DP 1.2 Alt Mode
4K 30Hz
1080p 60Hz
More Downstream USB Ports
Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:
Front Facing:
• 1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging
• 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging
Back Facing:
• 2x USB 3.2 Gen 1 Type-A (5 Gbps)
• 1x USB 3.2 Gen 2 Type-C (10 Gbps)
Easy to Set Up & Manage
This universal Thunderbolt / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
A high-performance Thunderbolt™ 3 Certified docking station with USB Type-C® compatibility featuring dual monitor 4K 60Hz DSC support from either dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, Gigabit Ethernet (PXE Boot/Wake-on-LAN) & headset ports.
Flexible Dual Display Outputs
This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:
DisplayPort + DisplayPort
HDMI + HDMI
DisplayPort + HDMI
Resolutions and video outputs are host-dependent.
Thunderbolt 3 or 4 Laptop
Single Monitor
Dual Monitors
Intel Laptops with 11th Gen or Later
8K 30Hz / 5K 60Hz / 4K 60Hz
4K 60Hz
Intel Laptops with 10th Gen or Earlier
5K 60Hz / 4K 60Hz
4K 60Hz
Apple M1 & M2 Pro/Max MacBooks
5K 60Hz / 4K 60Hz
4K 60Hz
Apple M1 & M2 MacBooks
5K 60Hz / 4K 60Hz
Mirrored Display Only
Intel Based MacBook's with Thunderbolt 3
5K 60Hz / 4K 60Hz
4K 60Hz
USB-C Laptop (No Thunderbolt)
Single Monitor
Dual Monitors
Laptops with Intel 10th Gen or Later
(Requires DP 1.4 Alt Mode)
4K 60Hz
4K 30Hz
Laptops with DP 1.2 Alt Mode
4K 30Hz
1080p 60Hz
More Downstream USB Ports
Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:
Front Facing:
• 1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging
• 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging
Back Facing:
• 2x USB 3.2 Gen 1 Type-A (5 Gbps)
• 1x USB 3.2 Gen 2 Type-C (10 Gbps)
Easy to Set Up & Manage
This universal Thunderbolt / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
Key features
- Connectivity technology: Wired
- Host interface: Thunderbolt 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 96 W
- HDMI ports quantity: 2
- DisplayPorts quantity: 2
- Combo headphone/mic port: Yes
- Headphone outputs: 1
- DC-in jack: Yes
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 100,1000 Mbit/s
- Card reader integrated: No
- Data transfer rate: 10 Gbit/s
- HD type: 4K Ultra HD
- Maximum digital resolution: 3840 x 2160 pixels
- Number of displays supported: 2
- Maximum refresh rate: 60 Hz
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Product colour: Black, Silver
Specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| Input current | 2.5 A |
| Output voltage | 20 V |
| Output current | 8.5 A |
| Power plug type | Type N |
| Compatible power plug types | AU, JP, US |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
Software
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
|---|---|
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
Performance
| Card reader integrated | No |
|---|---|
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Silver |
Logistics data
| Products per master (outer) case | 6 pc(s) |
|---|---|
| Master (outer) case width | 248 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 320 mm |
| Products per shipping (inner) case | 40 pc(s) |
Other features
| Chipset | C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C |
|---|
Packaging data
| Package width | 305 mm |
|---|---|
| Package depth | 160 mm |
| Package height | 110 mm |
| Package weight | 1.1 kg |
Packaging content
| Cables included | Thunderbolt |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Compliance certificates | CE, RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 220 mm |
|---|---|
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 250 g |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
