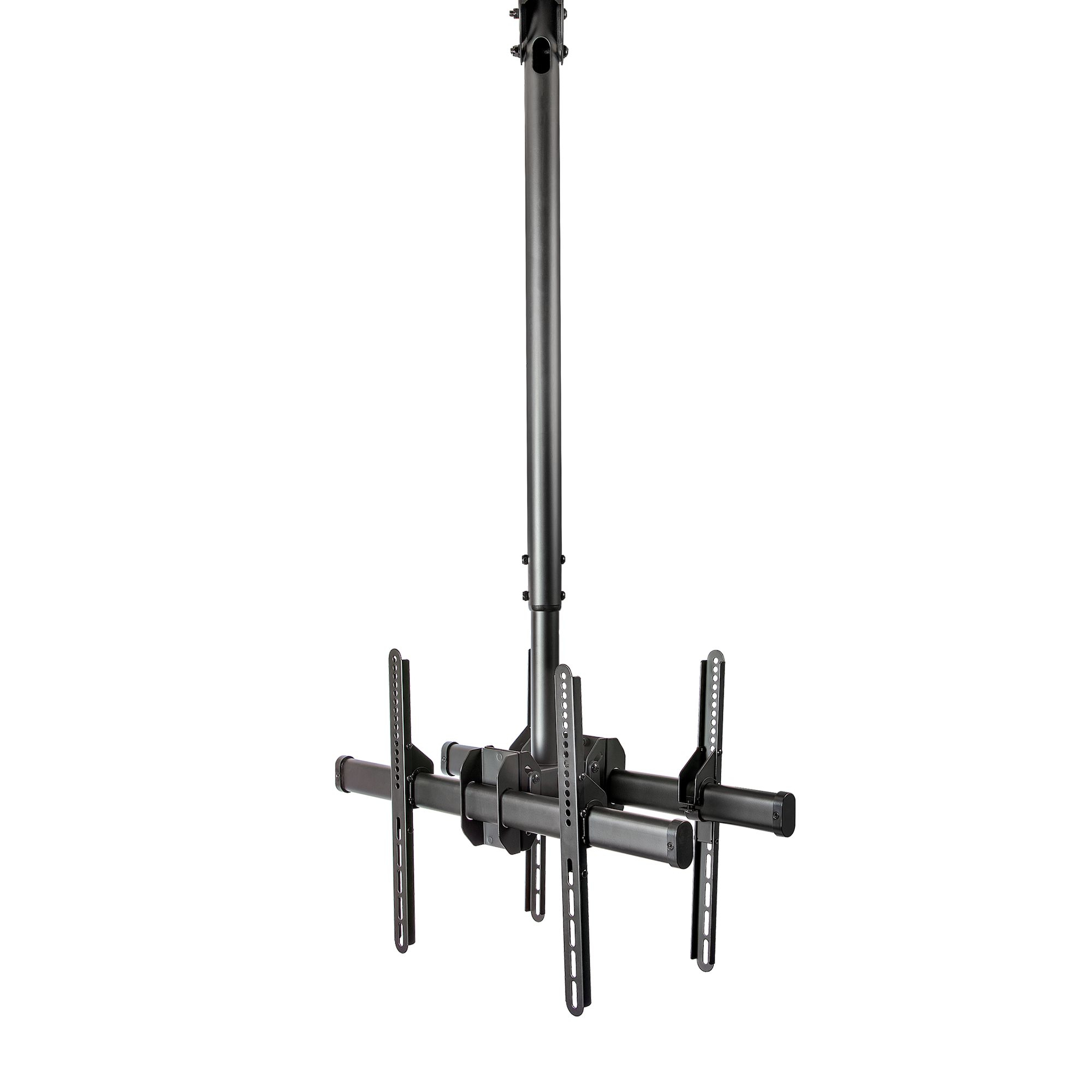

StarTech.com TV Mount - Ceiling - Dual Back to Back
Ceiling TV Mount - Back-to-Back - Dual Screen Mount - For 32in to 75in Displays - 3.5 to 5 Pole - Full Motion - Steel
- Brand: StarTech.com
- Category: Mounts & Brackets
- SKU: 4417721
- MPN: FPCEILBTB
StarTech.com
StarTech.com Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging…
- SKU
- CNZ-IM-044106
- MPN
- FPCEILBTB
- Rating
- No reviews yet
−19%
Overview
Dual Display Mount | Full Motion | For 32" to 75" Displays
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Maximum weight capacity: 90 kg
- Minimum screen size: 81.3 cm (32")
- Number of displays supported: 2
- Maximum weight capacity (per display): 45 kg
- Maximum screen size: 190.5 cm (75")
- Mounting type: Ceiling
- Minimum VESA mount: 200 x 200 mm
- Maximum VESA mount: 600 x 400 mm
- Panel mounting interface: 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
- Height adjustment: Yes
- Height adjustment range: 1060 - 1560 mm
- Tilt angle range: -20 - 5°
- Swivel angle range: -180 - 180°
- Angle of rotation: 360°
- Adjustable: Yes
- Product colour: Black
- Housing material: Steel
- Anti-theft function: No
- Width: 165 mm
- Depth: 680 mm
- Depth (max): 68 cm
- Height: 835 mm
- Weight: 9.8 kg
- Package width: 310 mm
Specifications
Design
| Product colour | Black |
|---|---|
| Housing material | Steel |
| Anti-theft function | No |
Mounting
| Maximum weight capacity | 90 kg |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 45 kg |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
Ergonomics
| Height adjustment | Yes |
|---|---|
| Height adjustment range | 1060 - 1560 mm |
| Tilt angle range | -20 - 5° |
| Swivel angle range | -180 - 180° |
| Angle of rotation | 360° |
| Adjustable | Yes |
Logistics data
| Harmonized System (HS) code | 85299097 |
|---|---|
| Master (outer) case width | 340 mm |
| Master (outer) case length | 965 mm |
| Master (outer) case height | 310 mm |
| Products per master (outer) case | 2 pc(s) |
Packaging data
| Package width | 310 mm |
|---|---|
| Package depth | 935 mm |
| Package height | 145 mm |
| Package weight | 10.8 kg |
Packaging content
| Manual | Yes |
|---|---|
| Screws included | Yes |
| Number of screws | 46 |
| Wrench included | Yes |
| Nuts included | Yes |
| Number of nuts | 2 |
| Washers included | Yes |
| Number of washers included | 12 |
| Spacer included | Yes |
| Number of spacers included | 32 |
Technical details
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Width | 165 mm |
|---|---|
| Depth | 680 mm |
| Depth (max) | 68 cm |
| Height | 835 mm |
| Weight | 9.8 kg |
