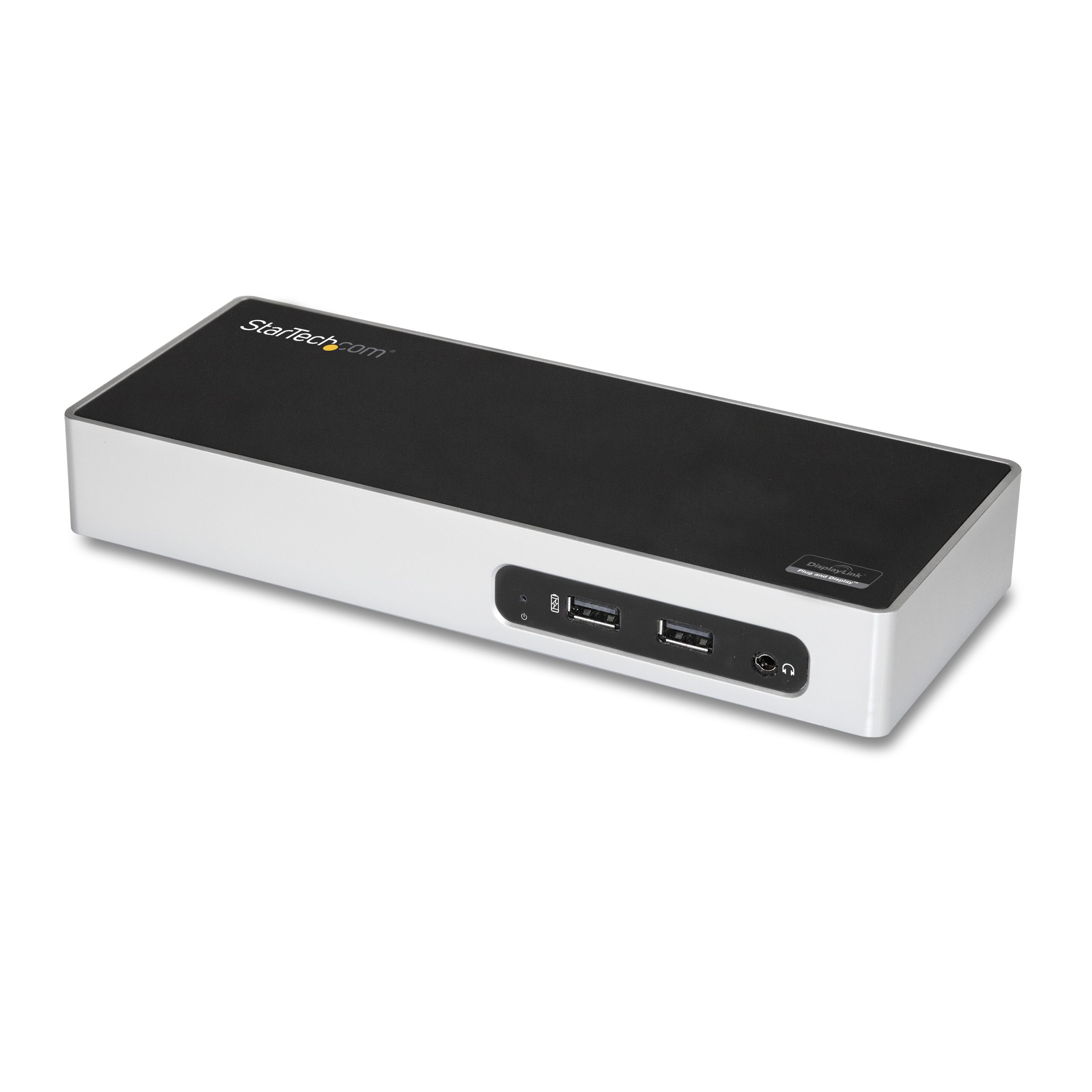

StarTech.com USB 3 DUAL MONITOR DOCK HDMI DVI / VGA
USB 3.0 Dual Monitor Docking Station - HDMI and DVI / VGA - Laptop Docking Station - USB to HDMI - USB to DVI / VGA Port Replicator - USB 3.0 Dock- Dual Video Docking Station
- Brand: StarTech.com
- Category: Notebook/tablet Accessories
- SKU: 3985146
- MPN: DK30ADD
StarTech.com
StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
Overview
Laptop Docking Station | Mac & Windows® | HDMI & DVI | DVI to VGA Adapter
This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.
Enhance Productivity with Dual Video
The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.
With the dual-monitor dock, you can connect:
• 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
• 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz
All the Connections You Need
Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.
DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.
Enhance Productivity with Dual Video
The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.
With the dual-monitor dock, you can connect:
• 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
• 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz
All the Connections You Need
Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.
DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
- HDMI ports quantity: 1
- DVI-I ports quantity: 1
- Combo headphone/mic port: Yes
- Headphone outputs: 1
- Headphone connectivity: 3.5 mm
- DC-in jack: Yes
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Wake-on-LAN ready: Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Card reader integrated: No
- Data transfer rate: 5 Gbit/s
- Maximum digital resolution: 2048 x 1152 pixels
- Number of displays supported: 2
- Product colour: Black, Silver
- On/off switch: Yes
- LED indicators: Power
- UASP support: Yes
Specifications
Power
| Power source type | AC |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 20 V |
| Output current | 2 A |
| Power consumption (typical) | 40 W |
| Power plug type | Type N |
| Compatible power plug types | AU, EU, JP, UK, US |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Software
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
Performance
| Card reader integrated | No |
|---|---|
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 2048 x 1152 pixels |
| Number of displays supported | 2 |
| Product colour | Black, Silver |
| On/off switch | Yes |
| LED indicators | Power |
| UASP support | Yes |
| Housing material | Plastic |
| Brand compatibility | Any brand |
| Certification | CE, FCC, DisplayLink, REACH |
Logistics data
| Products per master (outer) case | 10 pc(s) |
|---|---|
| Master (outer) case width | 315 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 295 mm |
| Harmonized System (HS) code | 84733020 |
Other features
| Cable length | 1 m |
|---|---|
| Chipset | DisplayLink - DL-3900, VIA/VLI - VL813 |
Packaging data
| Package width | 140 mm |
|---|---|
| Package depth | 307 mm |
| Package height | 60 mm |
| Package weight | 800 g |
Packaging content
| Cables included | USB |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 1 |
| DVI-I ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Weight & dimensions
| Width | 86.2 mm |
|---|---|
| Depth | 216 mm |
| Height | 31 mm |
| Weight | 291 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
