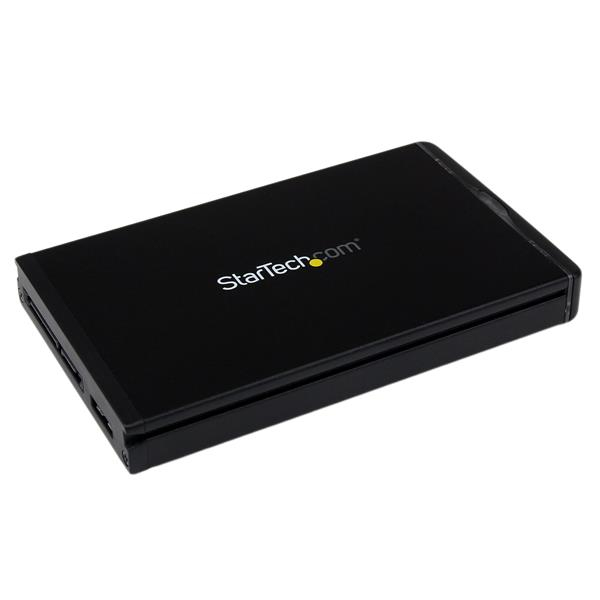

StarTech.com 2.5in USB 3.0 SATA Hard Disk Drive Enclosure for…

SKU: CNZ-IM-022093
MPN: SAT2510U3S
Rating: No reviews yet

StarTech.com USB 3 SATA Enclosure for SAT2510U3REM — StarTech.com

Overview

Turn a 2.5in SATA HDD/SSD into an external USB 3.0 drive while also an additional or replacement removable enclosure for the SAT2510U3REM

The SAT2510U3S 2.5in Hard Disk Drive Enclosure for SAT2510U3REM is a spare SATA drive enclosure for use with the SAT2510U3REM SAT2510U3REM" text="Removable Hard Drive Backup System/Mobile Rack, which simplifies removing/rotating drives, and is also backward compatible with the USB 2.0 model, SAT2510U2REM" text="SAT2510U2REM.

This 2.5" SATA enclosure allows for native SATA connectivity (SATA 6 Gbps compliant) while mounted inside the SAT2510U3REM backup system, but also provides SuperSpeed USB 3.0 connectivity (with up to 5 Gbps of data bandwidth) when used externally.

The StarTech.com Advantage

- Provides spare enclosures for the SAT2510U3REM for swapping between multiple drives
- Connects externally through USB 3.0, with up to 5 Gbps of data bandwidth for fast access to stored data
- Keeps drives protected when outside of the SAT2510U3REM bay

Key features

Number of storage drives supported: 1
Storage drive size: 2.5"
Supported storage drive interfaces: Serial ATA III
Card reader integrated: No
eSATA ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: 1
Material: Aluminium, Plastic
Data transfer rate: 6 Gbit/s
Chipset: ASMedia ASM1053, ASMedia ASM1456
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Width: 79.1 mm
Depth: 132.8 mm
Height: 15.9 mm
Weight: 120 g
Package width: 152 mm
Package depth: 188 mm
Package height: 42 mm
Package weight: 300 g
Cables included: USB
Compatible operating systems: Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit), Mac OS X (tested up to 10.8), Linux
Compliance certificates: RoHS

At a glance

Material	Aluminium, Plastic
Number of storage drives supported	1
Storage drive size	2.5"
Supported storage drive interfaces	Serial ATA III
Card reader integrated	No
Data transfer rate	6 Gbit/s
Chipset	ASMedia ASM1053, ASMedia ASM1456
Compatible operating systems	Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit), Mac OS X (tested up to 10.8), Linux

All 23 specifications

Specifications

Design

Material	Aluminium, Plastic

Storage

Number of storage drives supported	1
Storage drive size	2.5"
Supported storage drive interfaces	Serial ATA III
Card reader integrated	No

Performance

Data transfer rate	6 Gbit/s
Chipset	ASMedia ASM1053, ASMedia ASM1456

Other features

Compatible operating systems	Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit), Mac OS X (tested up to 10.8), Linux

Packaging content

Cables included	USB

Technical details

Compliance certificates	RoHS

Ports & interfaces

eSATA ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1

Weight & dimensions

Width	79.1 mm
Depth	132.8 mm
Height	15.9 mm
Weight	120 g
Package width	152 mm
Package depth	188 mm
Package height	42 mm
Package weight	300 g

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95%
