StarTech.com USB-C Audio Adapter to 3.5mm TRRS Jack
USB-C to 3.5mm TRRS Headphone/Headset Jack Audio Adapter USB Type-C Aux Dongle Hi-Fi 32-bit DAC For Laptop/Phone/Tablet Supports USB-C/Thunderbolt
- Brand: StarTech.com
- Category: Video Cables
- SKU: 6412506
- MPN: USBCAUDIO2
StarTech.com
StarTech.com 5in (12.7cm) USB-C to 3.5mm TRRS Headphone/Headset Jack…
- SKU
- CNZ-IM-043036
- MPN
- USBCAUDIO2
- Rating
- No reviews yet
Overview

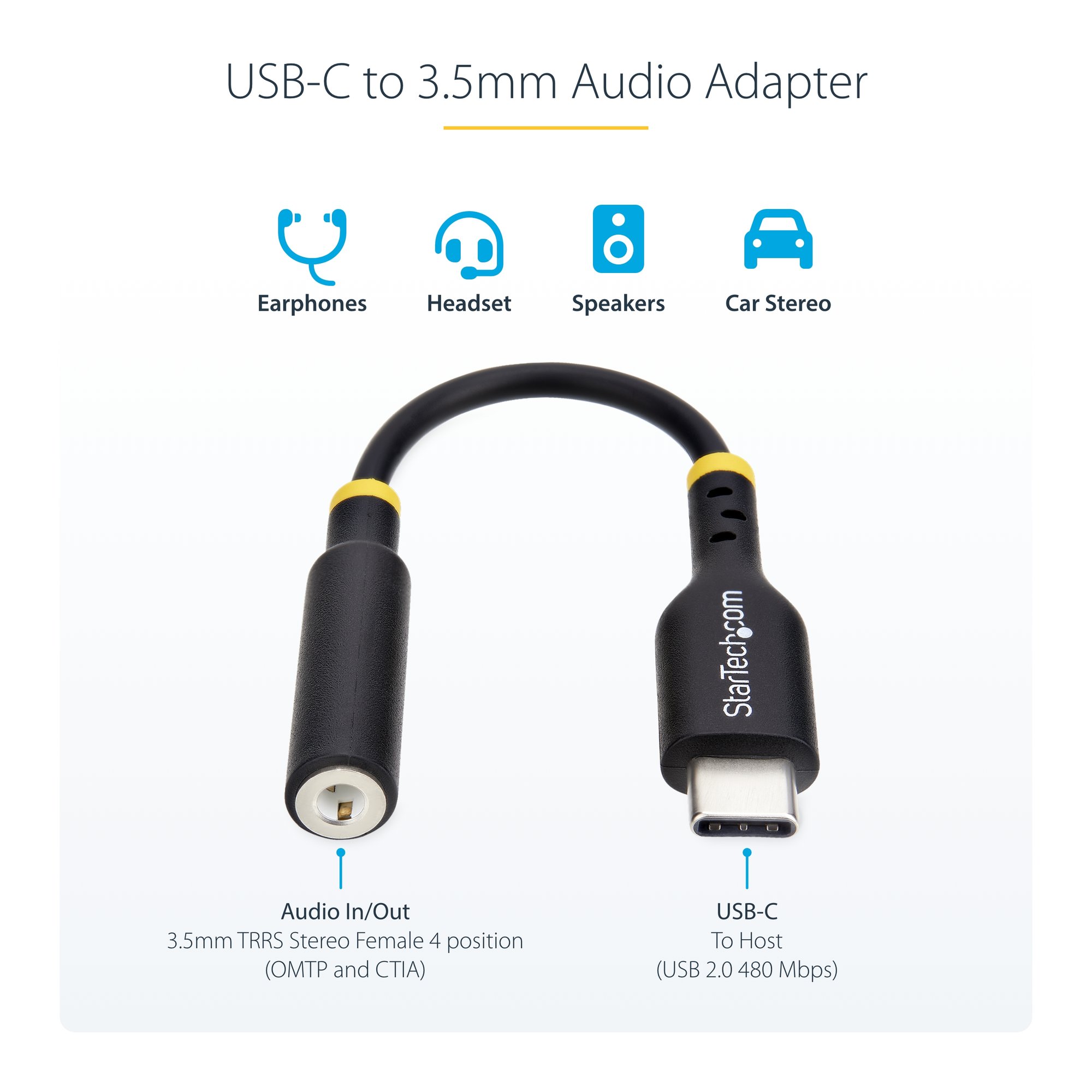

Use this audio adapter cable to add 3.5mm audio output to a USB-C device
Connect wired headphones or earphones to a USB Type-C-enabled device with this USB-C to 3.5mm audio adapter. The built-in 32-bit DAC supports stereo sound and microphone functionality via the TRRS jack for clear and immersive audio.
Superior Sound Quality
Experience excellent sound quality supporting audio ranges from 44.1 to 384kHz and 16, 24, and 32-bit sample rates, delivering a 105dBA signal-to-noise ratio for crisp and detailed output. The stereo ADC features a 94dB SNR for microphone input, with 48kHz and 16-bit sampling, all powered by the Realtek ALC4030U chipset.
Wide Compatibility

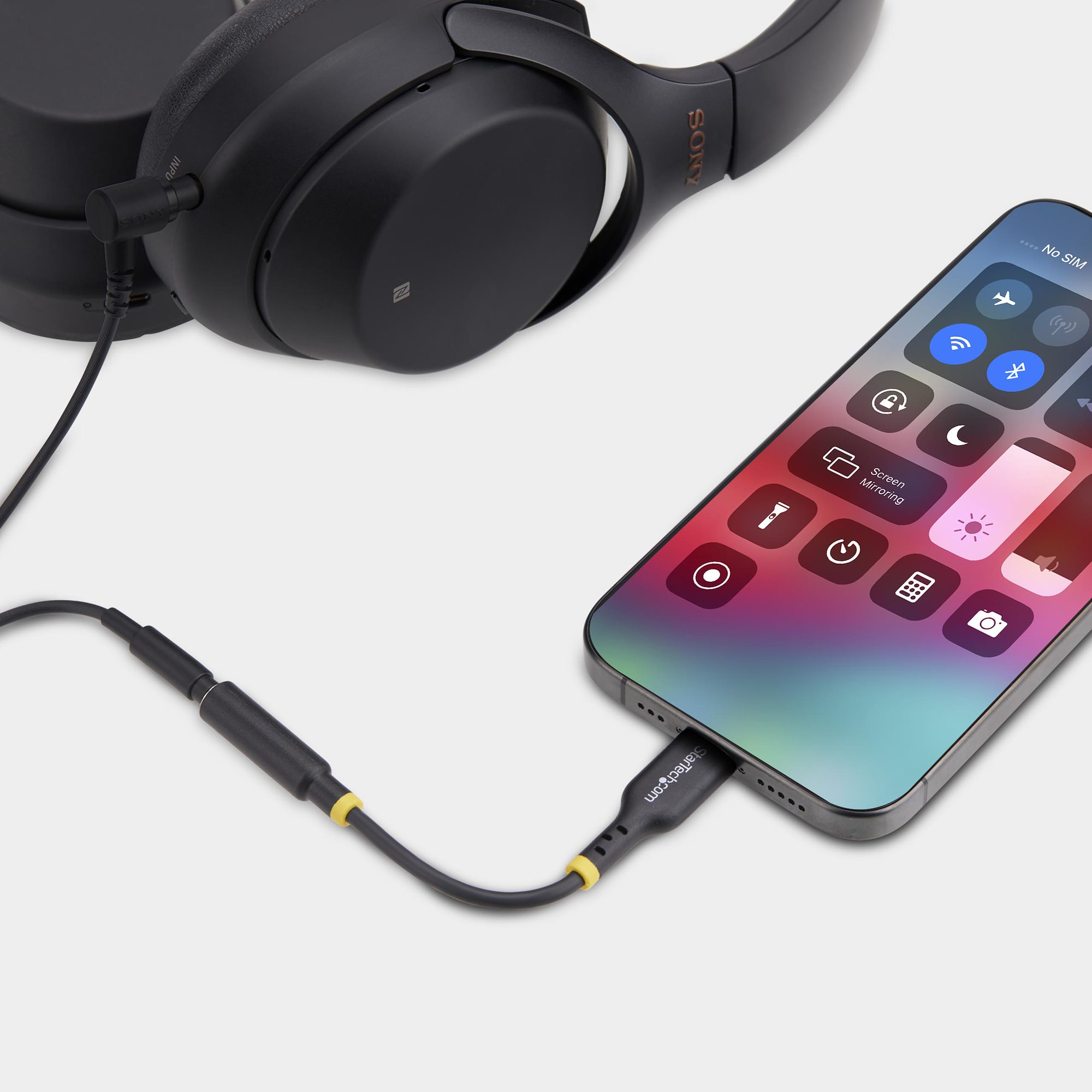

This versatile aux audio adapter is universally compatible with USB-C and Thunderbolt devices, including Windows, macOS, and Linux computers, as well as phones and tablets running iOS or Android. It supports wired headphones and headsets (including models with in-line controls), making it an ideal solution for using existing audio gear and eliminating the need for Bluetooth audio solutions.
Sleek and Portable Design

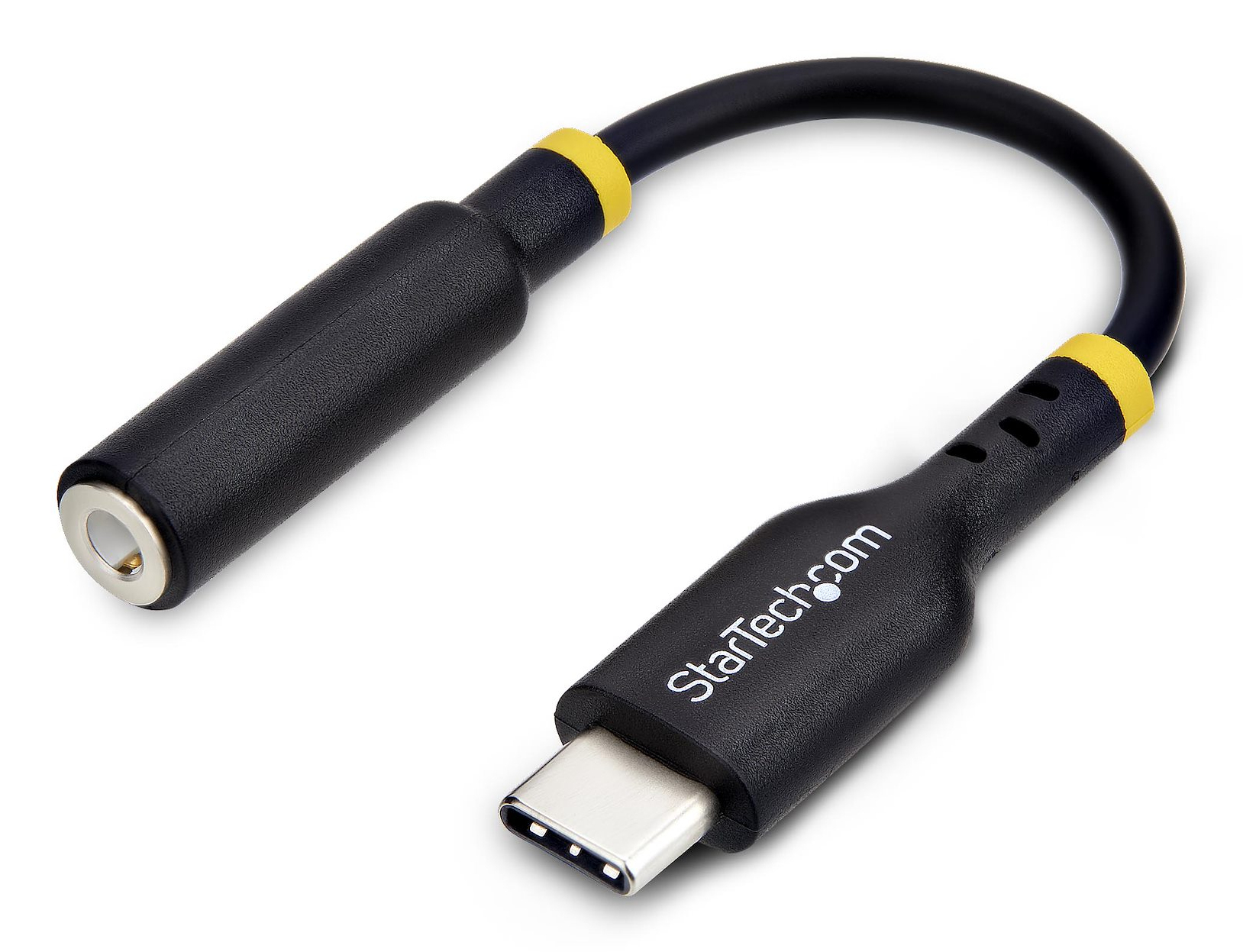

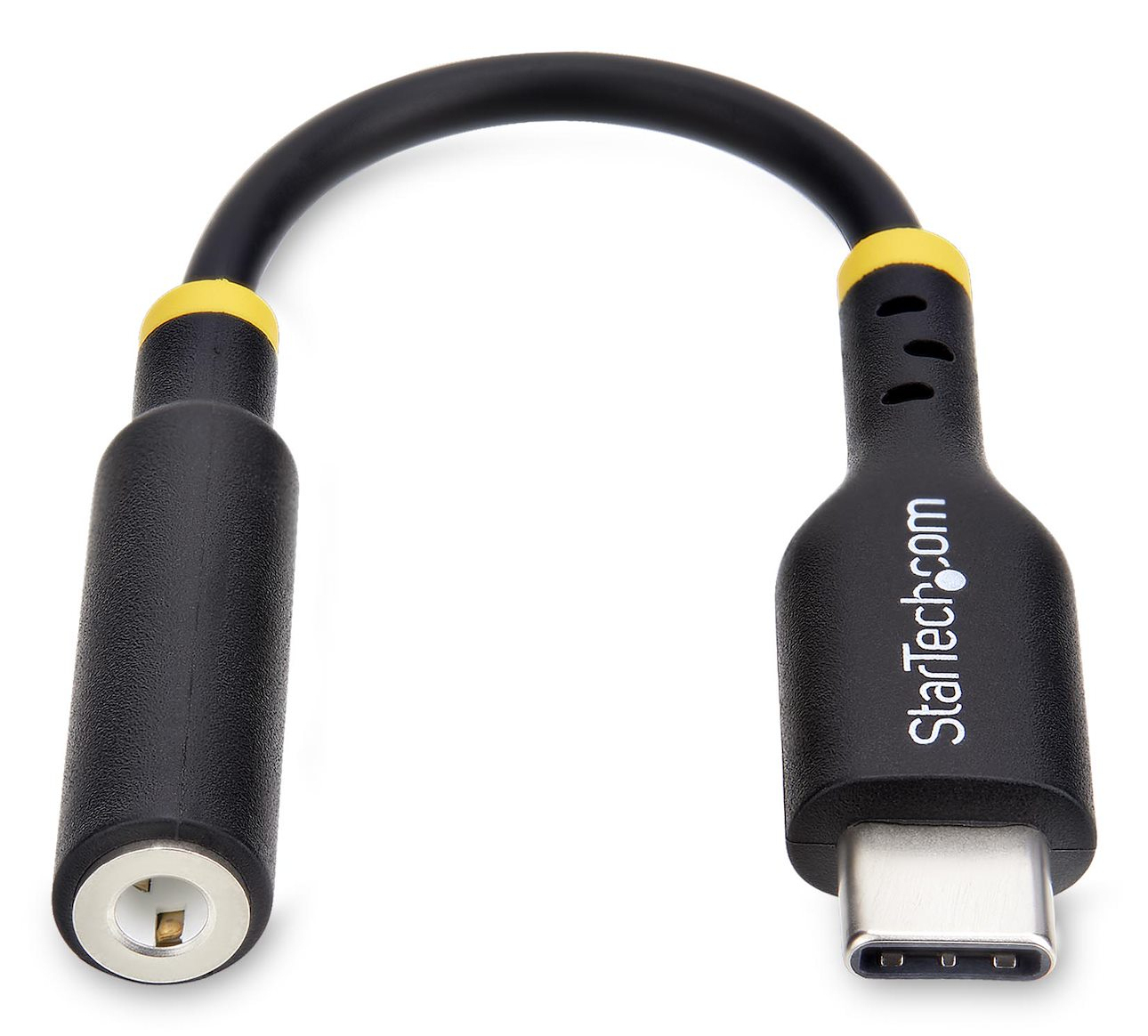

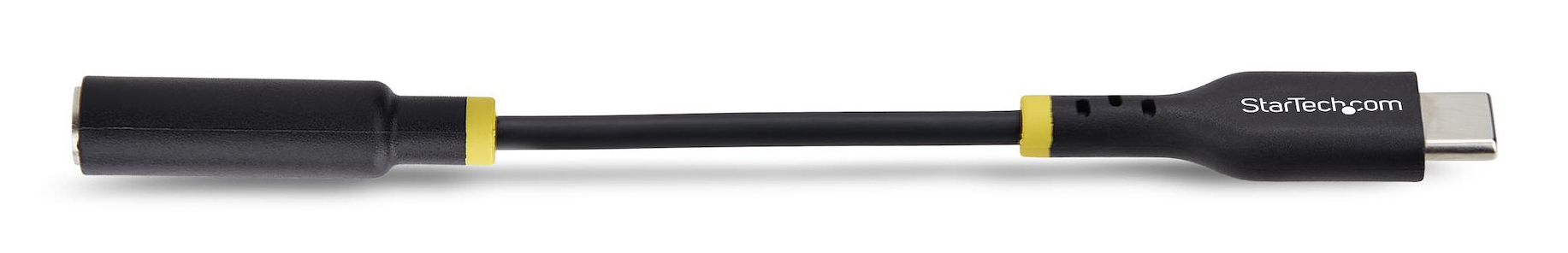

The compact, sleek adapter measures just 5 inches (127mm) and features a flexible and durable TPE jacket with a soft-touch finish. Use this adapter cable on the go or at a workstation for audio playback, recording, or calls.
The StarTech.com Advantage
Connect wired headphones or earphones to a USB Type-C-enabled device with this USB-C to 3.5mm audio adapter. The built-in 32-bit DAC supports stereo sound and microphone functionality via the TRRS jack for clear and immersive audio.
Superior Sound Quality
Experience excellent sound quality supporting audio ranges from 44.1 to 384kHz and 16, 24, and 32-bit sample rates, delivering a 105dBA signal-to-noise ratio for crisp and detailed output. The stereo ADC features a 94dB SNR for microphone input, with 48kHz and 16-bit sampling, all powered by the Realtek ALC4030U chipset.
Wide Compatibility
This versatile aux audio adapter is universally compatible with USB-C and Thunderbolt devices, including Windows, macOS, and Linux computers, as well as phones and tablets running iOS or Android. It supports wired headphones and headsets (including models with in-line controls), making it an ideal solution for using existing audio gear and eliminating the need for Bluetooth audio solutions.
Sleek and Portable Design
The compact, sleek adapter measures just 5 inches (127mm) and features a flexible and durable TPE jacket with a soft-touch finish. Use this adapter cable on the go or at a workstation for audio playback, recording, or calls.
The StarTech.com Advantage
Key features
- Cable length: 0.127 m
- Connector 1: USB Type-C 2.0
- Connector 1 gender: Male
- Connector 2: 3.5 mm
- Connector 2 gender: Female
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black
- Jacket material: Rubber
- Compliance certificates: CE, RoHS
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 85%
- Depth: 140 mm
- Weight: 5 g
- Quantity per pack: 1 pc(s)
- Package width: 220 mm
- Package depth: 125 mm
- Package height: 10 mm
- Package weight: 15 g
- Width: 12 mm
- Height: 8.6 mm
- Export Control Classification Number (ECCN): EAR99
- Master (outer) case width: 500 mm
Specifications
Features
| Cable length | 0.127 m |
|---|---|
| Connector 1 | USB Type-C 2.0 |
| Connector 1 gender | Male |
| Connector 2 | 3.5 mm |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Jacket material | Rubber |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Export Control Classification Number (ECCN) | EAR99 |
|---|---|
| Master (outer) case width | 500 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 350 pc(s) |
Other features
| Width | 12 mm |
|---|---|
| Height | 8.6 mm |
Packaging data
| Package width | 220 mm |
|---|---|
| Package depth | 125 mm |
| Package height | 10 mm |
| Package weight | 15 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Depth | 140 mm |
|---|---|
| Weight | 5 g |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
