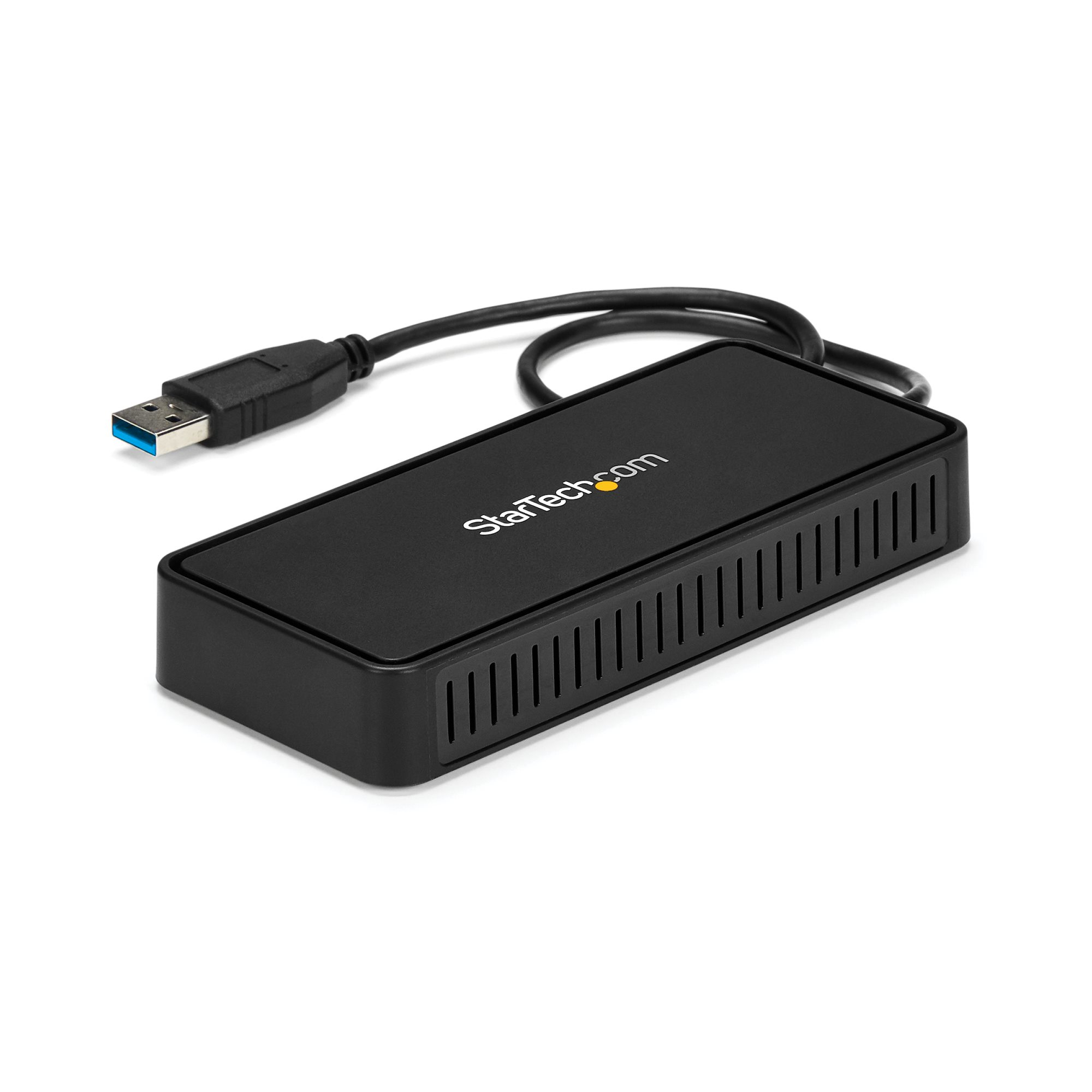

StarTech.com USB to Dual DisplayPort Mini Dock - 4K
USB to Dual DisplayPort Mini Docking Station - 4K - GbE - USB 3.0 - Dual Monitor Docking Station - DisplayPort Hub - Multi Monitor Adapter - Mini Dock - USB 3.0 to Ethernet Adapter
- Brand: StarTech.com
- Category: Notebook Accessories
- SKU: 3995693
- MPN: USBA2DPGB
StarTech.com
StarTech.com USB 3.0 Mini Dock - Dual Monitor USB-A Docking Station…
- SKU
- CNZ-IM-043946
- MPN
- USBA2DPGB
- Rating
- No reviews yet
Overview
Portable Docking Station | USB 3.0 | Mac & Windows® | TAA Compliant
This USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.
Increase Your Productivity with Two 4K Monitors
The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.
Access Hardwired Networks with a GbE Port
Ethernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn’t have an Ethernet port.
Maximize Portability with a Miniature Docking Station
The dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.
The USBA2DPGB is TAA compliant and backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
This USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.
Increase Your Productivity with Two 4K Monitors
The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.
Access Hardwired Networks with a GbE Port
Ethernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn’t have an Ethernet port.
Maximize Portability with a Miniature Docking Station
The dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.
The USBA2DPGB is TAA compliant and backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- DisplayPorts quantity: 2
- Microphone in: No
- DC-in jack: No
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Wake-on-LAN ready: Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- Card reader integrated: No
- Data transfer rate: 5 Gbit/s
- Maximum digital resolution: 4096 x 2160 pixels
- Number of displays supported: 2
- Product colour: Black
- UASP support: No
- Brand compatibility: Any brand
- Certification: CE, FCC, TAA
- Power source type: USB
- Wireless charging: No
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64
- Mac compatibility: Yes
Specifications
Power
| Power source type | USB |
|---|---|
| Wireless charging | No |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Software
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64 |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
Performance
| Card reader integrated | No |
|---|---|
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
| Product colour | Black |
| UASP support | No |
| Brand compatibility | Any brand |
| Certification | CE, FCC, TAA |
Logistics data
| Products per master (outer) case | 20 pc(s) |
|---|---|
| Master (outer) case width | 220 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 255 mm |
| Harmonized System (HS) code | 84733020 |
Other features
| Cable length | 0.14 m |
|---|---|
| Chipset | DisplayLink - DL-6950 |
Packaging data
| Package width | 200 mm |
|---|---|
| Package depth | 114 mm |
| Package height | 38 mm |
| Package weight | 215 g |
Packaging content
| Quick start guide | Yes |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| DC-in jack | No |
Weight & dimensions
| Width | 58 mm |
|---|---|
| Depth | 130 mm |
| Height | 20 mm |
| Weight | 126 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Questions
$80.49inc GST
