StarTech.com 8.3ft (2.5m) 1-Port FTDI USB to Serial RS232 Adapter…

SKU: CNZ-IM-021709
MPN: ICUSB2321FIS
Rating: No reviews yet

StarTech.com USB to Serial Adapter Cable w/ Isolation — StarTech.com

Overview

Add an RS232 serial port with circuit isolation to your laptop or desktop computer, through USB

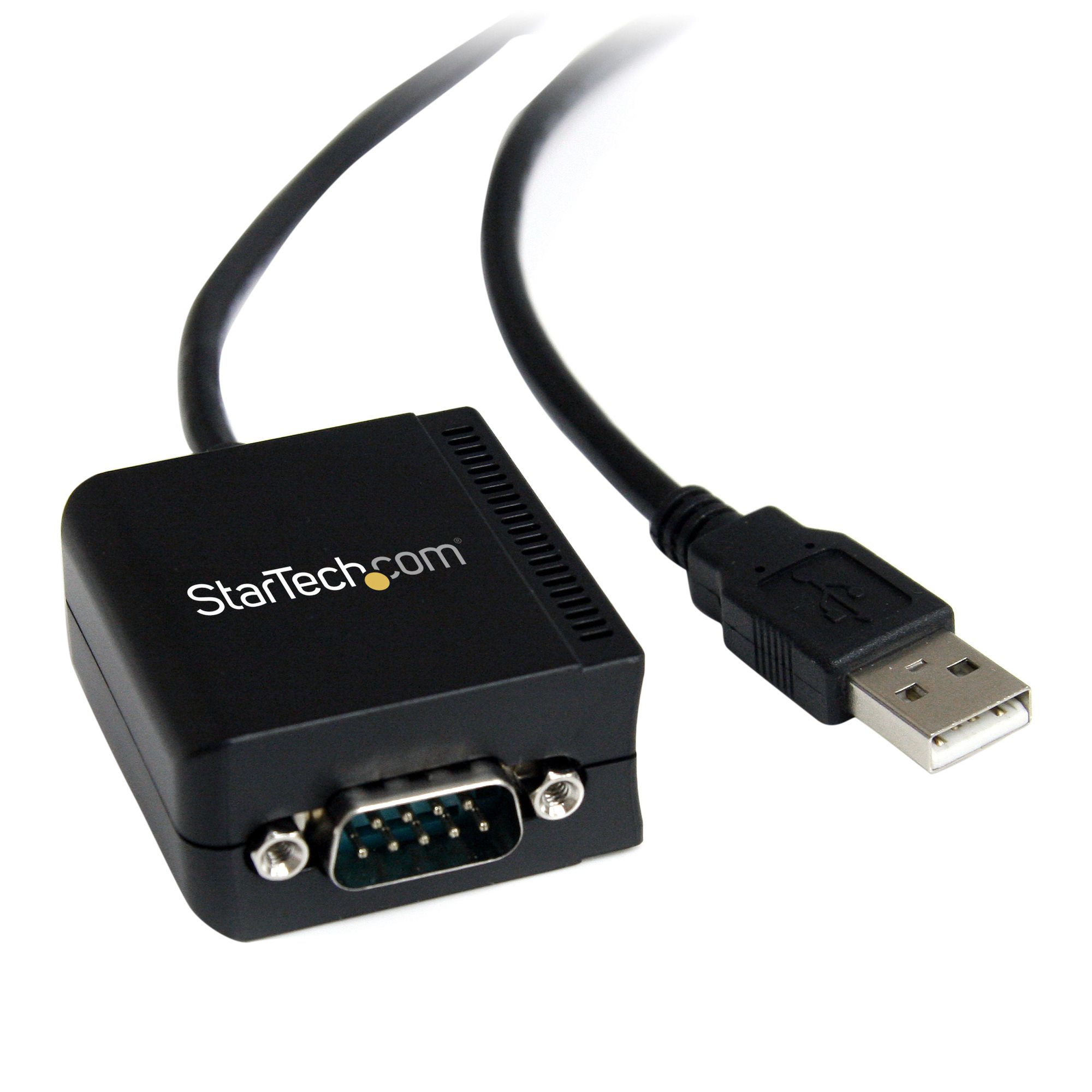

The ICUSB2321FIS 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation converts an available USB 1.1 or 2.0 port into an RS232 DB9 port that can be used to connect, monitor and control your serial devices.
The USB to serial adapter features integrated optical isolation circuits and surge protection to protect your critical, sensitive control equipment against electrical damage, making it a viable solution for costly industrial serial devices.
The versatile FTDI chipset also supports COM retention, additional customization/features, and compatibility not offered by most other solutions. Broad operating system compatibility including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

Connector 1: DB-9
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Male
Cable length: 2.5 m
Product colour: Black
Housing material: Plastic
USB required: Yes
Chipset: FTDI - FT232RL
Data bits: 7, 8
Stop bits: 1, 2
Baud rate: 921.6 Kbit/s
Parity bit: Even, Mark, No, Odd, Space
Isolation: 2500 kV
FIFO (First In, First Out): 256 B
Compatible operating systems: Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Relative humidity: 5 - 95%
Compliance certificates: CE, RoHS
Certification: CE, FCC, Microsoft WHQL
Sustainability compliance: Yes
Width: 40 mm
Depth: 2400 mm

Specifications

Performance

Product colour	Black
Housing material	Plastic
USB required	Yes
Chipset	FTDI - FT232RL
Data bits	7, 8
Stop bits	1, 2
Baud rate	921.6 Kbit/s
Parity bit	Even, Mark, No, Odd, Space
Isolation	2500 kV
FIFO (First In, First Out)	256 B
Compatible operating systems	Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+

Certificates

Compliance certificates	CE, RoHS
Certification	CE, FCC, Microsoft WHQL

Logistics data

Products per master (outer) case	50 pc(s)
Master (outer) case width	450 mm
Master (outer) case length	525 mm
Master (outer) case height	336 mm

Other features

Gross weight (imperial)	0.2 kg (0.44 lbs)

Packaging data

Package width	105 mm
Package depth	72 mm
Package height	20 mm
Package weight	222 g

Sustainability

Sustainability compliance	Yes

Packaging content

Manual	Yes
Drivers included	Yes

Ports & interfaces

Connector 1	DB-9
Connector 2	USB A
Connector 1 gender	Male
Connector 2 gender	Male
Cable length	2.5 m

Weight & dimensions

Width	40 mm
Depth	2400 mm
Height	20 mm
Weight	86 g

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Relative humidity	5 - 95%

Questions
